Folga radial interna
Folga radial interna normal - Cn
Precisão
Precisão standard
Estabilização térmica
Sem estabilização térmica - temperaturaa até 120 °C
Dados da Schaeffler (medias)
Largura (b) mm
42
Fator de carga radial estática C0r (N)
680000
Fator de carga radial dinâmica Cr (N)
455000
Fator de carga estática básica, radial (C 0r)
"680000.0000"
Velocidade limite (n G)
1720
Velocidade de referência (n ϑr)
1150
Número ECLASS
23-05-09-01
Número ECLASS2
23-05-09-01
Descrição do Medias
Cylindrical roller bearing SL18, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18
Descrição do sufixo
BThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

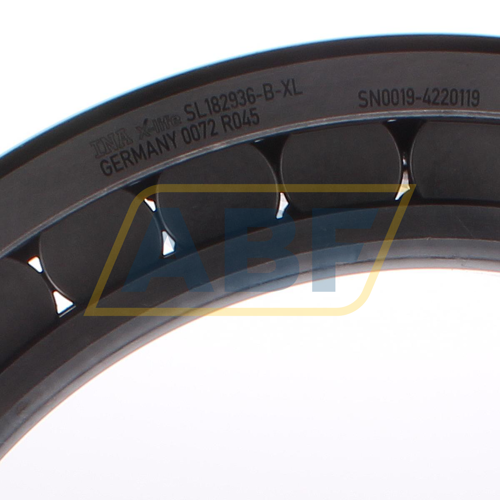

The SL182936-B-XL INA is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.
The SL182936-B-XL INA is an X-life type cylindrical roller bearing. X-life bearings provide better performance than normal cylindrical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal cylindrical roller bearings.
