Name: SL182216-A INA
Brand: INA

Especificações

Disponibilidade 4 unid.
Marca INA
Número do artigo SL182216-A INA
Manufacturer Part Number 0000579670000
Também conhecido como NCF2216V
EAN 4012802422238
Categoria Rolamento de rolos cilíndricos

Peso e dimensões

Interno (d) mm 80
Externo (D) mm 140
Largura (B) mm 33
Interno (d) polegadas 3.1496
Externo (D) polegadas 5.5118
Largura (B) polegadas 1.2992
Peso (kg) 2.15

Características do produto

Furo C - furo cilíndrico
Vedação Sem vedação
Tipo de gaiola FC - sem gaiola (full comnplement)
Modificação externa Sem modificação externa
Folga radial interna Folga radial interna normal - Cn
Precisão Precisão standard
Estabilização térmica Sem estabilização térmica - temperaturaa até 120 °C

Dados da Schaeffler (medias)

Largura (b) mm 33
Fator de carga radial estática C0r (N) 280000
Fator de carga radial dinâmica Cr (N) 223000
Fator de carga estática básica, radial (C 0r) "280000.0000"
Velocidade limite (n G) 3000
Velocidade de referência (n ϑr) 2040
Número ECLASS 23-05-09-01
Número ECLASS2 23-05-09-01
Descrição do Medias Cylindrical roller bearing SL1822..-A, full complement roller set, single row, semi-locating bearing, 1 rib on outer ring, 2 ribs on inner ring, type SL18

Descrição do sufixo

A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Transferências e Links

Link to manufacturer

Descrição do produto

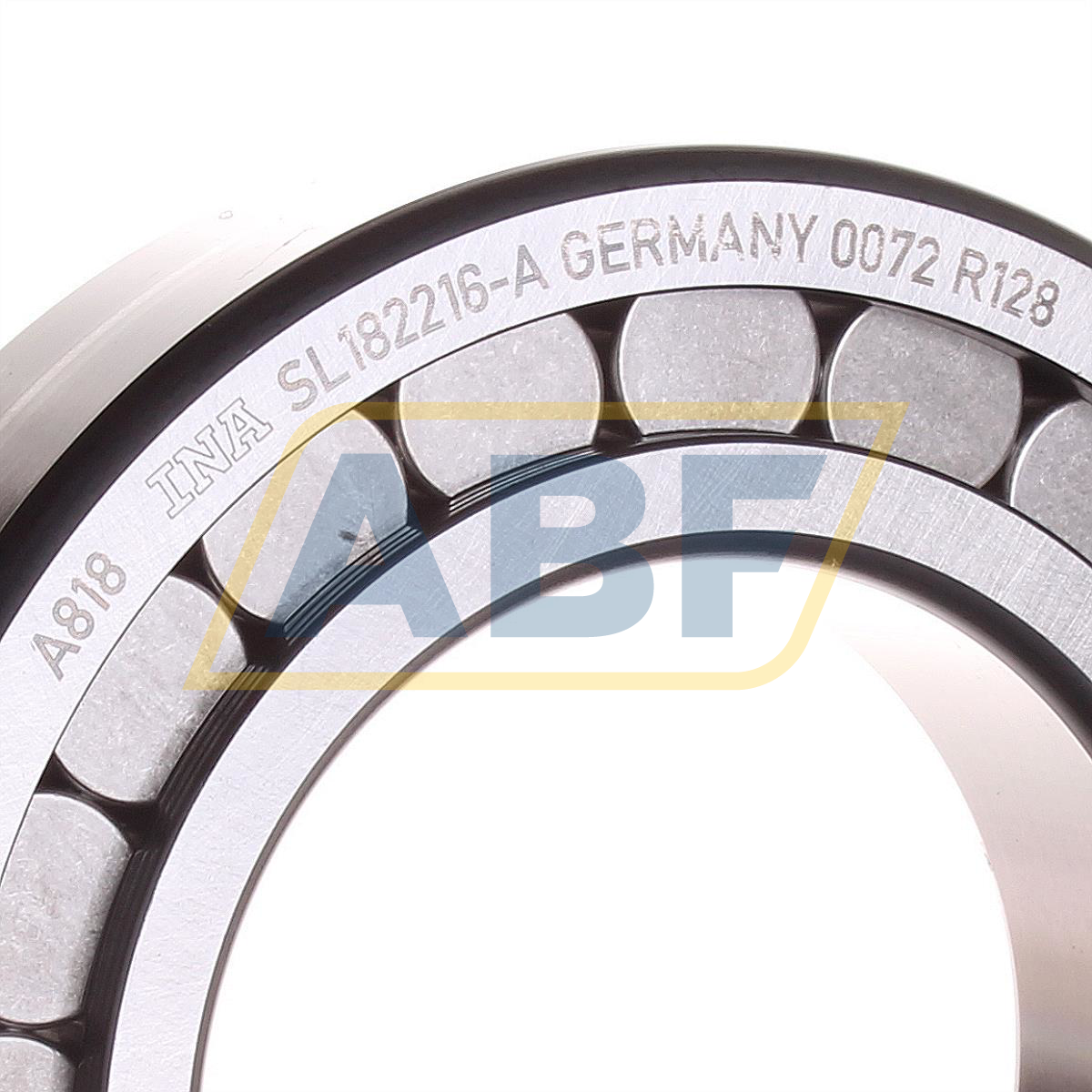

The SL182216-A INA is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.

SL182216-A INA

Single-row full-complement cylindrical roller bearing
