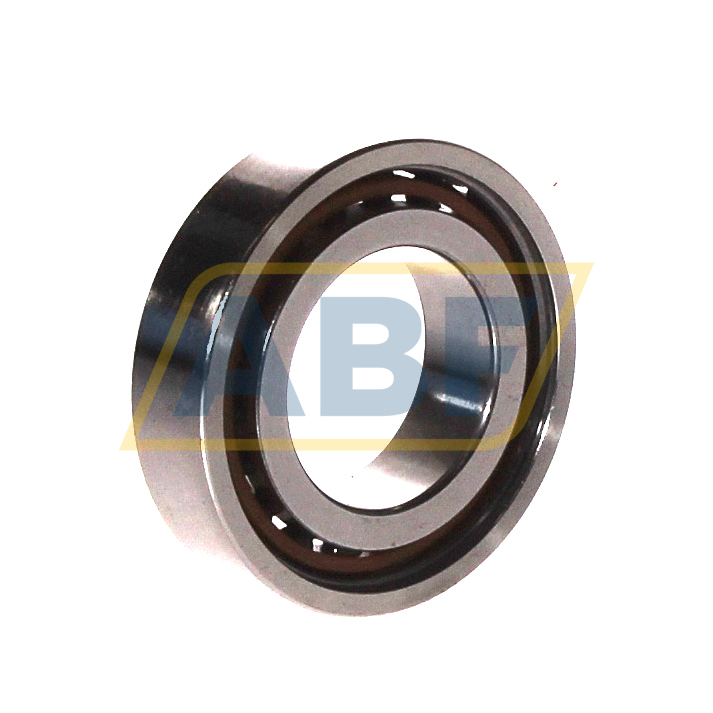

HC71904-C-T-P4S-UL FAG

HC hybrid spindle bearing with small ceramic balls without seals

HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG
HC71904-C-T-P4S-UL FAG

2 unid. em stock

  • Este produto está disponível em estoque
  • Expedição até às 18:00 CET nos dias úteis
  • Pagamento por fatura possível
  • Rastreie seu pedido com rastreamento
  • Distribuidor oficial da Schaeffler
A carregar equivalentes

Especificações

Peso e dimensões

Características do produto

Dados da Schaeffler (medias)

Descrição do sufixo

Transferências e Links

Descrição do produto

The HC71904-C-T-P4S-UL FAG is a high-speed design hybrid spindle bearing. This bearing type without seals has small ceramic balls. Hybrid spindle bearings can reach very high speeds with very little heat generation and wear. Even at very high speeds, a high degree of rigidity is maintained. This makes the HC71904-C-T-P4S-UL FAG particularly suitable for use in high-speed- or grinding spindles.

FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.

In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.
