Vedação
2RS - vedação de borracha em ambos os lados
Material de contato
Aço sobre PTFE
Dados da Schaeffler (medias)
Diâmetro externo do rolamento (D) mm
130
Fator de carga radial estática C0r (N)
2300000
Largura do anel interno (B) mm
75
Fator de carga radial dinâmica Cr (N)
1380000
Fator de carga estática básica, radial (C 0r)
"2300000.0000"
Número ECLASS
23-05-01-06
Número ECLASS2
23-05-01-06
Descrição do Medias
Radial spherical plain bearing, maintenance-free, sliding layer: ELGOGLIDE, inner ring curved surface with hard chromium coating, DIN ISO 12240-1, dimension series G, sealed
Descrição do sufixo
FWSliding Contact Surface Hard Chromium/PTFE (Polyetrafluoroethylene) Composite, Wide Inner Ring
2RSLip Seals On Both Sides
ASchaeffler Internal Code, No Technical Meaning (Can Be Used As Standard)

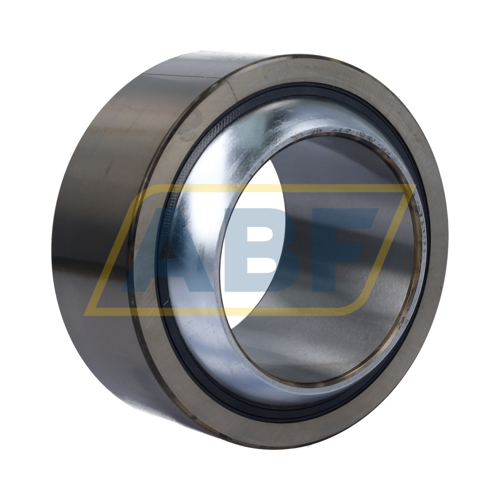

The GE80-FW-2RS-A INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE80-FW-2RS-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.
