Name: GE40-SX INA
Brand: INA

Especificações

Disponibilidade 4 unid.
Marca INA
Número do artigo GE40-SX INA
Manufacturer Part Number 0066542660000
EAN 4012802534696
Categoria Rótulas

Peso e dimensões

Interno (d) mm 40
Externo (D) mm 68
Largura (B) mm 19
Interno (d) polegadas 1.5748
Externo (D) polegadas 2.6772
Largura (B) polegadas 0.748
Peso (kg) 0.33

Características do produto

Vedação Sem vedação
Material de contato Aço sobre aço

Dados da Schaeffler (medias)

Diâmetro externo do rolamento (D) mm 68
Altura (T) mm 19
Fator de carga radial estática C0r (N) 454000
Fator de carga radial dinâmica Cr (N) 90800
Fator de carga estática básica, radial (C 0r) "454000.0000"
Número ECLASS 23-05-01-06
Número ECLASS2 23-05-01-06
Descrição do Medias Angular contact spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-2, open design

Descrição do sufixo

SX Angular Contact Spherical Plain Bearing Requiring Maintenance To Iso 12 2402, Mounting Dimensions As For Tapered Roller Bearings To Din 720, 320X, Sliding Contact Surface Steel/Steel

Transferências e Links

Link to manufacturer

Descrição do produto

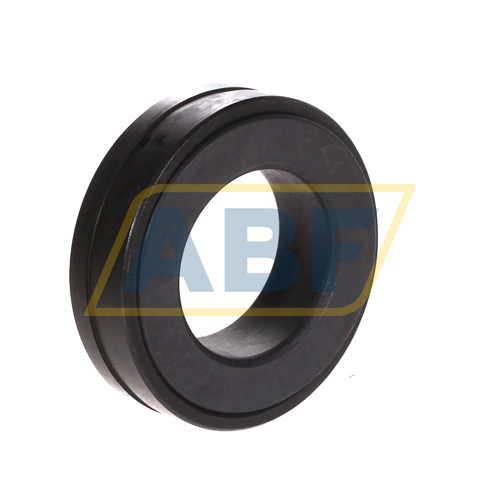

The GE40-SX INA is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The GE40-SX INA has a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

GE40-SX INA

Spherical plain bearing
