Especificações
Disponibilidade2 unid.
MarcaFAG

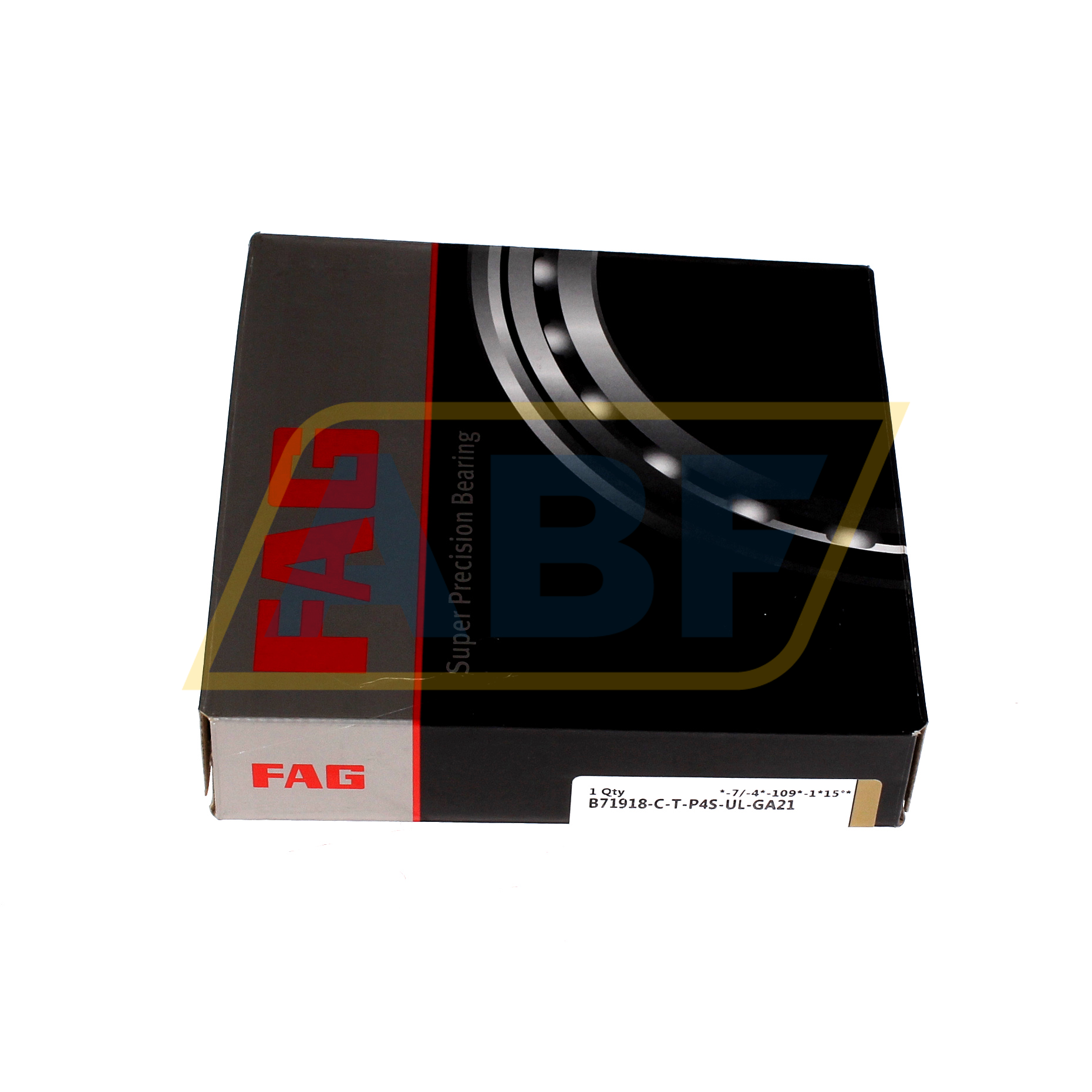

Número do artigoB71918-C-T-P4S-UL-GA21 FAG
Manufacturer Part Number0191546403821
EAN4012802565799
CategoriaRolamento de esferas de contato angular
Peso e dimensões
Externo (D) mm
125
Largura (B) mm
18
Largura (B) polegadas
0.7087
Peso (kg)
0.56
Características do produto
Vedação
Sem vedação
Tipo de gaiola
TB - gaiola reforçada de fibra
Precisão
Precisão P4S (maior que P4)
Ângulo de contato
15 graus
Pareamento
G - montagem universal
Folga axial interna / pré-carga
UL - execução universal para montagem aos pares, o par de rolamentos tem uma leve pré-carga nas disposições em O ou em X
Lubrificação
Lubrificação standard
Descrição do sufixo
C15° Or 17° Contact Angle
TTextile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4SBoundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
ULSingle Bearing, Universal, Light Preload
GA21Contains Two Heavy-Duty Greases, L75 And L252, That Are Ideally Suited For Bearings Operating In Machine Tool Spindles
Descrição do produto
The B71918-C-T-P4S-UL-GA21 FAG is a classic spindle bearing with standardized dimensions and large steel balls. This bearing type combines high load carrying capacity with high rigidity and is suitable for medium speed applications.
FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.
In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.
