Folga axial interna / pré-carga
UM - execução universal para montagem aos pares, o par de rolamentos tem uma média pré-carga nas disposições em O ou em X
Lubrificação
Lubrificação standard
Dados da Schaeffler (medias)
Largura (b) mm
20
Fator de carga estática básica, radial (C 0r)
29000
Velocidade limite para lubrificação com graxa (n G Graxa)
11000
Velocidade limite para lubrificação a óleo (n G Óleo)
18000
Número ECLASS
23-05-08-03
Número ECLASS2
23-05-08-03
Descrição do sufixo
E25° Contact Angle
TTextile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
P4S-K5Combination Of P4S (Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9) And K5 (Same as P4S But With Mean Sorting Of Bore And Outside Diameter)

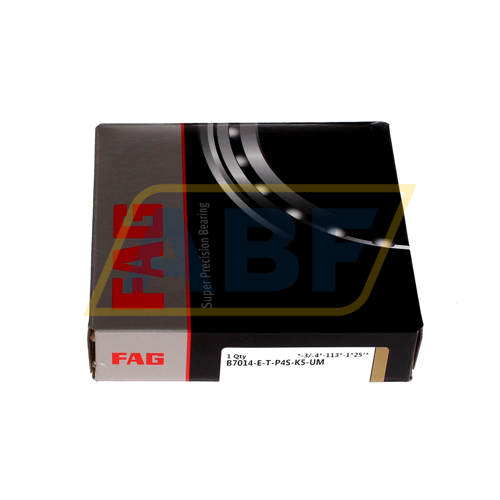

The B7014-E-T-P4S-K5-UM FAG is a classic spindle bearing with standardized dimensions and large steel balls. This bearing type combines high load carrying capacity with high rigidity and is suitable for medium speed applications.
FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.
In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.
