CategoriaGruppo costruttivo gabbia dei rulli cilindrici
Peso e dimensioni
Interno (d) MM
20
Esterno (D) mm
35
Larghezza (B) MM
4,5
Interno (d) pollici
0.7874
Esterno (D) pollici
1.378
Larghezza (B) pollici
0.1772
Peso (kg)
0.0084
Proprietà del prodotto
Tipo di gabbia
P - Gabbia di plastica stampata
Precisione
Precisione standard
Dati di Schaeffler (medias)
Diametro esterno della gabbia (D c) mm
35
Axial Static Load Rating C0a (N)
53000
Axial Dynamic Load Rating Ca (N)
25000
Velocità limite (n G)
10800
Velocità di riferimento (n ϑr)
4500
ECLASS number
23-05-11-90
ECLASS2 number
23-05-11-90
Descrizione dei Medias

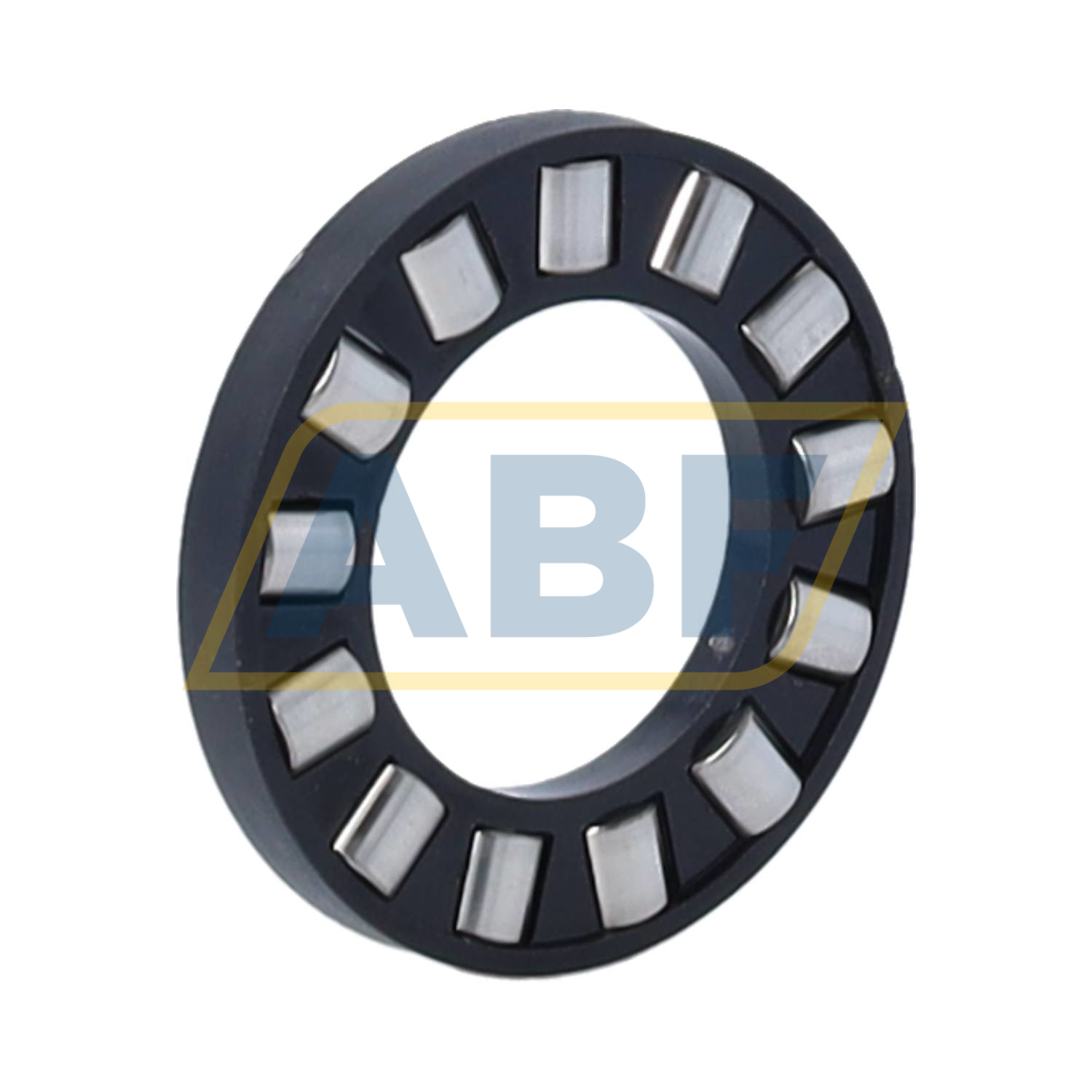

Axial cylindrical roller and cage assembly K811, single direction, suitable for combination with axial bearing washers
Descrizione del suffisso
TNSolid Cage Of Glass-Fibre Reinforced Polyamide, Ball Riding
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
