Specifications

• Availability 0 pcs
• Brand Bonfiglioli

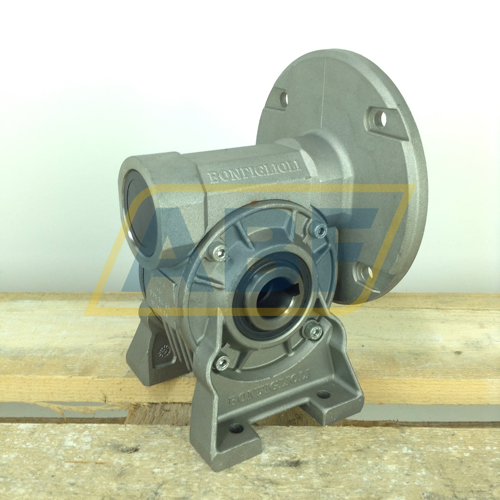

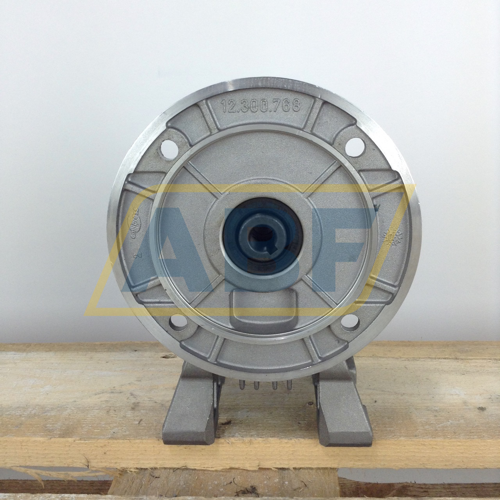

• Item Number VF49AP71B5-I45 Bonfiglioli
• Category Gearboxes

Weight and Dimensions

• Weight (kg) 3.2

Product Properties

• Mounting B5 (outer flange)
• Gear ratio i = n1/n2 45
• IEC Framesize 71

Detailed Product Properties

• IEC Framesize 71
• Shaft diameter (mm) 14
• Shaft height IEC in JDE 071
• Shaft length (mm) 30
• Shaft key width (mm) 5
• Shaft key length (mm) 22
• Thread shaft bore M5
• Shaft height, B3 mounted (mm) 71
• Width foot holes, B3 mounted (mm) 112
• Length foot holes, B3 mounted (mm) 90
• Diameter foot holes (mm) 7
• Outer diameter flange B5/V1/B35/V3 (mm) 160
• Spigot B5/V1/B35/V3 (mm) 110
• Pitch circle diameter B5/V1/B35/V3 (mm) 130
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 10
• Pitch circle diameter B14/B34/V18/V19 (mm) 85
• Thread flange holes B14/B34/V18/V19 M6
• Outer diameter flange B14/B34/V18/V19 (mm) 105
• Spigot B14/B34/V18/V19 (mm) 70
