Home › 3-Phase Motors › U-DA63SF-D-B5 Brook Crompton

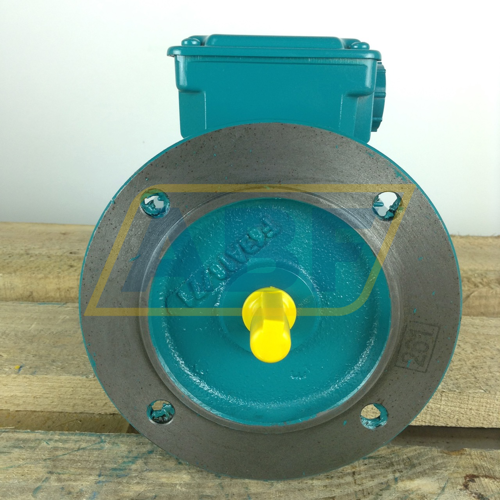

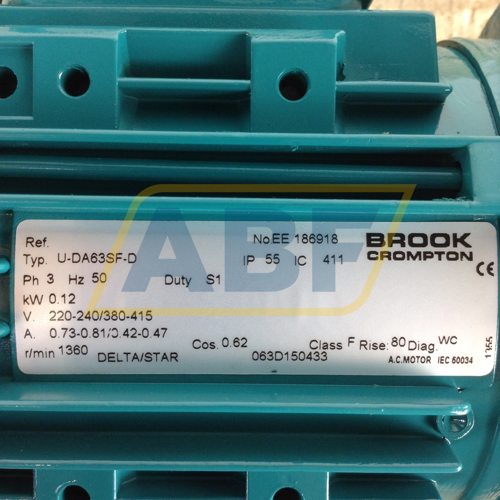

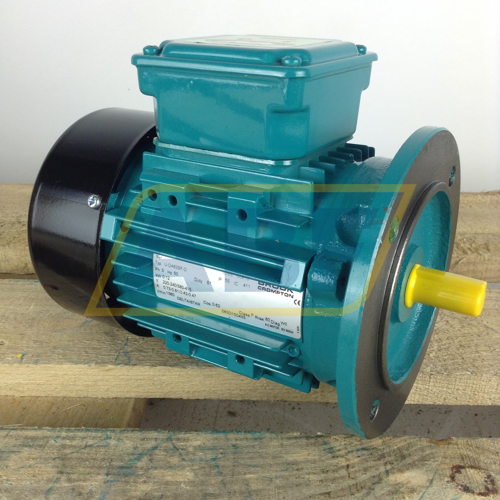

U-DA63SF-D-B5 Brook Crompton

63-4P 0,12kW 230/400V B5 AL

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

U-DA63SF-D-B5 Brook Crompton

1 pc in stock

This product is available from stock
Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace

Loading equivalents

Specifications

Availability 1 pc
Brand Brook Crompton
Item Number U-DA63SF-D-B5 Brook Crompton
Category 3-Phase Motors

Weight and Dimensions

Weight (kg) 5.2

Product Properties

Rated power (kW) 0.12
Speed at 50Hz (rpm) 1500 / 4-Poles
Frequency 50/60 Hz
Energy efficiency Not applicable
Mounting B5 (outer flange)
Brake No Brake
IP Class IP55
Explosion safety (Atex) No protection
IEC Framesize 63

Detailed Product Properties

Voltage 220-230VD / 380-400VY
IEC Framesize 63
Shaft diameter (mm) 11
Housing material Alu
AC/DC AC
Standard IEC
Shaft height IEC in JDE 063
Shaft length (mm) 23
Shaft key width (mm) 4
Shaft key length (mm) 16
Thread shaft bore M4
Shaft height, B3 mounted (mm) 63
Width foot holes, B3 mounted (mm) 100
Length foot holes, B3 mounted (mm) 80
Diameter foot holes (mm) 7
Outer diameter flange B5/V1/B35/V3 (mm) 140
Spigot B5/V1/B35/V3 (mm) 95
Pitch circle diameter B5/V1/B35/V3 (mm) 115
Number of flange holes 4
Diameter flange holes B5/V1/B35/V3 (mm) 10
Pitch circle diameter B14/B34/V18/V19 (mm) 75
Thread flange holes B14/B34/V18/V19 M5
Outer diameter flange B14/B34/V18/V19 (mm) 90
Spigot B14/B34/V18/V19 (mm) 60
