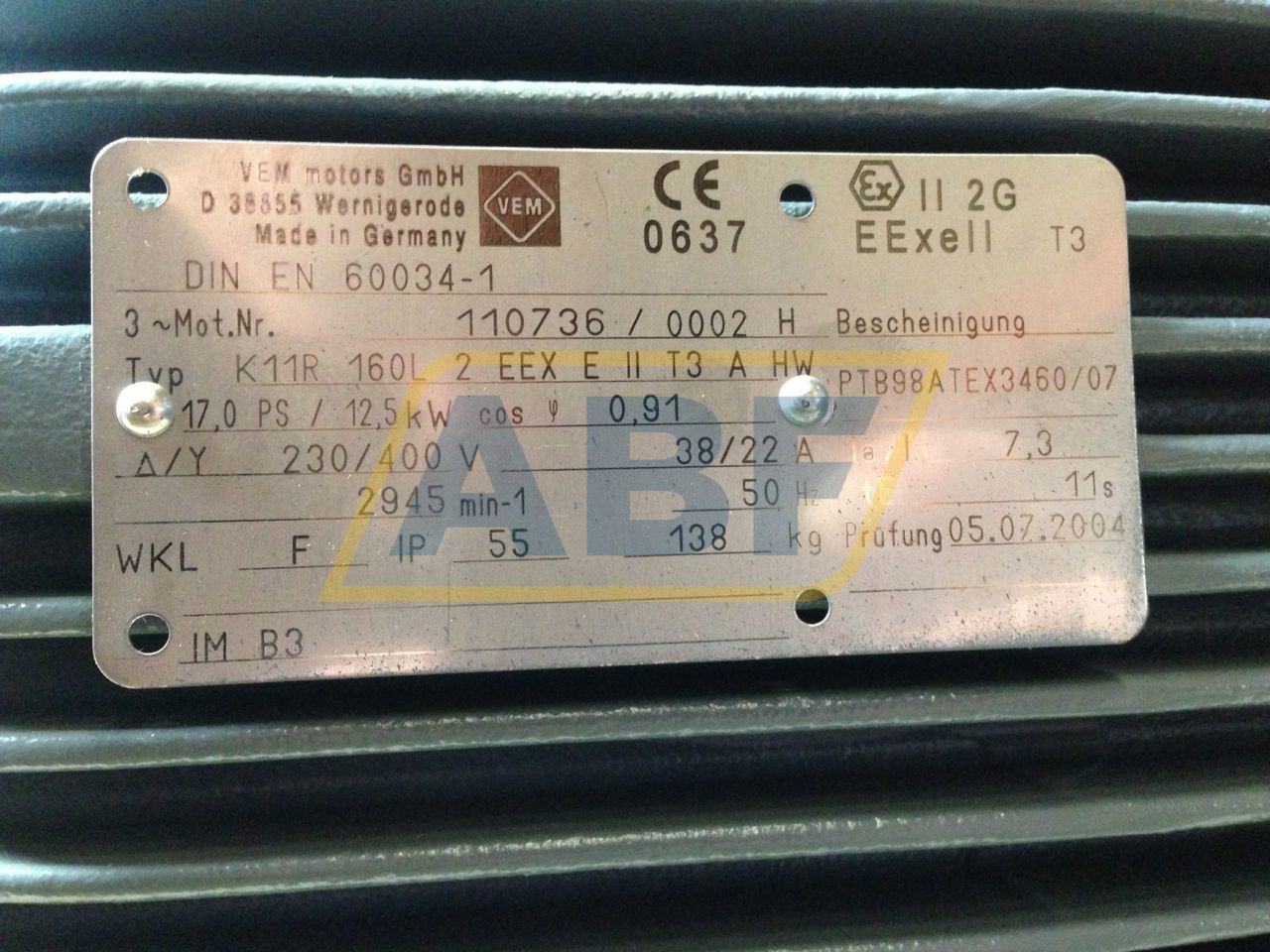

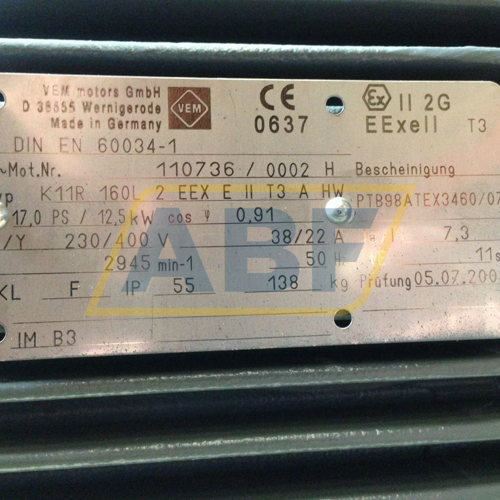

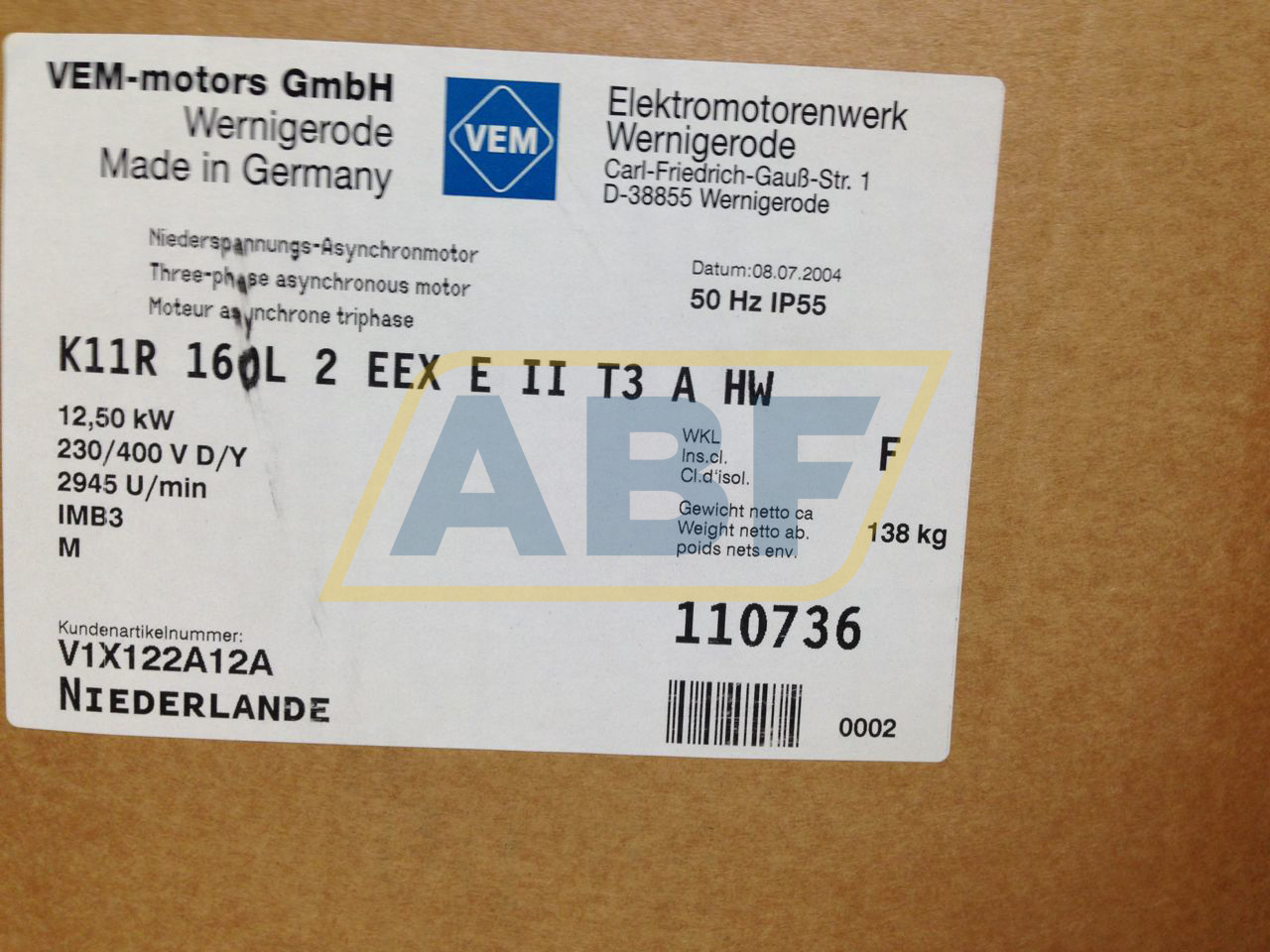

Specifications

• Availability 0 pcs
• Brand VEM
• Item Number K11R160L2EEB3 VEM
• Category Atex Motors

Weight and Dimensions

• Weight (kg) 138

Product Properties

• Rated power (kW) 12
• Speed at 50Hz (rpm) 3000 / 2-Poles
• Frequency 50/60 Hz
• Energy efficiency IE1 = standard = EFF2
• Mounting B3 / 1M1001 (foot)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) Zone 1 and 2
• IEC Framesize 160

Detailed Product Properties

• Voltage 220-230VD / 380-400VY
• IEC Framesize 160
• Shaft diameter (mm) 42
• Housing material Cast Iron
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 160
• Shaft length (mm) 110
• Shaft key width (mm) 12
• Shaft key length (mm) 90
• Thread shaft bore M16
• Shaft height, B3 mounted (mm) 160
• Width foot holes, B3 mounted (mm) 254
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 15
• Outer diameter flange B5/V1/B35/V3 (mm) 350
• Spigot B5/V1/B35/V3 (mm) 250
• Pitch circle diameter B5/V1/B35/V3 (mm) 300
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 18.5
• Pitch circle diameter B14/B34/V18/V19 (mm) 215
• Thread flange holes B14/B34/V18/V19 M12
• Outer diameter flange B14/B34/V18/V19 (mm) 250
• Spigot B14/B34/V18/V19 (mm) 180
