Specifications

• Availability 0 pcs
• Brand Dutchi Motors

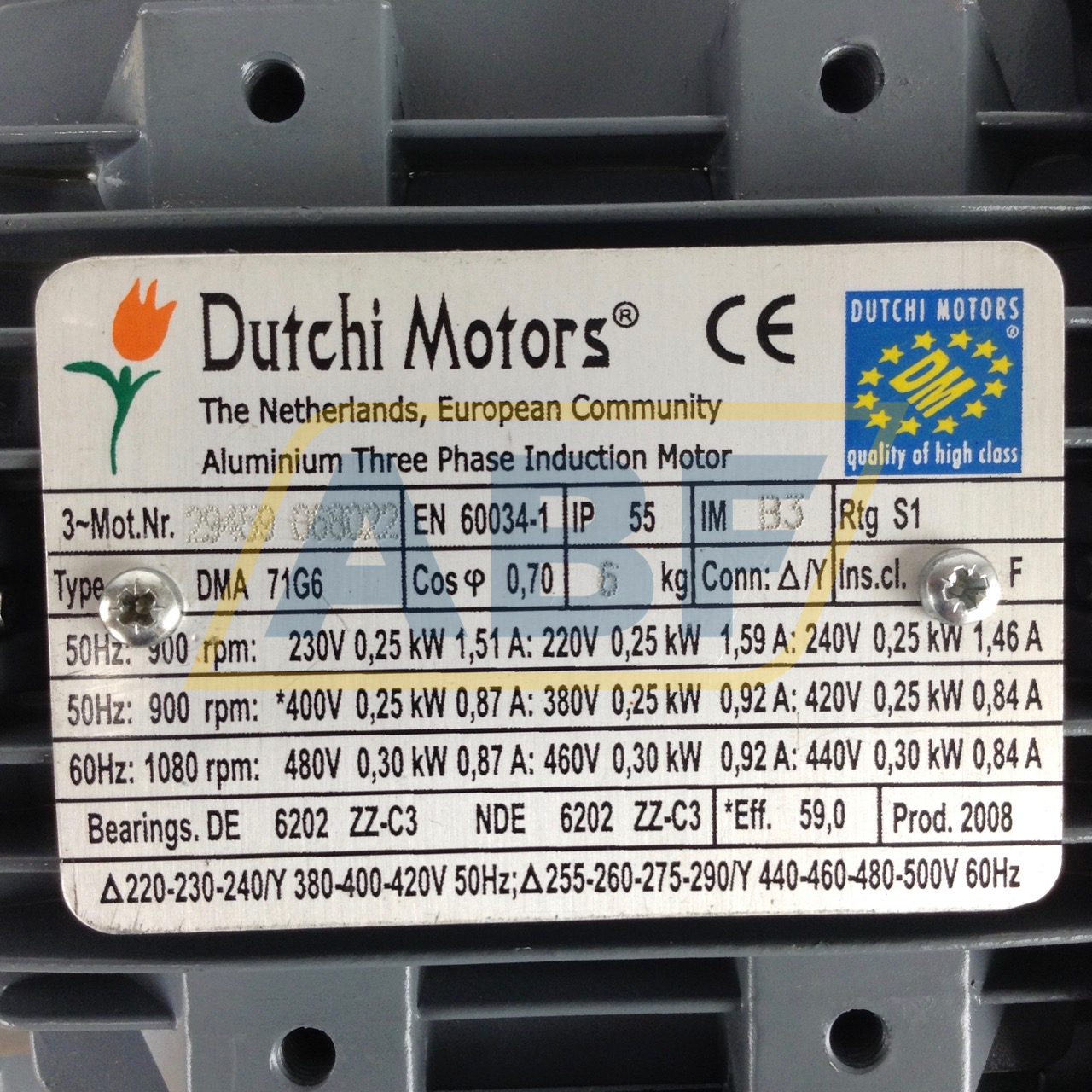

• Item Number DMA71G6 Dutchi Motors
• Category 3-Phase Motors

Weight and Dimensions

• Weight (kg) 6.26

Product Properties

• Rated power (kW) 0.25
• Speed at 50Hz (rpm) 1000 / 6-Poles
• Frequency 50/60 Hz
• Energy efficiency Not applicable
• Mounting B3 / 1M1001 (foot)
• Brake No Brake
• IP Class IP55
• Explosion safety (Atex) No protection
• IEC Framesize 71

Detailed Product Properties

• Voltage 220-230VD / 380-400VY
• IEC Framesize 71
• Shaft diameter (mm) 14
• Housing material Alu
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 071
• Shaft length (mm) 30
• Shaft key width (mm) 5
• Shaft key length (mm) 22
• Thread shaft bore M5
• Shaft height, B3 mounted (mm) 71
• Width foot holes, B3 mounted (mm) 112
• Length foot holes, B3 mounted (mm) 90
• Diameter foot holes (mm) 7
• Outer diameter flange B5/V1/B35/V3 (mm) 160
• Spigot B5/V1/B35/V3 (mm) 110
• Pitch circle diameter B5/V1/B35/V3 (mm) 130
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 10
• Pitch circle diameter B14/B34/V18/V19 (mm) 85
• Thread flange holes B14/B34/V18/V19 M6
• Outer diameter flange B14/B34/V18/V19 (mm) 105
• Spigot B14/B34/V18/V19 (mm) 70
