Specifications

• Availability 0 pcs
• Brand Cemp

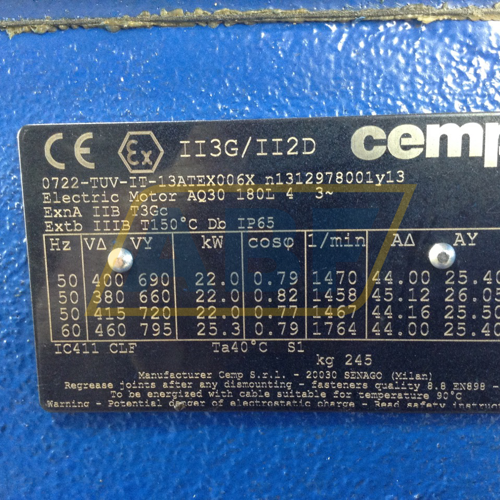

• Item Number AQ30180L4B3 Cemp
• Category Atex Motors

Weight and Dimensions

• Weight (kg) 245

Product Properties

• Rated power (kW) 22
• Speed at 50Hz (rpm) 1500 / 4-Poles
• Frequency 50/60 Hz
• Energy efficiency Not applicable
• Mounting B3 / 1M1001 (foot)
• Brake No Brake
• IP Class IP65
• Explosion safety (Atex) Zone 1 and 2
• IEC Framesize 180

Detailed Product Properties

• Voltage 380-400VD / 660-690VY
• IEC Framesize 180
• Shaft diameter (mm) 48
• Housing material Cast Iron
• AC/DC AC
• Standard IEC
• Shaft height IEC in JDE 180
• Shaft length (mm) 110
• Shaft key width (mm) 14
• Shaft key length (mm) 100
• Thread shaft bore M16
• Shaft height, B3 mounted (mm) 180
• Width foot holes, B3 mounted (mm) 279
• Length foot holes, B3 mounted (mm) S=286, M=311
• Diameter foot holes (mm) 15
• Outer diameter flange B5/V1/B35/V3 (mm) 350
• Spigot B5/V1/B35/V3 (mm) 250
• Pitch circle diameter B5/V1/B35/V3 (mm) 300
• Number of flange holes 4
• Diameter flange holes B5/V1/B35/V3 (mm) 18.5
