Home › Brake Motors › 3GVR082451-ASA ABB

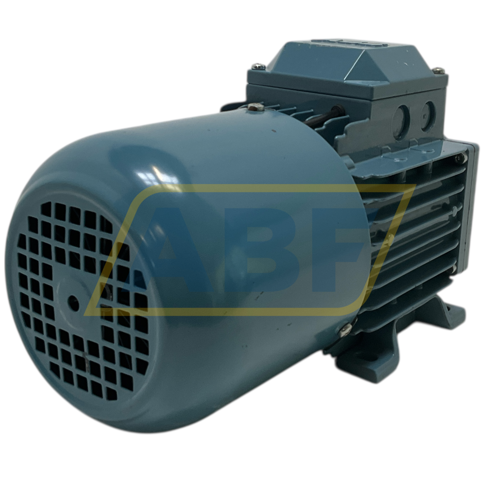

3GVR082451-ASA ABB

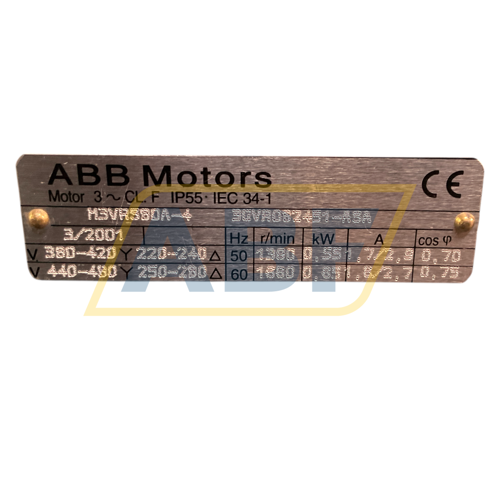

80-4P 0,55kW 230/400V B3 AL

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

3GVR082451-ASA ABB

1 pc in stock

This product is available from stock
Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace

Loading equivalents

Specifications

Availability 1 pc
Brand ABB
Item Number 3GVR082451-ASA ABB
Category Brake Motors

Weight and Dimensions

Weight (kg) 12.28

Product Properties

Rated power (kW) 0.55
Speed at 50Hz (rpm) 1500 / 4-Poles
Frequency 50/60 Hz
Energy efficiency Not applicable
Mounting B3 / 1M1001 (foot)
Brake AC Brake
IP Class IP55
Explosion safety (Atex) No protection
IEC Framesize 80

Detailed Product Properties

Voltage 220-230VD / 380-400VY
IEC Framesize 80
Shaft diameter (mm) 19
Housing material Alu
AC/DC AC
Standard IEC
Shaft height IEC in JDE 080
Shaft length (mm) 40
Shaft key width (mm) 6
Shaft key length (mm) 32
Thread shaft bore M6
Shaft height, B3 mounted (mm) 80
Width foot holes, B3 mounted (mm) 125
Length foot holes, B3 mounted (mm) 100
Diameter foot holes (mm) 9.5
Outer diameter flange B5/V1/B35/V3 (mm) 200
Spigot B5/V1/B35/V3 (mm) 130
Pitch circle diameter B5/V1/B35/V3 (mm) 165
Number of flange holes 4
Diameter flange holes B5/V1/B35/V3 (mm) 12
Pitch circle diameter B14/B34/V18/V19 (mm) 100
Thread flange holes B14/B34/V18/V19 M6
Outer diameter flange B14/B34/V18/V19 (mm) 120
Spigot B14/B34/V18/V19 (mm) 80
