Home › 3-Phase Motors › 1LE1003-1EB23-4FA4 Siemens

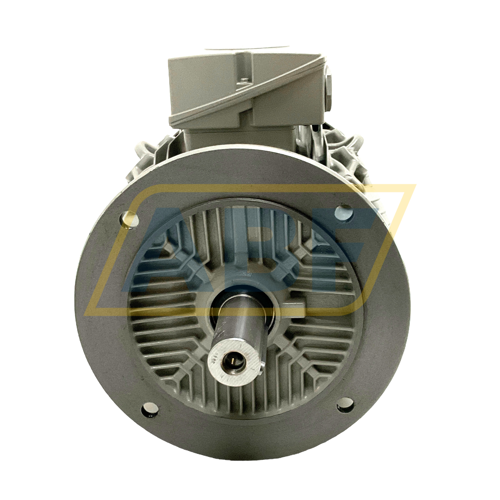

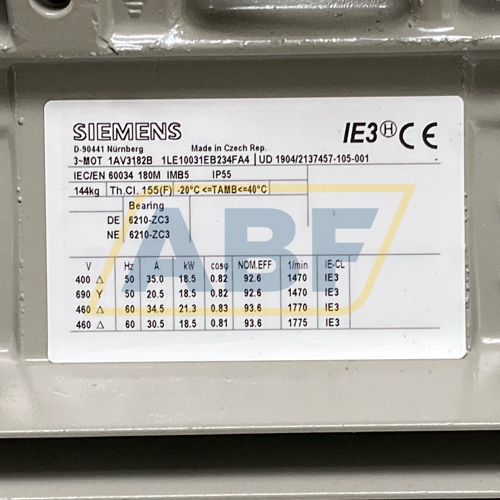

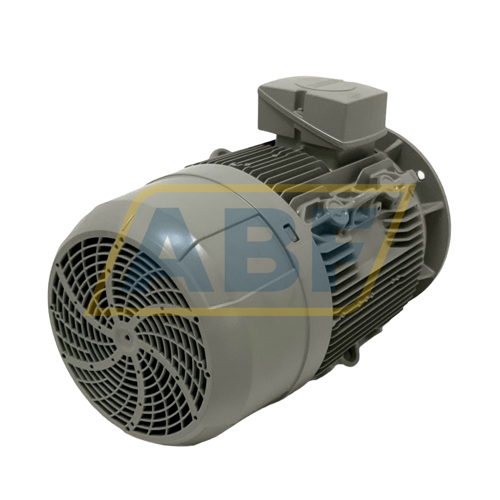

1LE1003-1EB23-4FA4 Siemens

180-4P 18kW 400V/690V B5 AL

1LE1003-1EB23-4FA4 Siemens

1 pc in stock

This product is available from stock
Orders placed before 6 p.m. CEST will be shipped today
Payment by invoice possible
Track your order with track & trace

Loading equivalents

Specifications

Availability 1 pc
Brand Siemens
Item Number 1LE1003-1EB23-4FA4 Siemens
Category 3-Phase Motors

Weight and Dimensions

Weight (kg) 134

Product Properties

Rated power (kW) 18.5
Speed at 50Hz (rpm) 1500 / 4-Poles
Frequency 50/60 Hz
Energy efficiency IE3 = Premium
Mounting B5 (outer flange)
Brake No Brake
IP Class IP55
Explosion safety (Atex) No protection
IEC Framesize 180

Detailed Product Properties

Voltage 380-400VD / 660-690VY
IEC Framesize 180
Shaft diameter (mm) 48
Housing material Alu
AC/DC AC
Standard IEC
Shaft height IEC in JDE 180
Shaft length (mm) 110
Shaft key width (mm) 14
Shaft key length (mm) 100
Thread shaft bore M16
Shaft height, B3 mounted (mm) 180
Width foot holes, B3 mounted (mm) 279
Length foot holes, B3 mounted (mm) S=286, M=311
Diameter foot holes (mm) 15
Outer diameter flange B5/V1/B35/V3 (mm) 350
Spigot B5/V1/B35/V3 (mm) 250
Pitch circle diameter B5/V1/B35/V3 (mm) 300
Number of flange holes 4
Diameter flange holes B5/V1/B35/V3 (mm) 18.5
