1 pc in stock

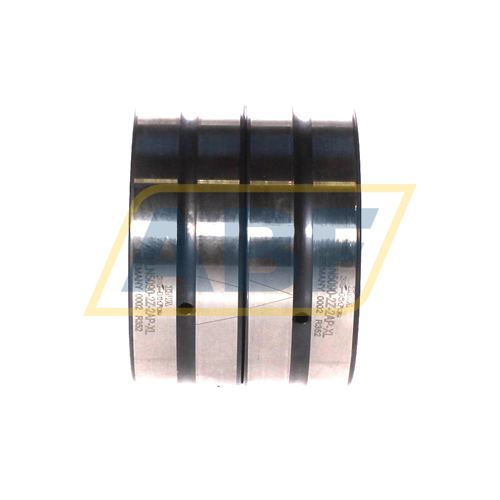

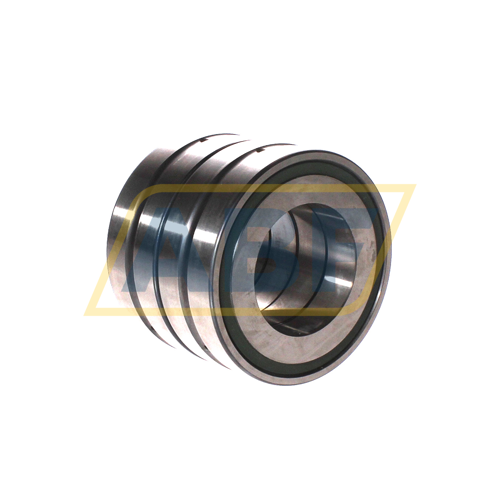

The ZKLN5090-2Z-2AP-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.
The ZKLN5090-2Z-2AP-XL INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN5090-2Z-2AP-XL INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.
Furthermore, the ZKLN5090-2Z-2AP-XL INA comprises a matched pair bearing set. Consequently, a bearing arrangement with higher load capacity and rigidity can be created. The two individual bearings in this set are matched to each other. An arrow-shaped marking on the outside of the outer rings ensures that the bearings are very easy to position correctly.
