ZKLN3572-2Z-XL INA

Double direction angular contact thrust ball bearing

ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA
ZKLN3572-2Z-XL INA

2 pcs in stock

  • This product is available from stock
  • Shipment until 18:00 CET on business days
  • Payment by invoice possible
  • Track your order with track & trace
  • Official Schaeffler distributor
Loading equivalents

Specifications

Weight and Dimensions

Product Properties

Data from Schaeffler (medias)

Suffix description

Downloads & Links

Product description

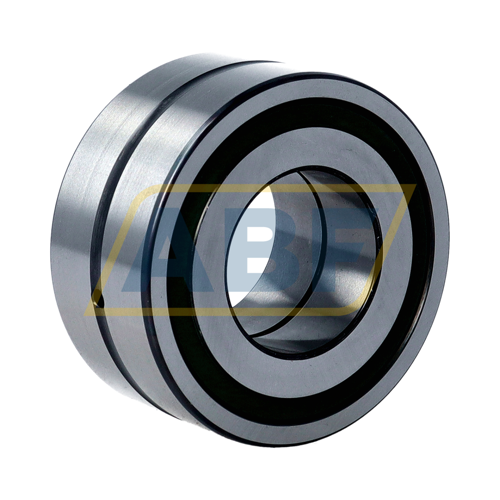

The ZKLN3572-2Z-XL INA is a double direction angular contact thrust ball bearing. This precision bearing type, also known as an axial angular contact ball bearing, is designed for use in screw drives and other applications requiring high running accuracy and load capacity. The bearing consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. Thanks to the 60-degree contact angle, radial and high axial forces can be absorbed in both directions.

The ZKLN3572-2Z-XL INA is suitable for installation in a housing bore. The bearing’s outer ring is secured with a cover, locknut, or other clamping mechanism. With the ZKLN3572-2Z-XL INA, a compact, rigid bearing arrangement can be achieved that is easy to assemble and disassemble.
