Home › Housing and Bearing (assembly) › SY45TF SKF

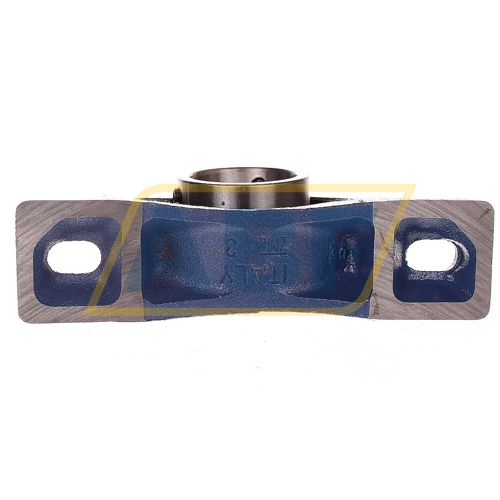

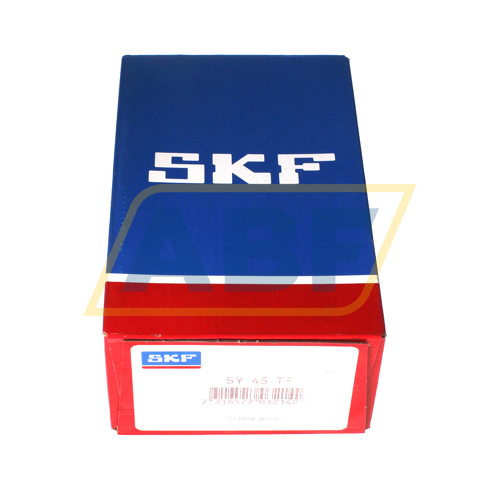

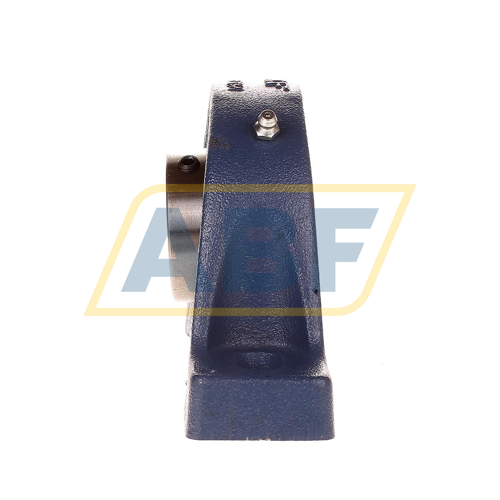

SY45TF SKF

Housing unit

40 pcs in stock

This product is available from stock
Shipment until 18:00 CET on business days
Payment by invoice possible
Track your order with track & trace

Loading equivalents

Specifications

Availability 40 pcs
Brand SKF
Item Number SY45TF SKF
Also known as 125857
56209 + SG209S
GYE45KRRB + ASE09
P2B-SC-45M
RASEY45
SG56209
YAR209-2F + SY509M
EAN 7316577032140
Category Housing and Bearing (assembly)

Weight and Dimensions

Inner (d) MM 45
Outer (D) MM 187
Width (B) MM 48
Inner (d) Inch 1.7717
Outer (D) Inch 7.3622
Width (B) Inch 1.8898
Weight (kg) 2.2

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Suffix description

TF Y-Bearing Of Series YAR2-2F (Inner Ring Extended At Both Sides, Grub Screw Locking), Standard Seal And Plain Flinger At Each Side

Product description

The SY45TF SKF is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.
