Specifications
Availability1 pc
BrandINA
Item NumberSL14918-A-C3 INA
Manufacturer Part Number0001771300030
EAN4047643175814

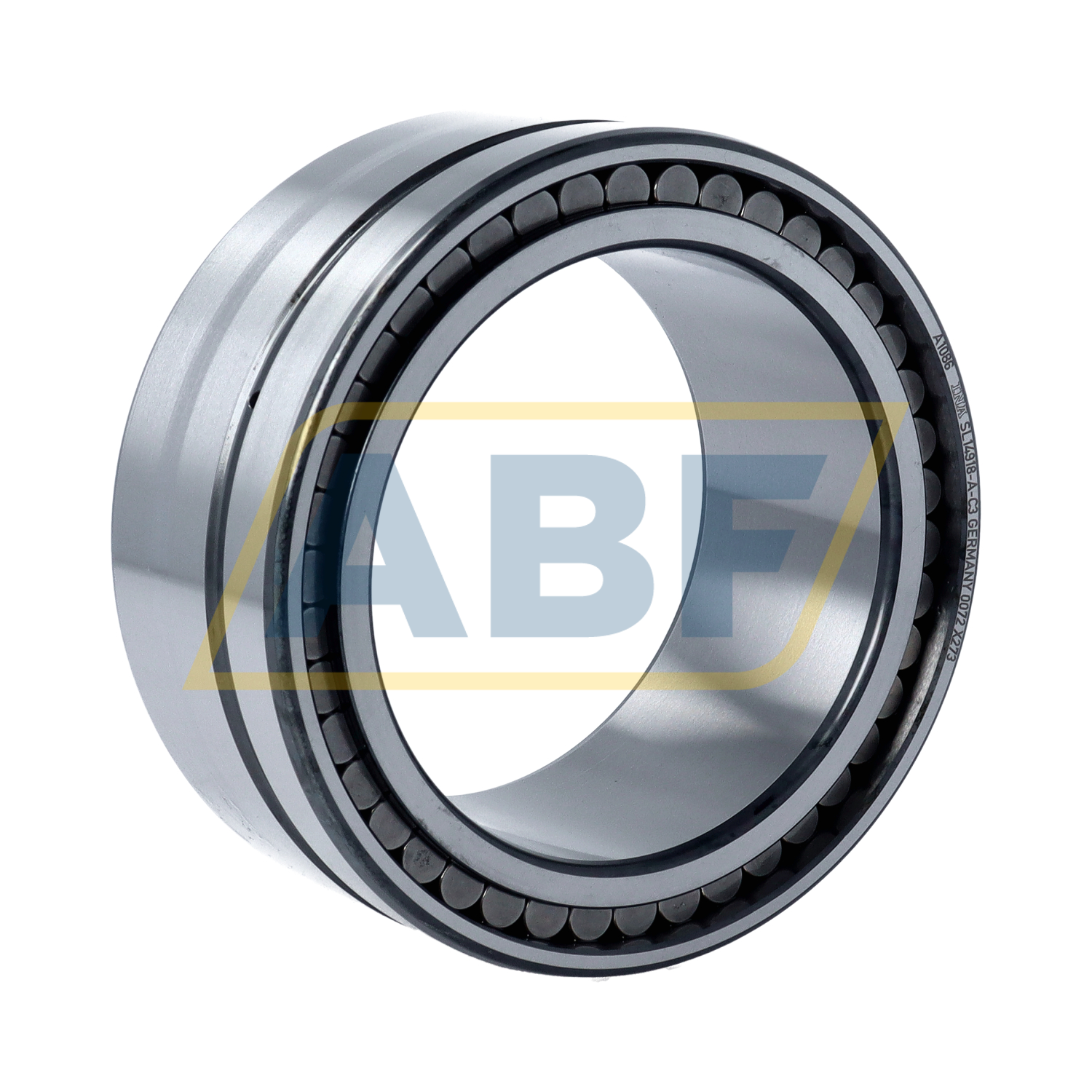

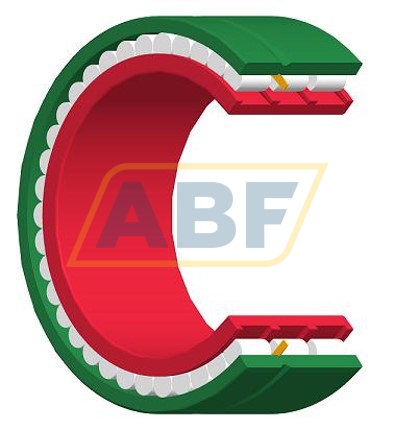

CategoryCylindrical Roller Bearing Multi Row
Weight and Dimensions
Inner (d) MM
90
Outer (D) MM
125
Width (B) MM
52
Inner (d) Inch
3.5433
Outer (D) Inch
4.9213
Width (B) Inch
2.0472
Weight (kg)
1.95
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
FC - Full Complement, No Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Data from Schaeffler (medias)
ECLASS number
23-05-09-01
ECLASS2 number
23-05-09-01
Suffix description
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
