Name: SL045018-D-PP-2NR-C3-GA22 INA
Brand: INA

Specifications

Availability 5 pcs
Brand INA
Item Number SL045018-D-PP-2NR-C3-GA22 INA
Manufacturer Part Number 0897919166500
Also known as SL045018-PP-2NR-C3
EAN 4054369691269
Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

Inner (d) MM 90
Outer (D) MM 140
Width (B) MM 67
Inner (d) Inch 3.5433
Outer (D) Inch 5.5118
Width (B) Inch 2.6378
Weight (kg) 3.55

Product Properties

Bore C - Cylindrical Bore
Seal 2L - LS-seal at Both Sides
Cage Type FC - Full Complement, No Cage
External Modification 2R - 2 Snap Rings in O.D.
Radial Internal Play C3 Internal Play (Higher than Cn)
Precision Grease -50°C / +120°C
Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

Width (b) mm 67
Basic static load rating, radial (C 0r) 510000
Limiting speed for grease lubrication (n G Grease) 1410

Suffix description

D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
PP Lip Seals On Both Sides Of The Bearing
2NR Supplied With Two Loose-Packed Retaining Rings WRE
C3 Internal Clearance Larger Than Normal
GA22 Optimized Grease For All Purposes, Temperature Range Approximately -50 ~ 120°C - Description: Isoflex® LDS 18 Special A)-Is A Dynamically Light Long-Term Grease For Plain And Rolling Bearings. It Consists Of Ester Oil, Mineral Oil And Lithium Soap. The Product Is Resistant To Ageing, Oxidation And Water, And It Protects Reliably Against Corrosion. Application: Isoflex® LDS 18 Special A Is Suitable For Plain And Rolling Bearings Operating At Low Temperatures And/Or High Speeds, For Example In Grinding Spindles, Machine Tool Spindles, Spindle Bearings, Textile Spindles, Bearings In Oe-Spinning Turbines, Bearings In Precision And Optical Equipment

Product description

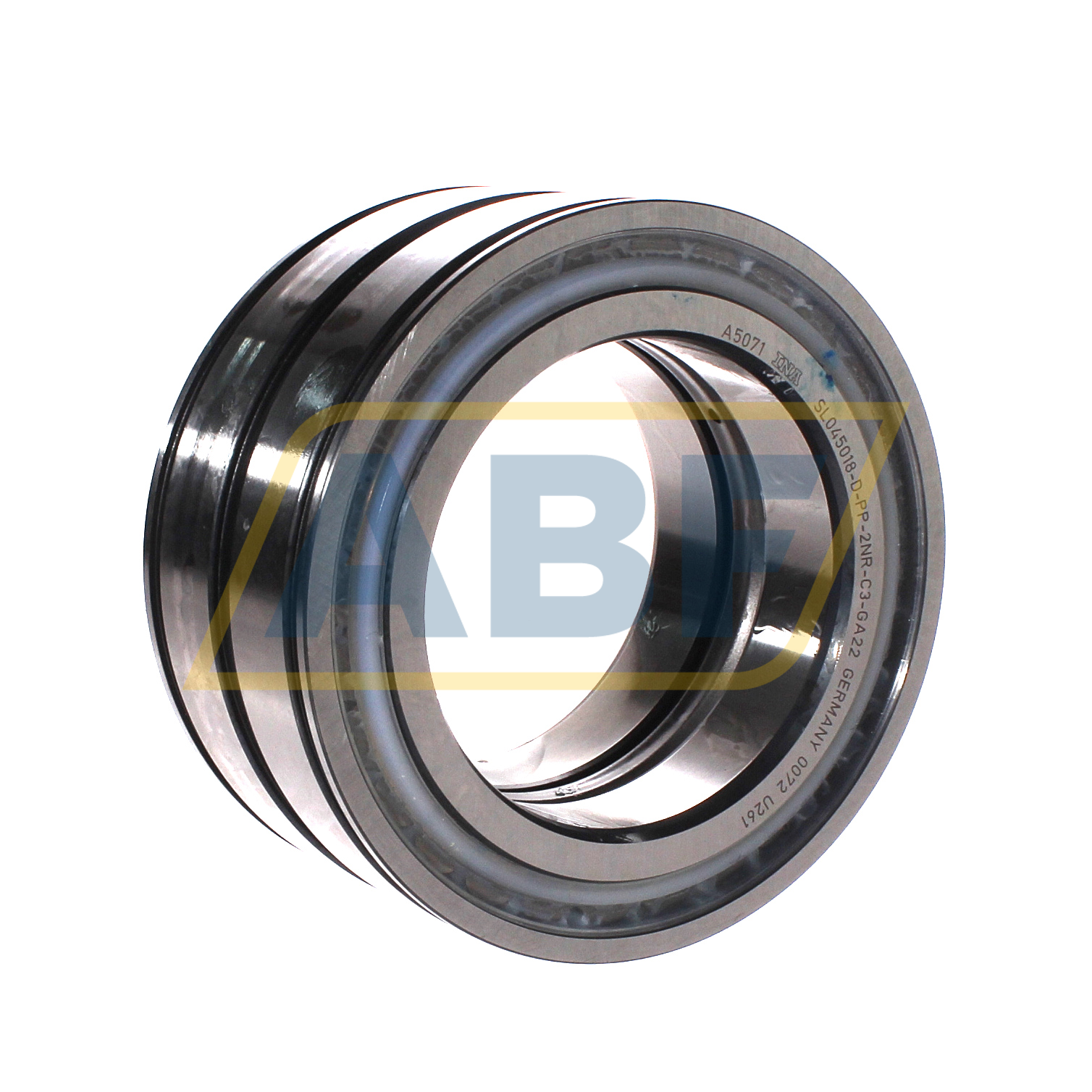

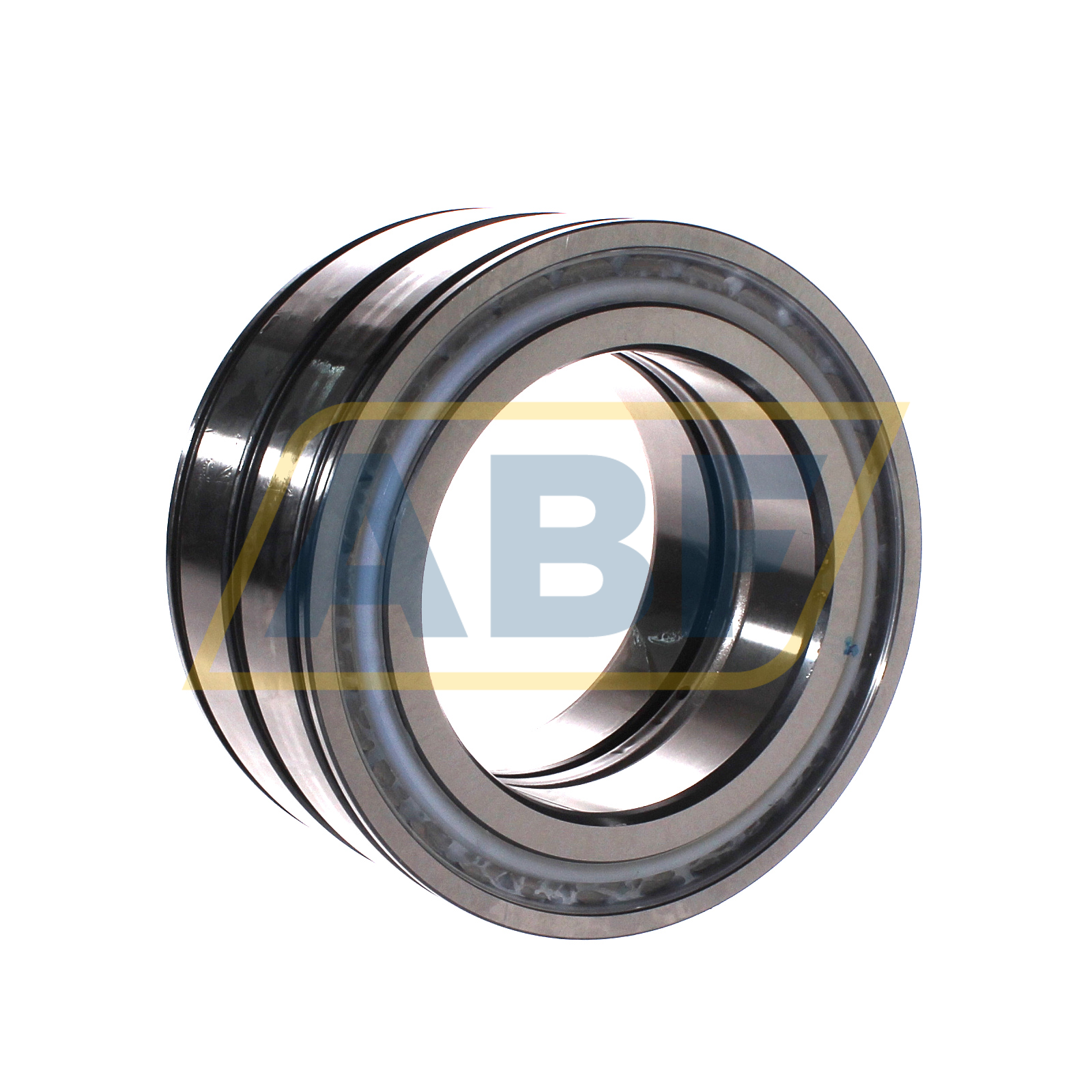

The SL045018-D-PP-2NR-C3-GA22 INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.
