SB45A IKO

Spherical plain bearing

1 pc in stock

This product is available from stock
Orders placed before 6 p.m. CEST will be shipped today
Payment by invoice possible
Track your order with track & trace

Loading equivalents

Specifications

Availability 1 pc
Brand IKO
Item Number SB45A IKO
Category Spherical Plain Bearing

Weight and Dimensions

Inner (d) MM 45
Outer (D) MM 72
Width (B) MM 36
Inner (d) Inch 1.7717
Outer (D) Inch 2.8346
Width (B) Inch 1.4173
Weight (kg) 0.6

Product Properties

Seal No Seal
Contact Material Steel on Steel

Suffix description

A Dimensionally Interchangeable, But The Radial Internal Clearances Of The SB...A Type Are Smaller Than Those Of The SB Type

Product description

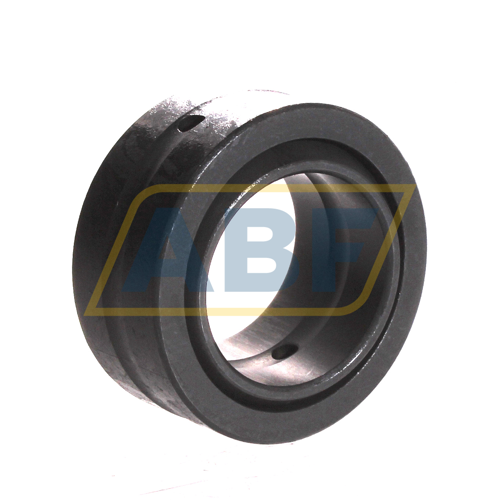

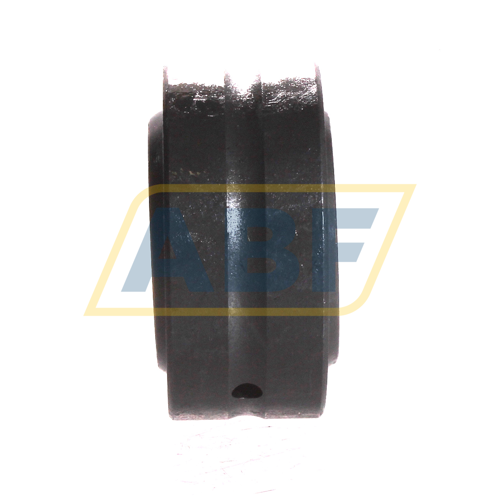

The SB45A IKO is a spherical plain bearing. Spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of an inner and outer ring. The inner ring has a convex outer surface. The outer ring has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.

The SB45A IKO has a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.
