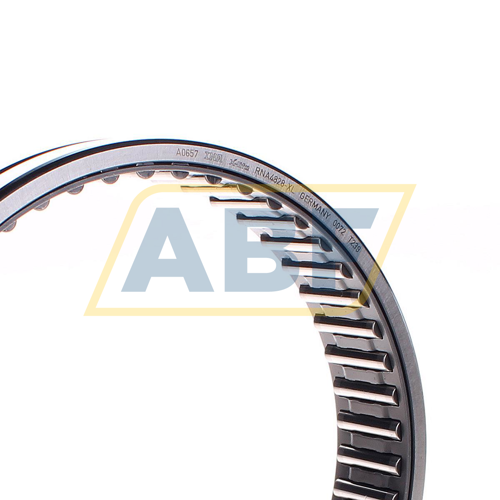

RNA4828-XL INA

Needle roller bearings RNA48, dimension series 48, to DIN 617/ISO 1206

55 pcs in stock

This product is available from stock
Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Loading equivalents

Specifications

Availability 55 pcs
Brand INA
Item Number RNA4828-XL INA
Manufacturer Part Number 0507673300000
Also known as RNA4828
EAN 4012802844900
Category Needle Roller and Cage Assembly

Weight and Dimensions

Inner (d) MM 155
Outer (D) MM 175
Width (B) MM 35
Inner (d) Inch 6.1024
Outer (D) Inch 6.8898
Width (B) Inch 1.378
Weight (kg) 1.05

Product Properties

Seal No Seal

Data from Schaeffler (medias)

Under roller diameter (F w) mm 155
Width (b) mm 35
Radial Static Load Rating C0r (N) 325000
Radial Dynamic Load Rating Cr (N) 136000
Basic static load rating, radial (C 0r) "325000.0000"
Limiting speed (n G) 3050
Limiting speed for grease lubrication (n G Grease) 1830
Reference speed (n ϑr) 1870
ECLASS number 23-05-09-07
ECLASS2 number 23-05-09-07
Medias description Radial roller bearing RNA..-XL

Suffix description

XL X-Life
