Home › Housing and Bearing (assembly) › RME50-XL-N INA

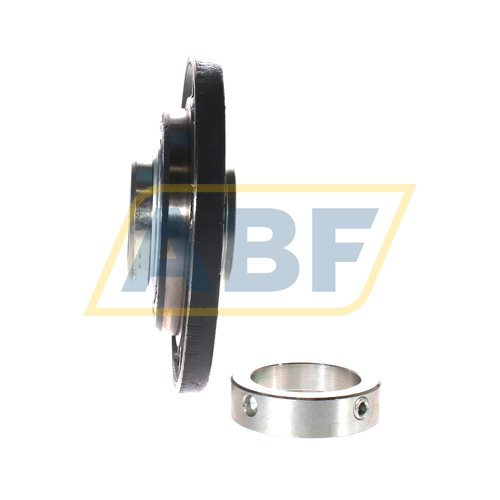

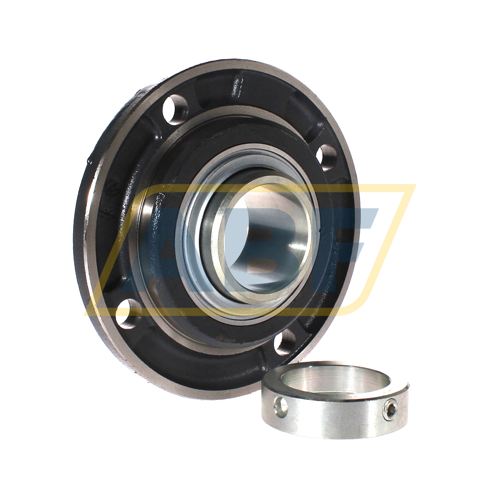

RME50-XL-N INA

Housing unit

41 pcs in stock

This product is available from stock
Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Loading equivalents

Specifications

Availability 41 pcs
Brand INA
Item Number RME50-XL-N INA
Manufacturer Part Number 0096432060000
Also known as GE50KRRB + ME10
RME50-N
EAN 4012802837704
Category Housing and Bearing (assembly)

Weight and Dimensions

Inner (d) MM 50
Outer (D) MM 165
Width (B) MM 47,6
Inner (d) Inch 1.9685
Outer (D) Inch 6.4961
Width (B) Inch 1.874
Weight (kg) 3

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

Height flange (H) mm 165
Locking collar total width (B 1) mm 62,8
Total height unit (U) mm 37,1
Radial Static Load Rating C0r (N) 23200
Radial Dynamic Load Rating Cr (N) 37500
Basic static load rating, radial (C 0r) "23200.0000"
ECLASS number 23-05-16-02
ECLASS2 number 23-05-16-02
Medias description Housing units RME, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, R seals

Suffix description

XL X-Life
N Cast Iron Housing With Undercut Slot For End Caps

Downloads & Links

Product description

The RME50-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.
