Specifications

• Availability 199 pcs
• Brand INA
• Item Number RCSMB15/65-XL-FA106 INA
• Manufacturer Part Number 0008336730000
• Also known as RCSMB15/65-FA106

• EAN 4012802790177
• Category Bearings for Housings

Weight and Dimensions

• Inner (d) MM 15
• Outer (D) MM 65,1
• Width (B) MM 28,6
• Weight (kg) 0.18

Product Properties

• Seal 2F - Standard Seal for Y-bearings
• Lubrication Standard Lubrication
• Special Treatment FA106

Data from Schaeffler (medias)

• Locking collar total width (B 1) mm 28,6
• Radial Static Load Rating C0r (N) 4750
• Radial Dynamic Load Rating Cr (N) 10100
• Basic static load rating, radial (C 0r) "4750.0000"
• ECLASS number 23-05-08-02
• ECLASS2 number 23-05-08-02

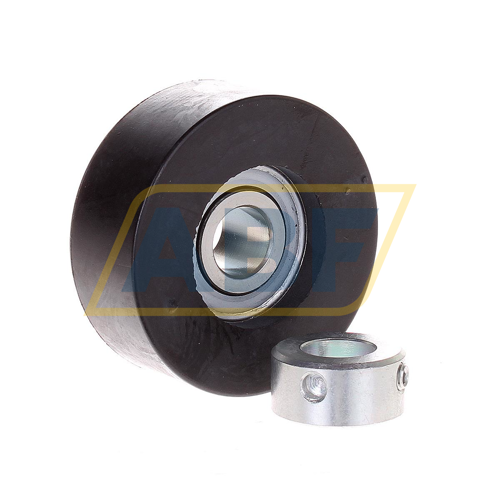

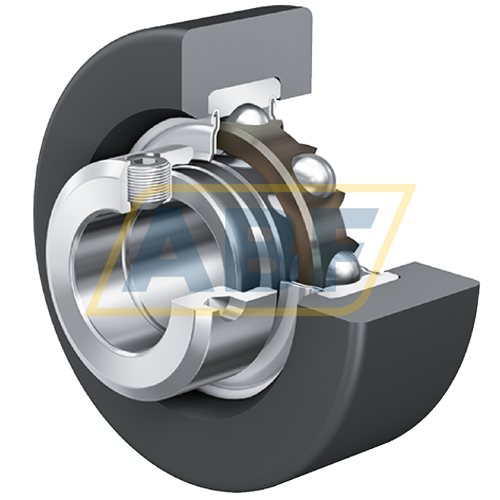

• Medias description Radial insert ball bearings RCSM, with rubber interliner, location by eccentric locking collar, P seals on both sides
