Specifications
Availability4 pcs
BrandINA

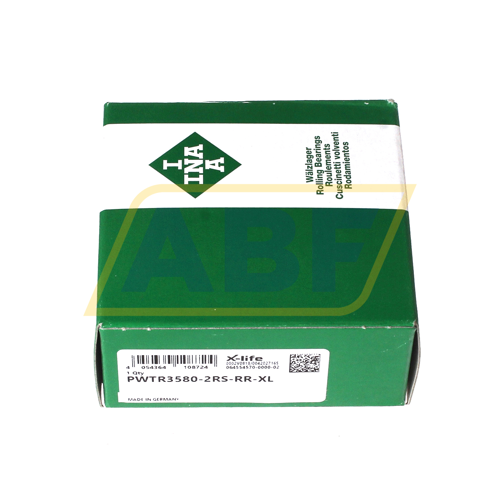

Item NumberPWTR3580-2RS-RR-XL INA
Manufacturer Part Number0645545700000
Also known as
PWTR3580-2RS-RR
EAN4054364108724
CategorySupport Roller
Weight and Dimensions
Inner (d) MM
35
Outer (D) MM
80
Width (B) MM
28
Inner (d) Inch
1.378
Outer (D) Inch
3.1496
Width (B) Inch
1.1024
Weight (kg)
0.836
Product Properties
Seal
2RS - Rubber Seal on Two Sides
Running Surface
Standard
Data from Schaeffler (medias)
Width inner ring (B) mm
29
Basic dynamic load rating, radial (C r w)
43500
Basic static load rating, radial (C 0r)
62000
Speed on permanent grease lubrication (n D G)
1800
ECLASS number
23-05-15-01
ECLASS2 number
23-05-15-01
Medias description
Yoke type track rollers PWTR..-2RS-RR, Full complement cylindrical roller set, with axial guidance, lip seal on both sides, with Corrotect coating
Suffix description
2RSRubber Seals At Each Side Of The Bearing, Temperature Range -30 ~ 120℃
RRProtected Against Corrosion By Corrotect® Special Coating

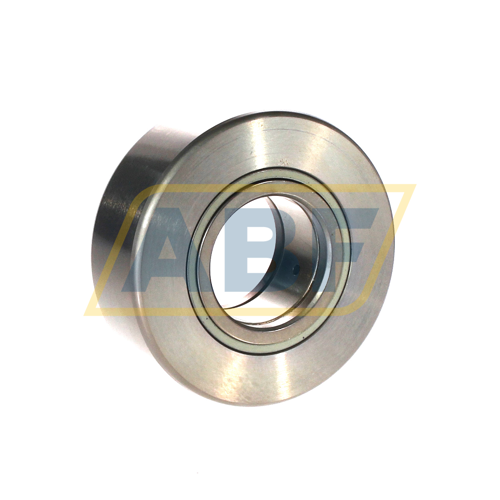

The PWTR3580-2RS-RR-XL INA is a track roller or support roller with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.
The PWTR3580-2RS-RR-XL INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.
