Home › Linear Plain Bearing › PAB50-PP-AS INA

PAB50-PP-AS INA

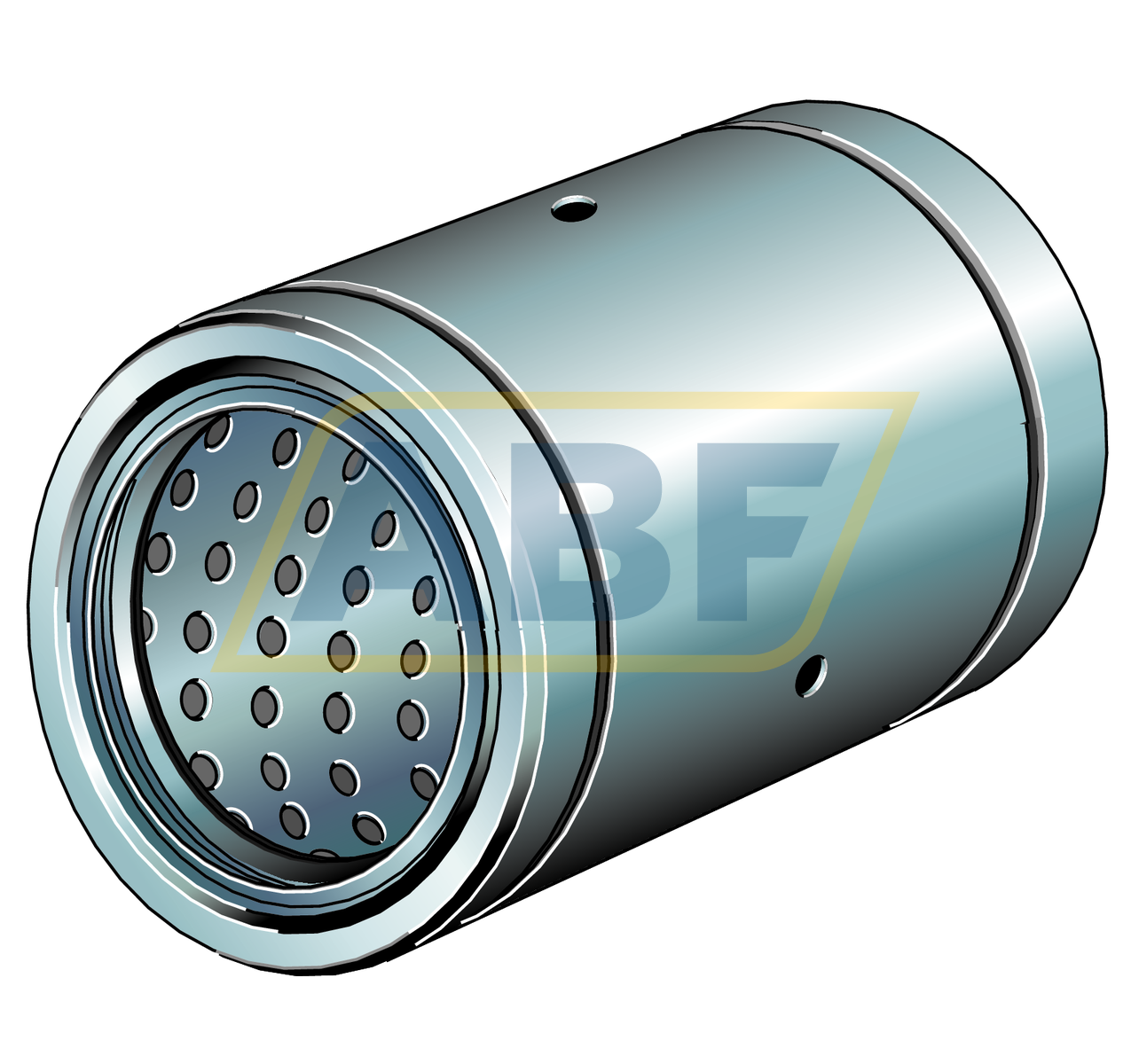

Permaglide® linear plain bearings PAB..PP AS, sealed on all sides, relubrication

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

PAB50-PP-AS INA

16 pcs available

8 pcs in stock
8 pcs expected on Mon 10 Mar

This product is available from stock
Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Loading equivalents

Specifications

Availability 16 pcs
Brand INA
Item Number PAB50-PP-AS INA
Manufacturer Part Number 0016583440000
Also known as PAB50100PP AS
EAN 4012802061543
Category Linear Plain Bearing

Weight and Dimensions

Inner (d) MM 50
Outer (D) MM 75
Width (B) MM 100
Inner (d) Inch 1.9685
Outer (D) Inch 2.9528
Width (B) Inch 3.937
Weight (kg) 0.773

Product Properties

Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

Length (L) mm 100
Outer diameter (D) mm 75
ECLASS number 23-30-01-01
ECLASS2 number 23-30-01-01

Suffix description

PP Lip Seal On Both Sides Of Bearing
AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Downloads & Links

Link to manufacturer
