Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Bearings for Traction Motors
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Data from Schaeffler (medias)
Width (b) mm
37
Basic static load rating, radial (C 0r)
265000
Limiting speed (n G)
7600
Reference speed (n ϑr)
4150
ECLASS number
23-05-09-01
ECLASS2 number
23-05-09-01
Suffix description
EIncreased Load Capacity
XLX-Life
M1Solid Brass Cage, Two Piece, Roller Guided
F1FAG Manufacturing And Inspection Specification For Cylindrical Roller Bearings In Traction Motors Which Considers, Among Others, The Requirements According To Din 43283 "Cylindrical Roller Bearings For Electric Traction"

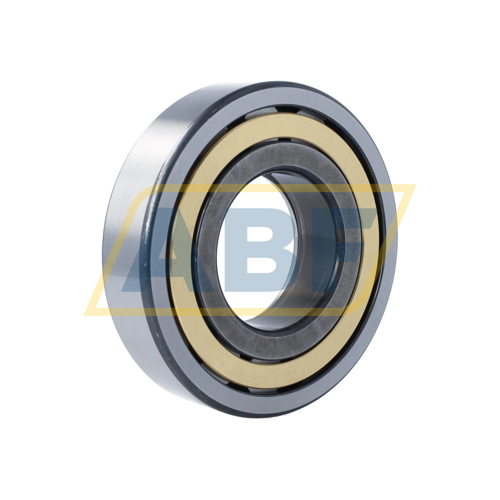

The NUP315-E-XL-M1-F1-C3 FAG is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.

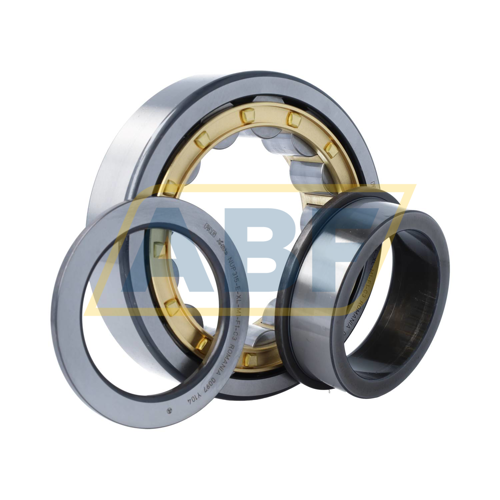

The NUP315-E-XL-M1-F1-C3 FAG is a single-row cylindrical bearing with NUP design. The outer ring has two rigid ribs, while the inner ring has one rigid and one loose rib. As a result, this bearing can take radial forces as well as axial forces in both directions. NUP bearings are used as locating bearings. Locating bearings locate a shaft axially in both directions.
The NUP315-E-XL-M1-F1-C3 FAG is an X-life type cylindrical roller bearing. X-life bearings provide better performance than normal cylindrical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal cylindrical roller bearings.
