Specifications
Availability51 pcs
BrandINA
Item NumberNUKRE35-A-NMT INA
Manufacturer Part Number0031402700078
EAN4012802371093
CategoryCam Follower
Weight and Dimensions
Inner (d) MM
20
Outer (D) MM
35
Width (B) MM
52
Inner (d) Inch
0.7874
Outer (D) Inch
1.378
Width (B) Inch
2.0472
Weight (kg)
0.182
Product Properties
Seal
No Seal
Excenterring
E - Excenterring with Inbus Mount
Running Surface
Standard
Data from Schaeffler (medias)
Fit diameter of roller stud / stud (d 1) mm
16
Width (b) mm
52
Basic dynamic load rating, radial (C r w)
15600
Basic static load rating, radial (C 0r)
18600
Speed on permanent grease lubrication (n D G)
6500
ECLASS number
23-05-15-02
ECLASS2 number
23-05-15-02
Medias description
Stud type track rollers NUKRE, with axial guidance, full complement cylindrical roller set, with eccentric collar, labyrinth seals on both sides
Suffix description
AAlteration In Internal Construction. Identical To Old Notation

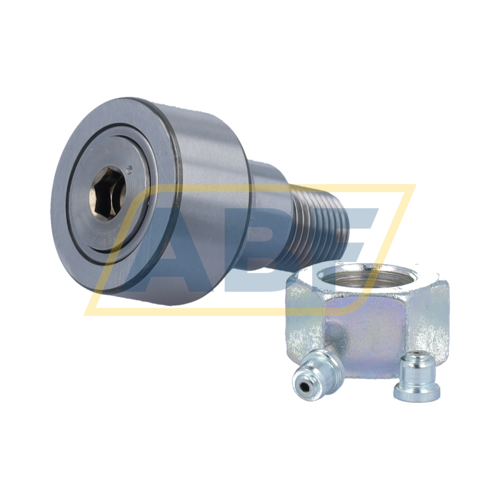

The NUKRE35-A-NMT INA is a cam follower with cylindrical rollers. These rolling elements combine a high load capacity with reasonable shock resistance. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The NUKRE35-A-NMT INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam followers.
