Specifications
Availability3 pcs
BrandSKF
Item NumberNJG2313VH/C3 SKF
Also known as
SL19-2313C3
EAN7316570788150
CategoryCylindrical Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
65
Outer (D) MM
140
Width (B) MM
48
Inner (d) Inch
2.5591
Outer (D) Inch
5.5118
Width (B) Inch
1.8898
Weight (kg)
3.55
Product Properties
Bore
C - Cylindrical Bore
Seal
No Seal
Cage Type
FC - Full Complement, No Cage
External Modification
No External Modification
Radial Internal Play
C3 Internal Play (Higher than Cn)
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Suffix description
VHFull Complement Of Rollers (Without Cage), Self-Retaining
C3Internal Clearance Larger Than Normal
Product description

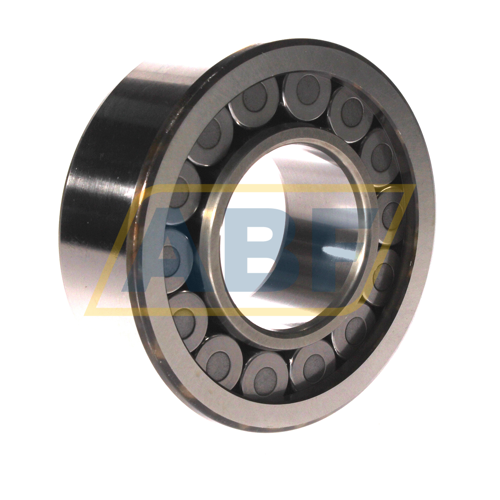

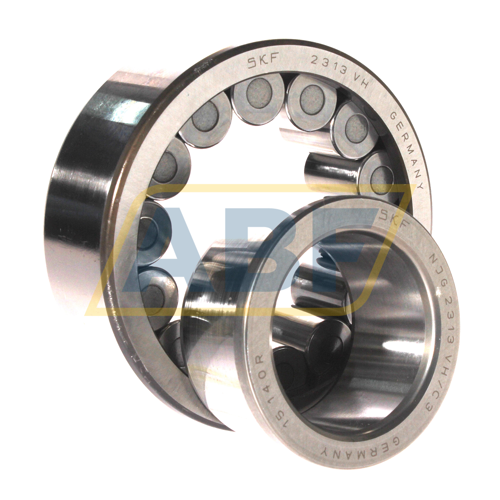

The NJG2313VH/C3 SKF is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages.
Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.
