Loading equivalents
Specifications
Availability56 pcs
BrandINA

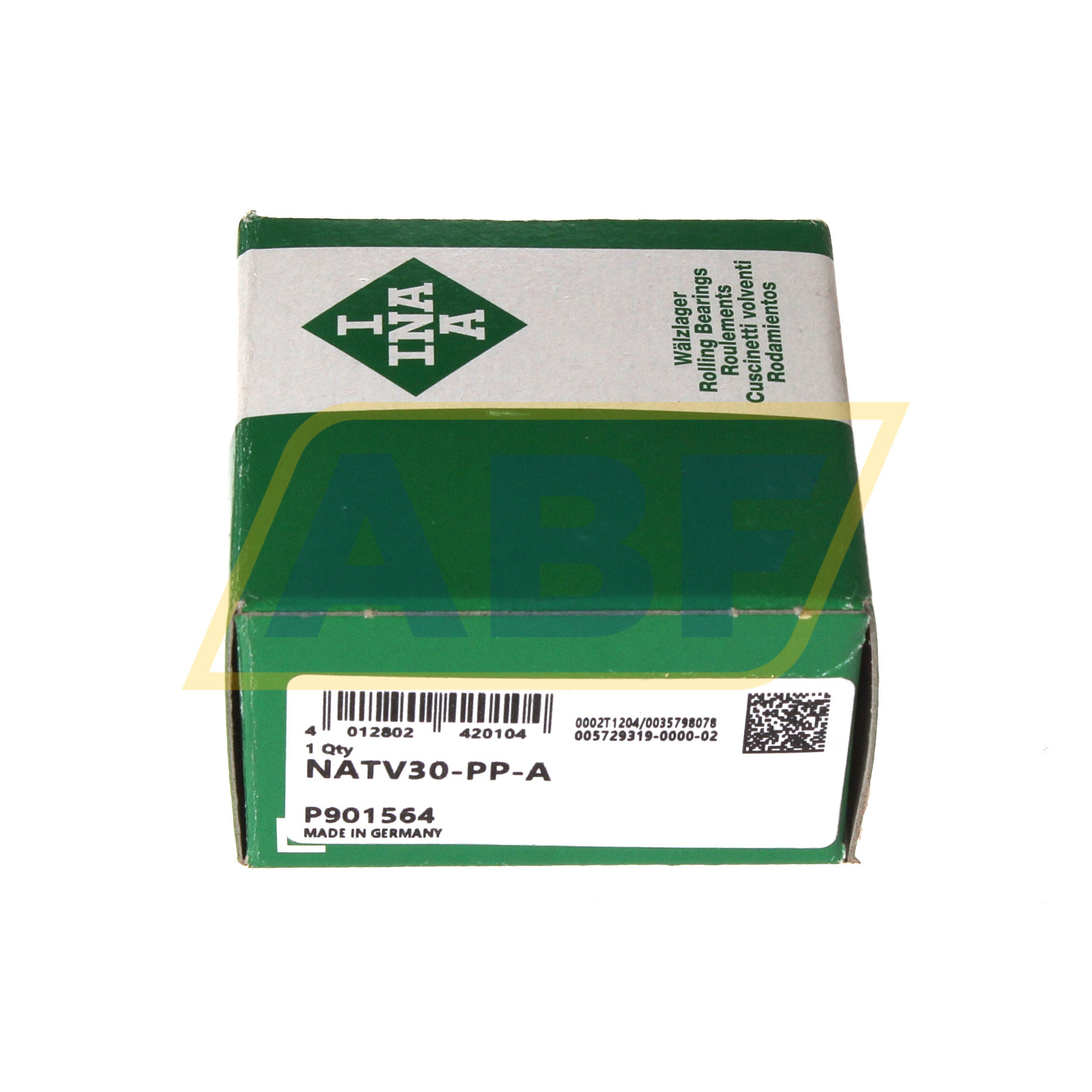

Item NumberNATV30-PP-A INA
Manufacturer Part Number0057293190000
EAN4012802420104
CategorySupport Roller
Weight and Dimensions
Inner (d) MM
30
Outer (D) MM
62
Width (B) MM
28
Inner (d) Inch
1.1811
Outer (D) Inch
2.4409
Width (B) Inch
1.1024
Weight (kg)
0.4705
Product Properties
Seal
2L - LS-seal at Both Sides
Running Surface
Standard
Data from Schaeffler (medias)
Width of the bearing (B) mm
29
Basic dynamic load rating, radial (C r w)
30000
Basic static load rating, radial (C 0r)
63000
Speed on permanent grease lubrication (n D G)
850
ECLASS number
23-05-15-01
ECLASS2 number
23-05-15-01
Medias description
Yoke type track rollers NATV..-PP, full complement needle roller set, with axial guidance, axial plain washers on both sides
Suffix description
PPLip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
AAlteration In Internal Construction. Identical To Old Notation

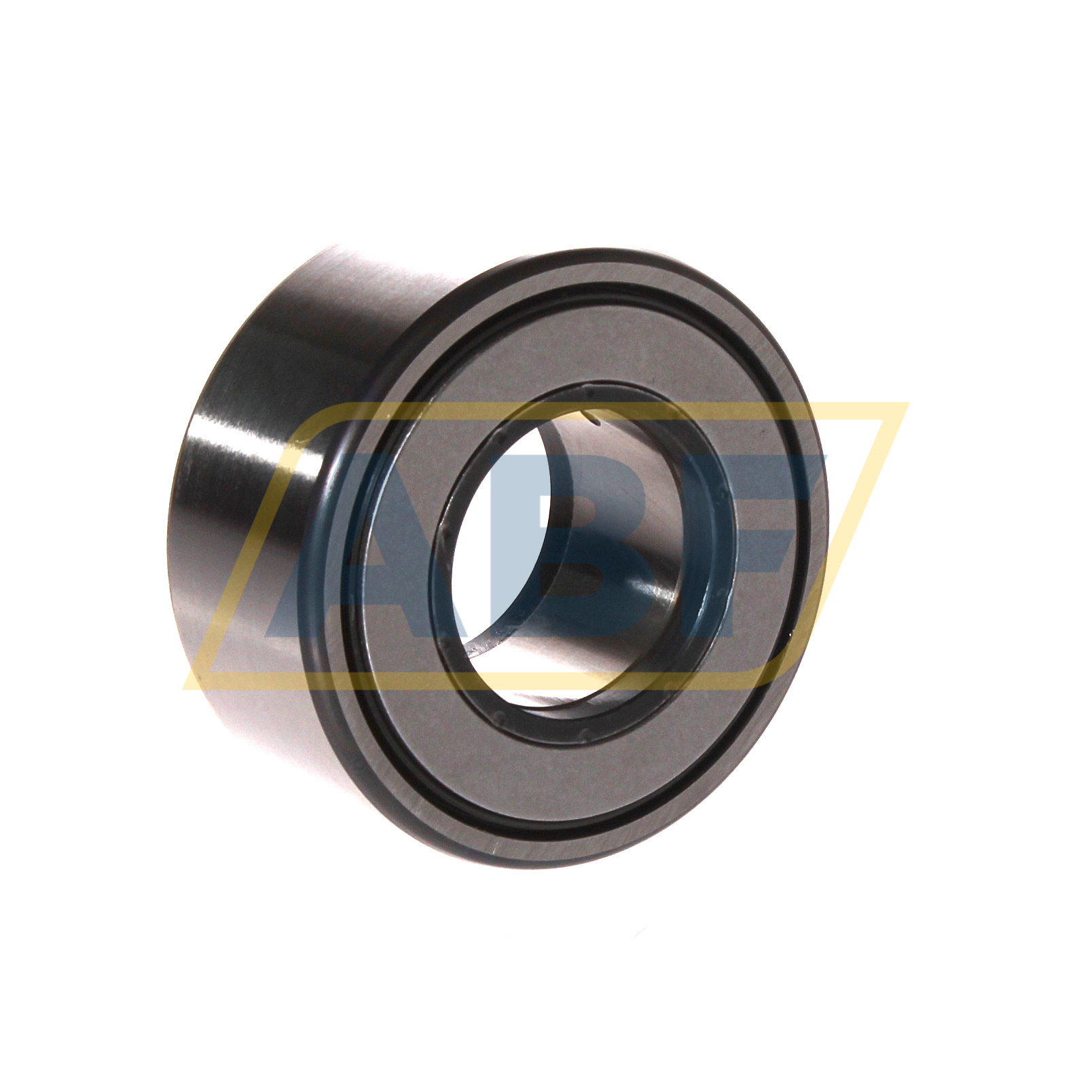

The NATV30-PP-A INA is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.
The NATV30-PP-A INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.
