Loading equivalents
Specifications
Availability2 pcs
BrandINA
Item NumberNATR35-X-PP-A INA
Manufacturer Part Number0041065120000
EAN4012802427424
CategorySupport Roller
Weight and Dimensions
Width (B) MM
28
Width (B) Inch
1.1024
Weight (kg)
0.68
Product Properties
Seal
2L - LS-seal at Both Sides
Running Surface
Cylindrical
Data from Schaeffler (medias)
Medias description

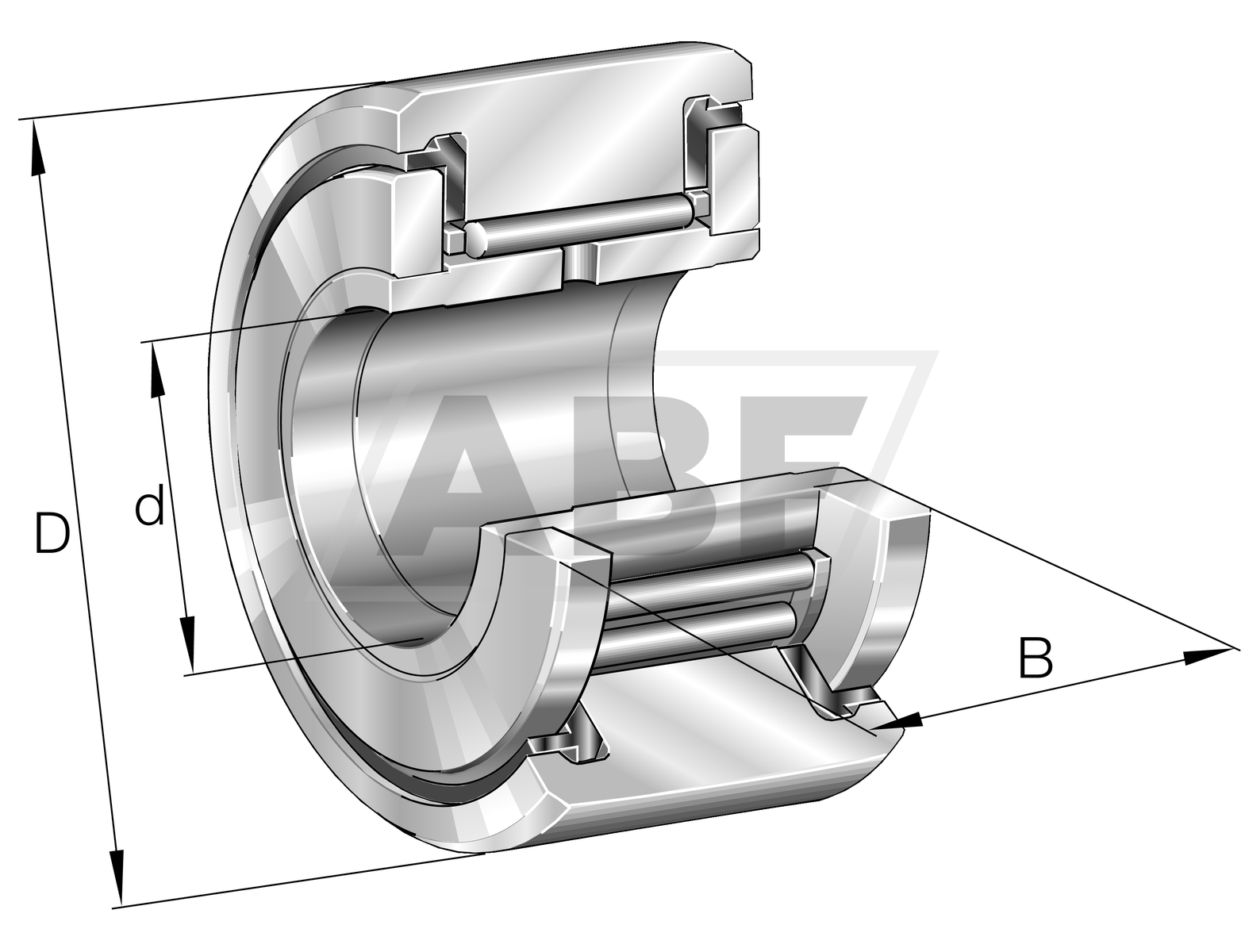

Yoke type track rollers NATR..-PP, with axial guidance, axial plain washers on both sides
Suffix description
XCylindrical Running Surface
PPLip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
AAlteration In Internal Construction. Identical To Old Notation
Product description
The NATR35-X-PP-A INA is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.
The NATR35-X-PP-A INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.
