Home › Needle Roller and Cage Assembly › NA4836-XL-C4 INA

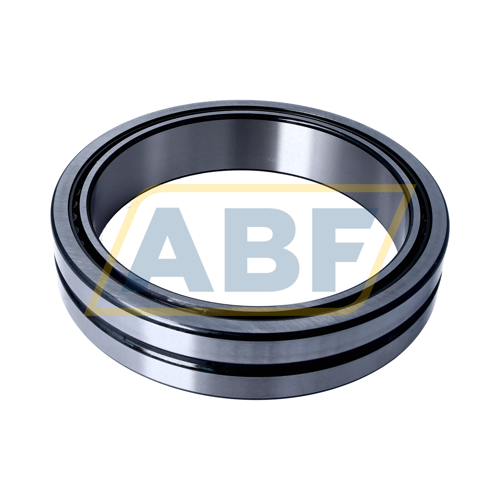

NA4836-XL-C4 INA

Needle roller bearings NA48, dimension series 48, to DIN 617/ISO 1206

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

NA4836-XL-C4 INA

4 pcs in stock

This product is available from stock
Shipment until 18:00 CET on business days
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Loading equivalents

Specifications

Availability 4 pcs
Brand INA
Item Number NA4836-XL-C4 INA
Manufacturer Part Number 0507685300040
Also known as NA4836-C4
EAN 4047643203906
Category Needle Roller and Cage Assembly

Weight and Dimensions

Inner (d) MM 180
Outer (D) MM 225
Width (B) MM 45
Inner (d) Inch 7.0866
Outer (D) Inch 8.8583
Width (B) Inch 1.7717
Weight (kg) 4.165

Product Properties

Seal No Seal

Data from Schaeffler (medias)

Width (b) mm 45
Basic static load rating, radial (C 0r) 550000
Limiting speed (n G) 2420
Reference speed (n ϑr) 1490
ECLASS number 23-05-09-07
ECLASS2 number 23-05-09-07

Suffix description

XL X-Life
C4 Bearing Internal Clearance Greater Than C3

Downloads & Links
