Home › Needle Roller and Cage Assembly › NA4830-XL-C3 INA

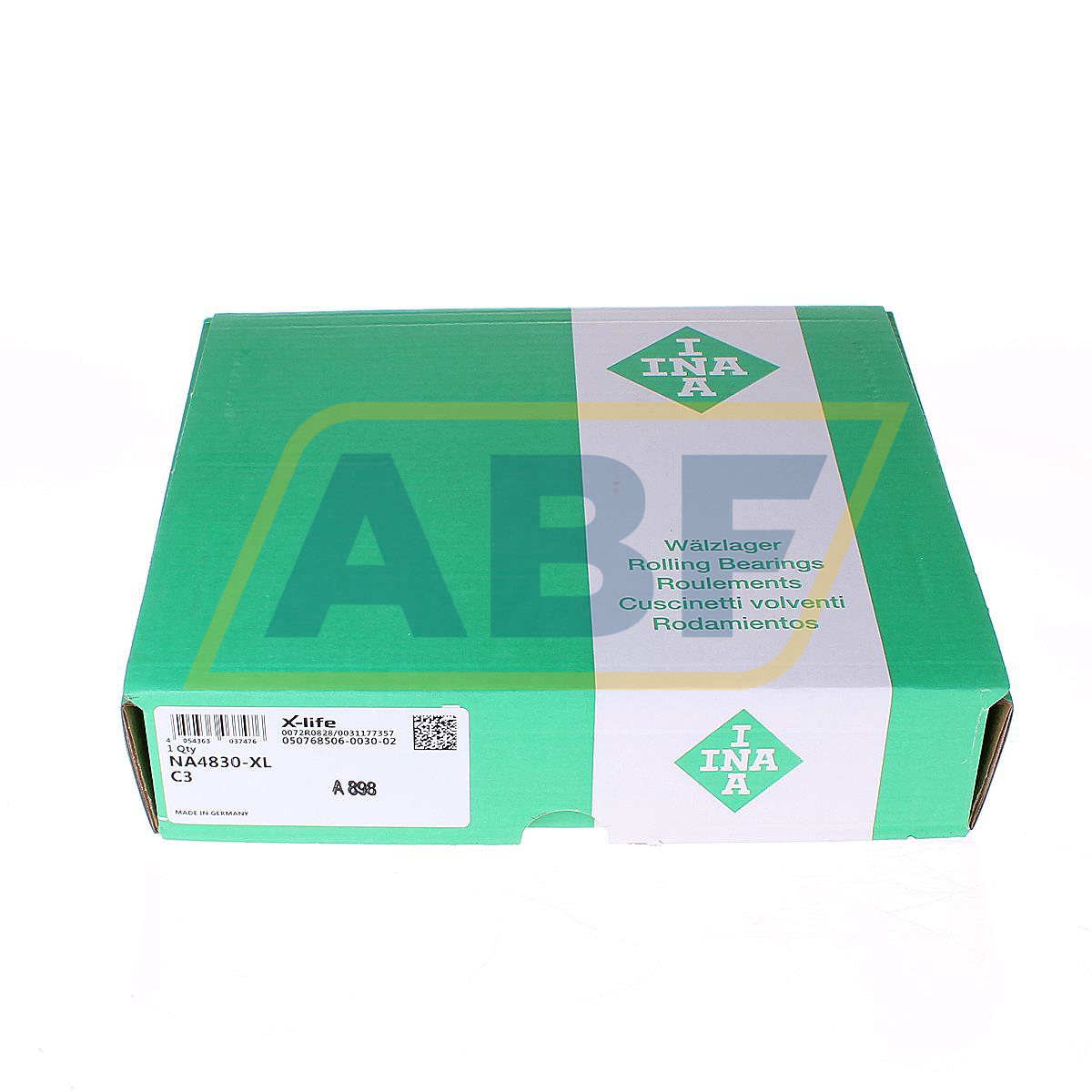

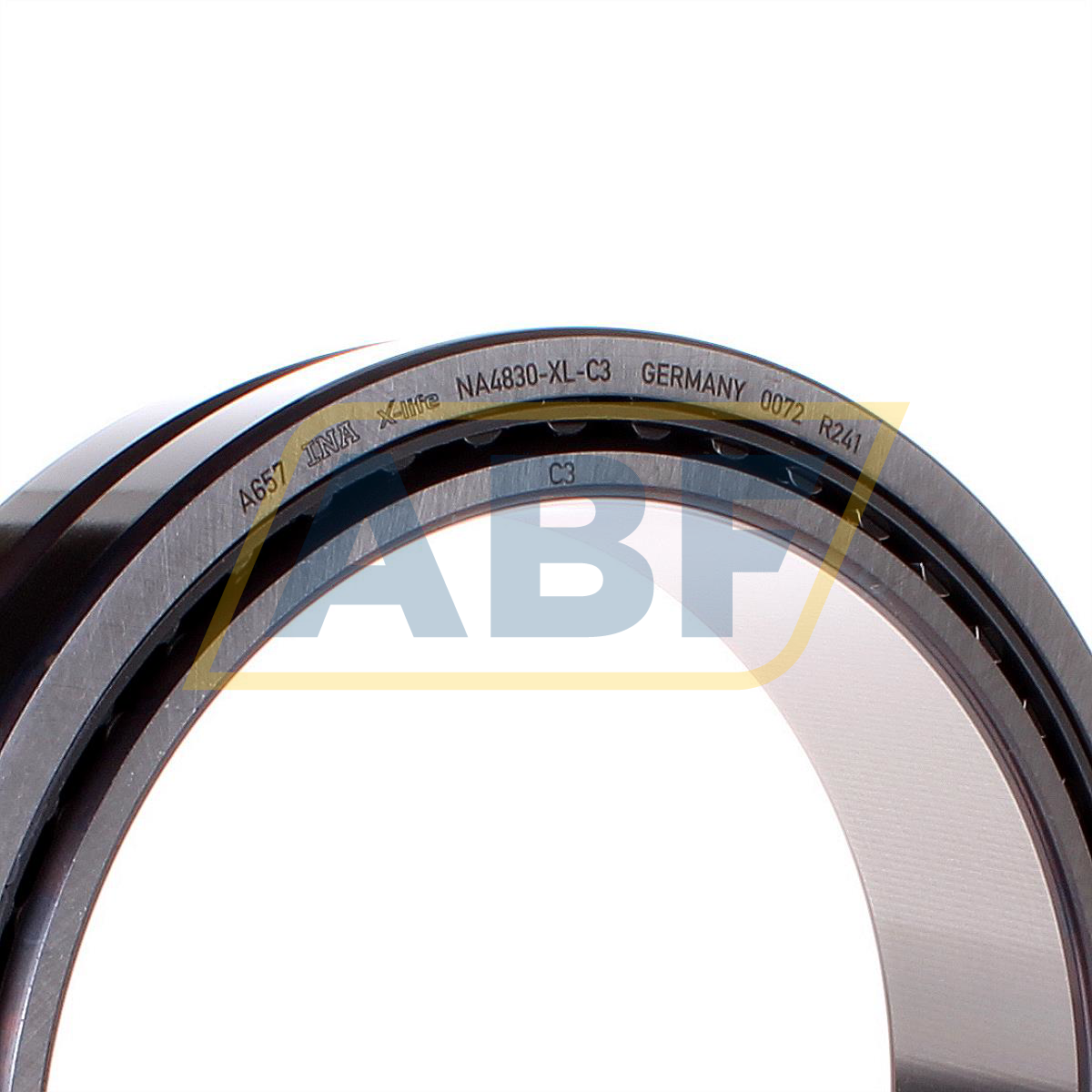

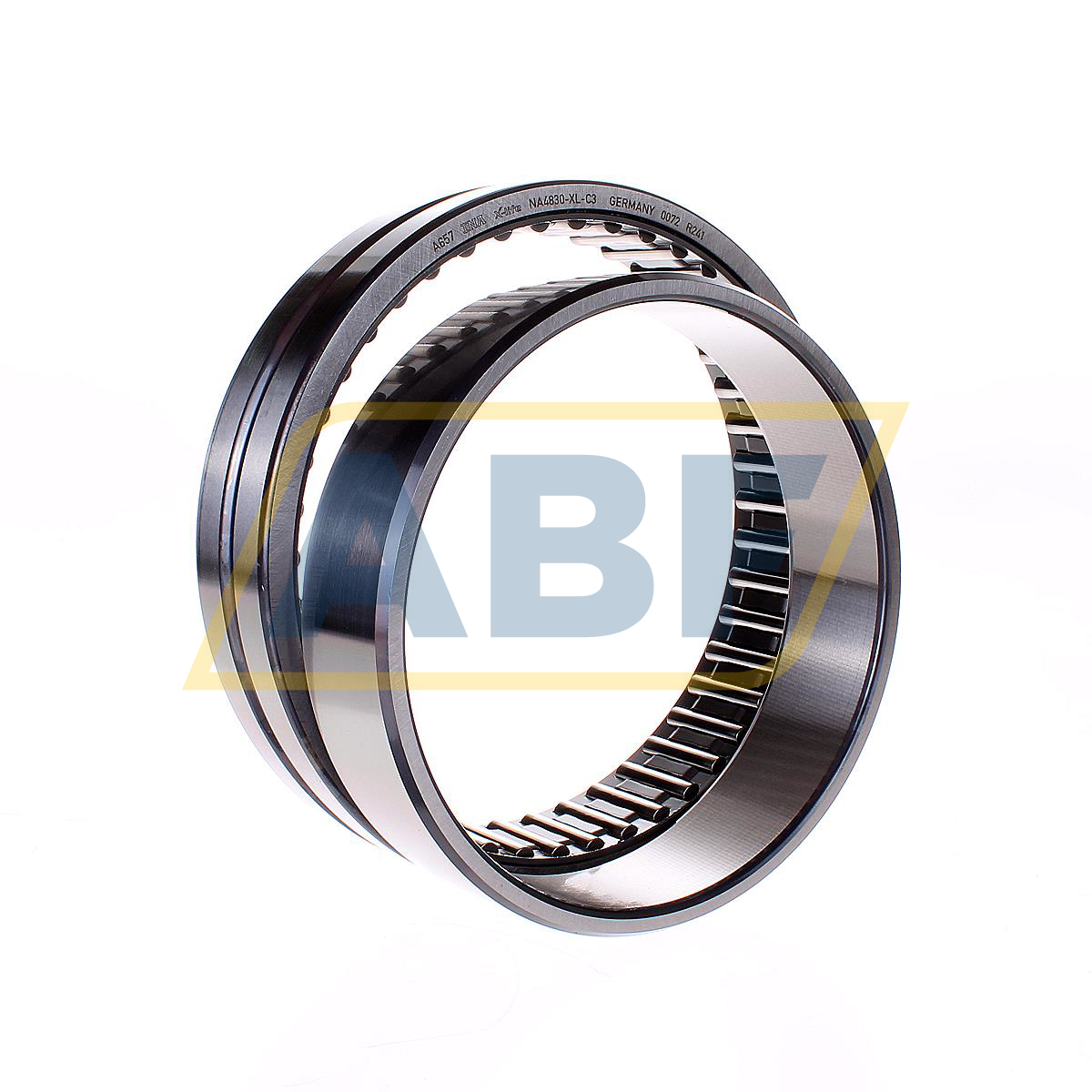

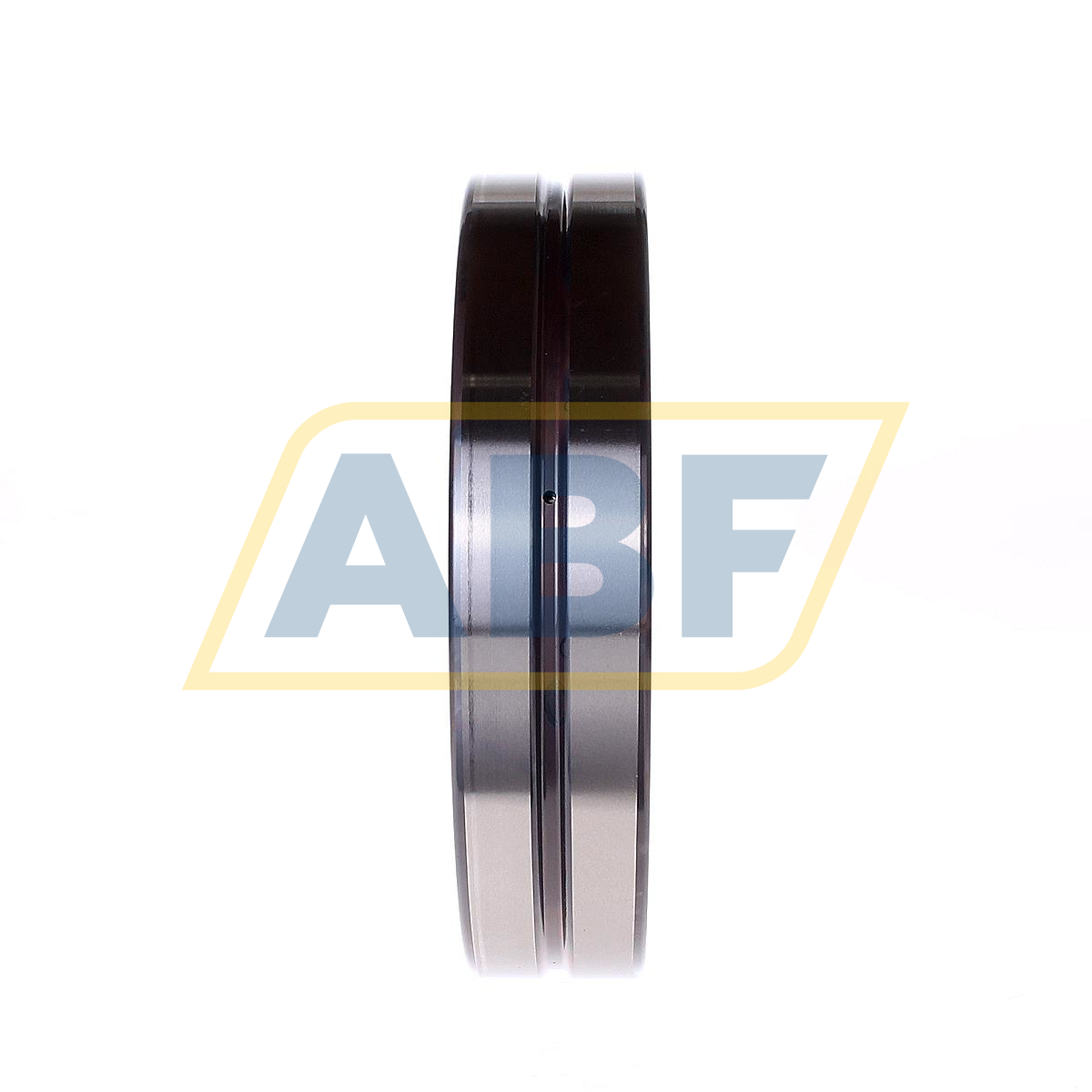

NA4830-XL-C3 INA

Needle roller bearings NA48, dimension series 48, to DIN 617/ISO 1206

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

NA4830-XL-C3 INA

15 pcs in stock

This product is available from stock
Orders placed before 6 p.m. CET will be shipped today
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Loading equivalents

Specifications

Availability 15 pcs
Brand INA
Item Number NA4830-XL-C3 INA
Manufacturer Part Number 0507685060030
Also known as NA4830-C3
EAN 4054363037476
Category Needle Roller and Cage Assembly

Weight and Dimensions

Inner (d) MM 150
Outer (D) MM 190
Width (B) MM 40
Inner (d) Inch 5.9055
Outer (D) Inch 7.4803
Width (B) Inch 1.5748
Weight (kg) 2.72

Product Properties

Seal No Seal

Data from Schaeffler (medias)

Width (b) mm 40
Basic static load rating, radial (C 0r) 400000
Limiting speed (n G) 2850
Reference speed (n ϑr) 1780
ECLASS number 23-05-09-07
ECLASS2 number 23-05-09-07

Suffix description

XL X-Life
C3 Internal Clearance Larger Than Normal

Downloads & Links
