Seal
2RH - High Speed Low Friction Seal on Two Sides
Running Surface
Standard
Data from Schaeffler (medias)
Height (C) mm
22,2
Basic dynamic load rating, radial (C r w)
22200
Basic static load rating, radial (C 0r)
17200
Speed on permanent grease lubrication (n D G)
4850
ECLASS number
23-05-15-90
ECLASS2 number
23-05-15-90
Medias description
Track roller LR..-2HRS-TVH-XL, two-row, no plastic tyre
Suffix description
2HRSLip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
TVHMoulded Polyamide Cage Snap-Type, Rolling Element Riding

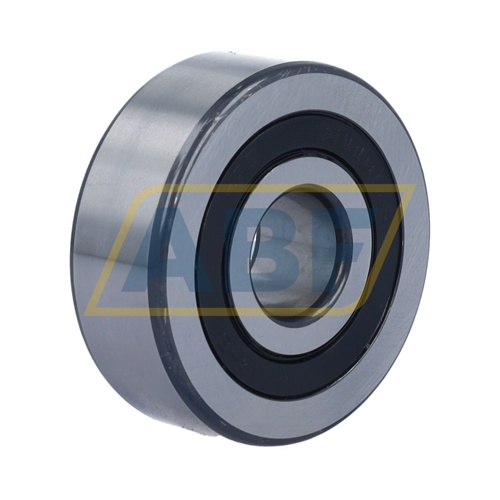

The LR5304-2HRS-TVH-XL INA is a ball-bearing Yoke type track roller, of which the rolling elements combine low friction with high precision. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.
The LR5304-2HRS-TVH-XL INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.
