Also known as
LM603049/011 (-20024)
LM603049/LM603011/Q
LM603049-99401
SET37
EAN7316570320664
CategoryTapered Roller Bearing Single Row
Weight and Dimensions
Inner (d) MM
45,24
Outer (D) MM
77,78
Width (B) MM
19,84
Inner (d) Inch
1.7812
Outer (D) Inch
3.0625
Width (B) Inch
0.7812
Weight (kg)
0.36
Product Properties
Precision
Standard Precision
Suffix description
QTQ-Line Execution. (100% Interchangeable With Basic Designation)
Product description

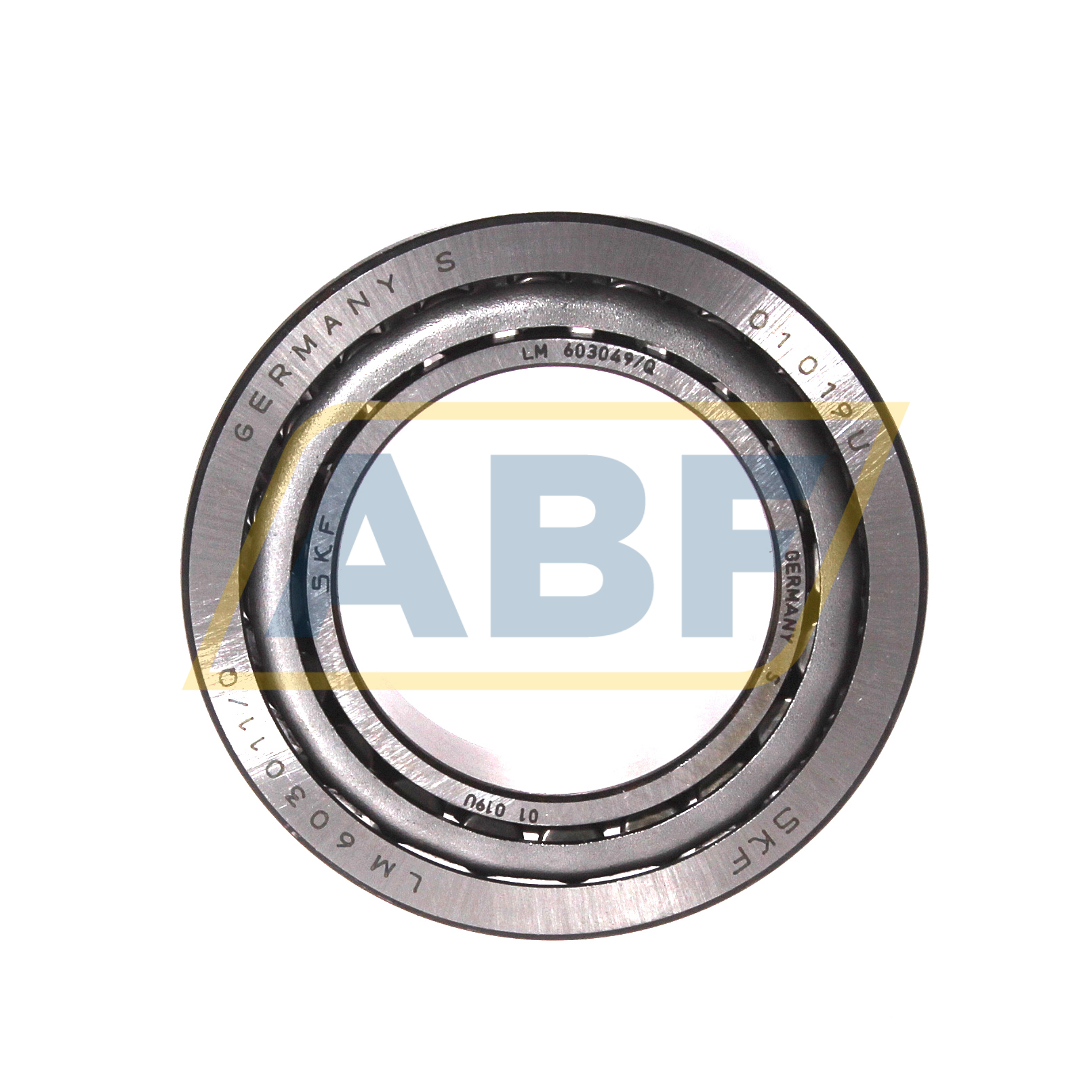

The LM603049/011/Q SKF is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

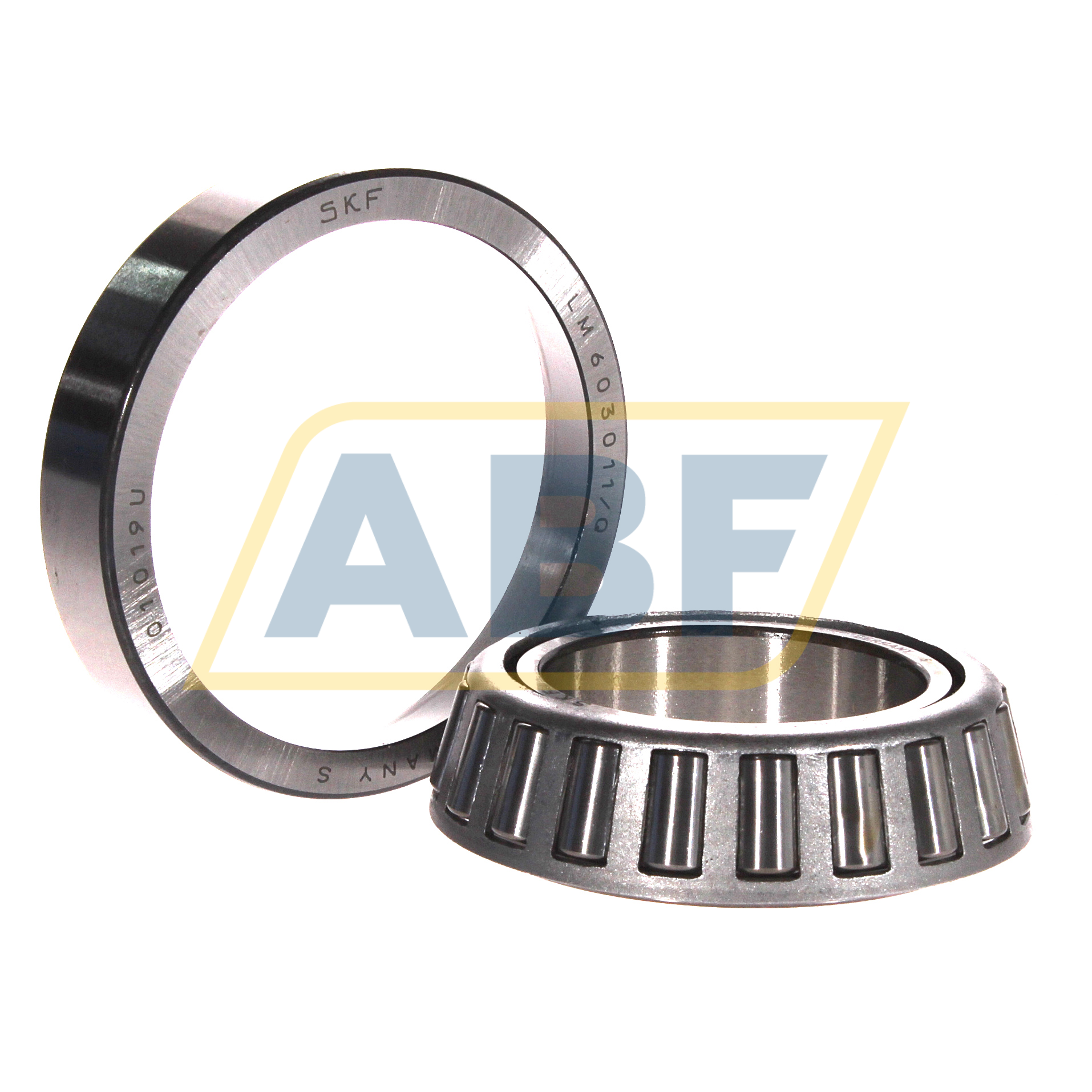

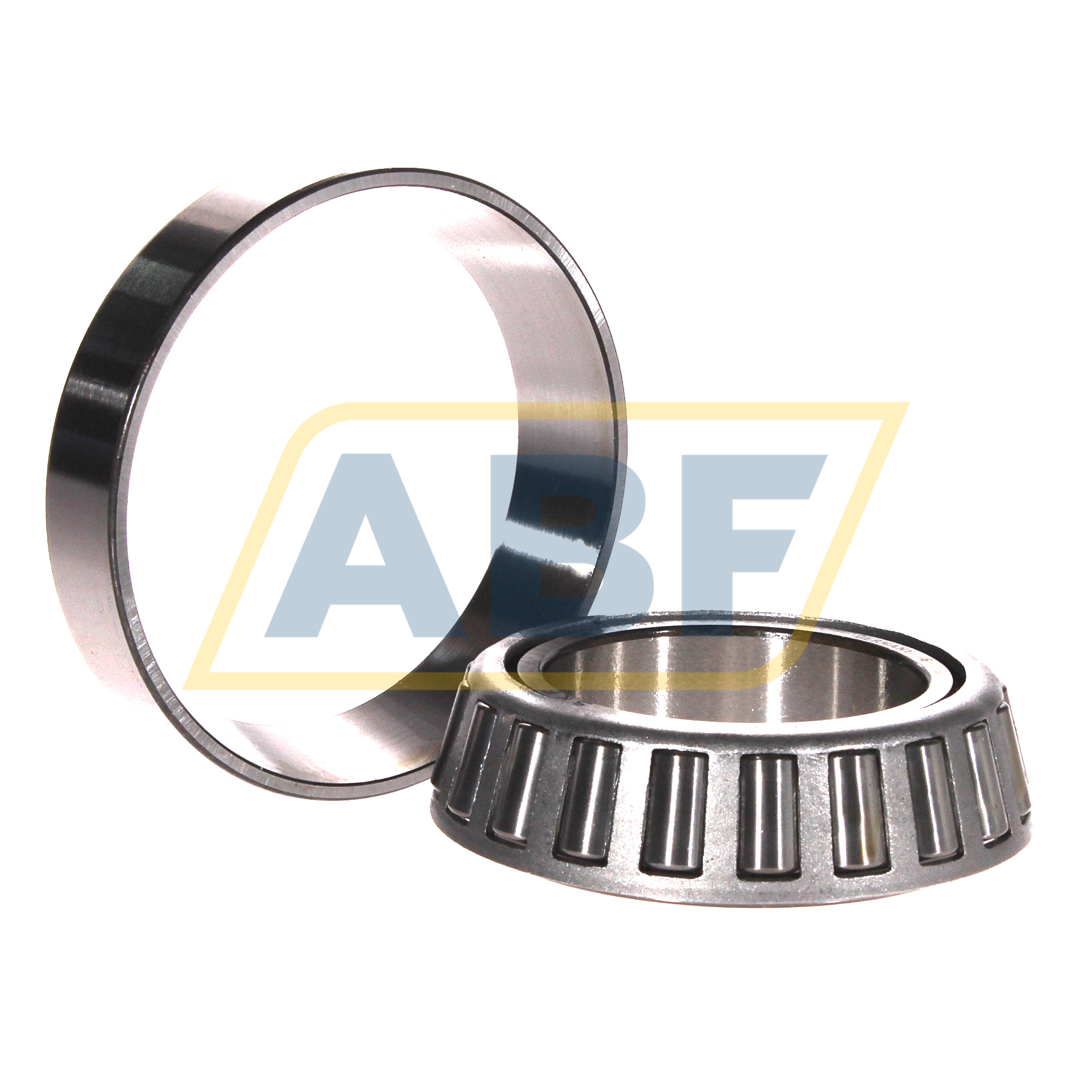

The LM603049/011/Q SKF is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.
