LFDL52-B INA

Carriage LFDL-B, bogie carriage

LFDL52-B INA
LFDL52-B INA
LFDL52-B INA
LFDL52-B INA
LFDL52-B INA
LFDL52-B INA
LFDL52-B INA
LFDL52-B INA

6 pcs in stock

  • This product is available from stock
  • Orders placed before 6 p.m. CET will be shipped today
  • Payment by invoice possible
  • Track your order with track & trace
  • Official Schaeffler distributor
Loading equivalents

Specifications

Weight and Dimensions

Data from Schaeffler (medias)

Suffix description

Downloads & Links

Product description

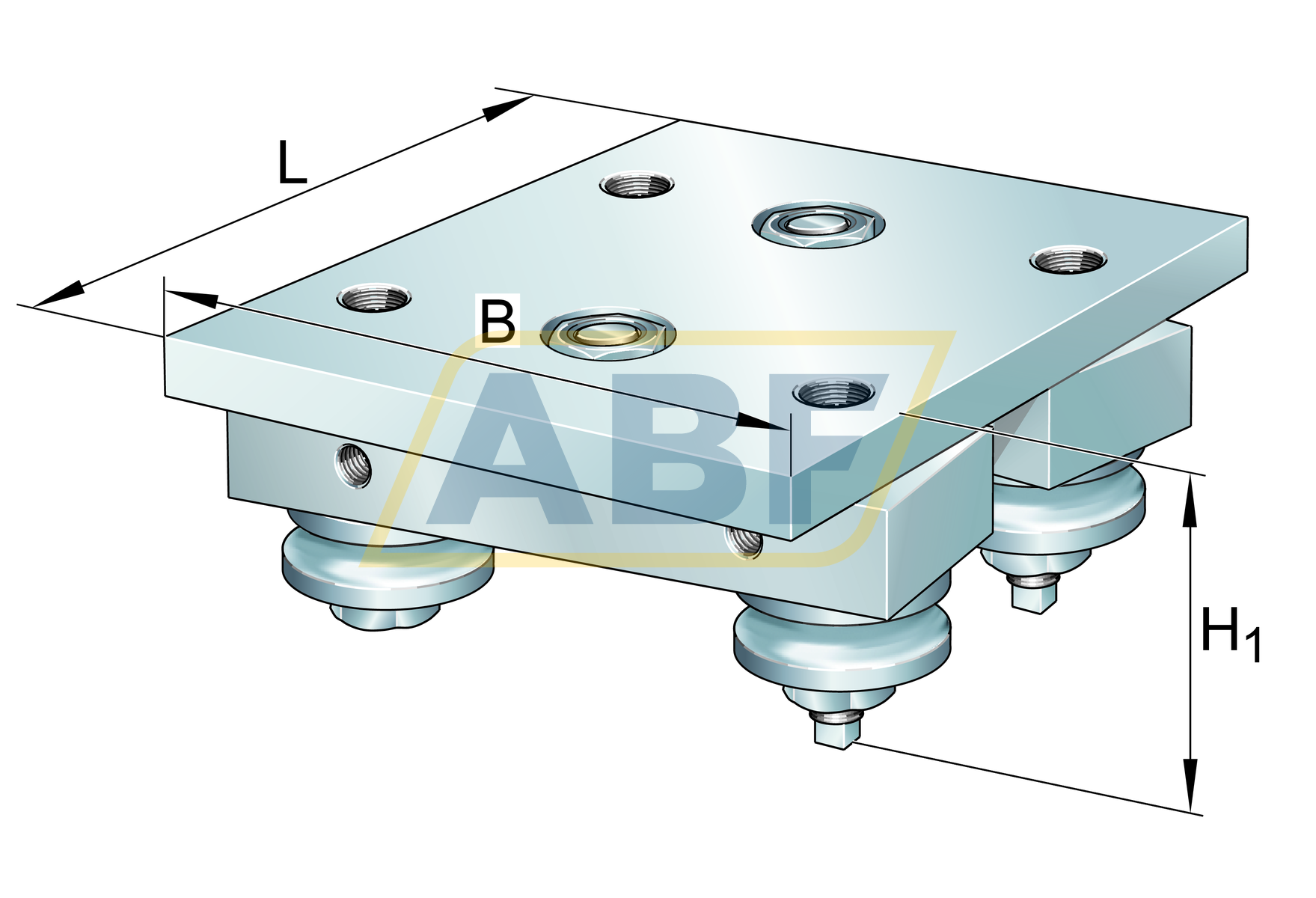

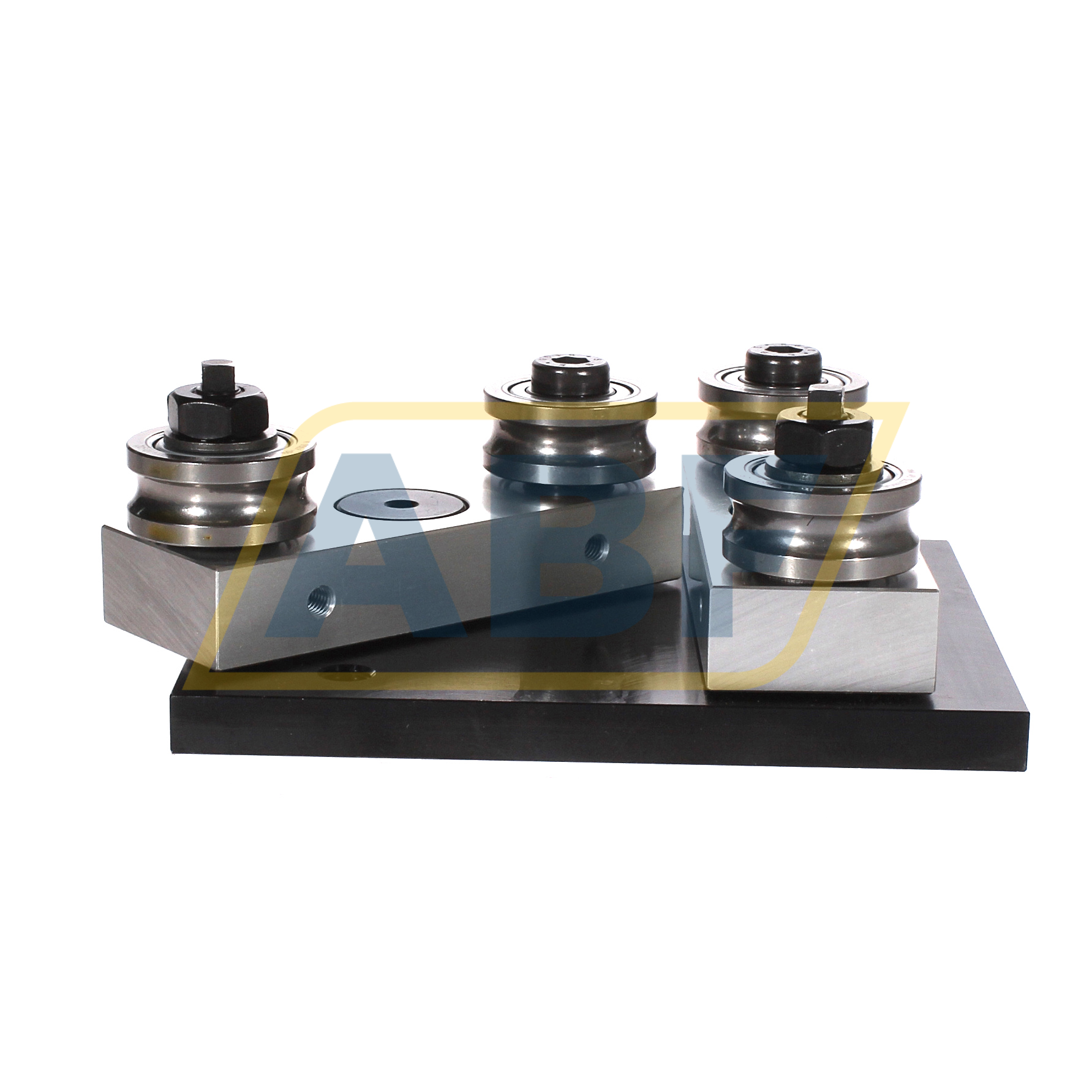

The LFDL52-B INA is a bogie carriage with adjustable clearance for use with closed curved, oval and circular guides. This carriage can be used for curved tracks. Straight INA rail segments connect seamlessly to the curved sections, allowing easy construction of tracks of your design. The carriage consists of a steel carriage plate and two aluminium swivel brackets. These brackets are supported axially and radially by roller bearings.

LFDL52-B INA carriages run quickly and quietly on INA profile at speeds of up to 10 m/s and a maximum acceleration of 50 m/s2. They can be used in combination with all rail segments of the appropriate size. Also, the track roller bearings feature double-sided gap seals and are self-lubricating and maintenance-free during their service life.
