Specifications
Availability21 pcs
BrandINA
Item NumberKRV40-PP-A-NMT INA
Manufacturer Part Number0055916600078
EAN4054362448532
CategoryCam Follower
Weight and Dimensions
Inner (d) MM
18
Outer (D) MM
40
Width (B) MM
20
Inner (d) Inch
0.7087
Outer (D) Inch
1.5748
Width (B) Inch
0.7874
Weight (kg)
0.255
Product Properties
Seal
2L - LS-seal at Both Sides
Excenterring
Other Mounting Method
Running Surface
Standard
Data from Schaeffler (medias)
Fit diameter of roller stud / stud (d 1) mm
18
Width (b) mm
58
Basic dynamic load rating, radial (C r w)
14700
Basic static load rating, radial (C 0r)
27000
Speed on permanent grease lubrication (n D G)
1400
ECLASS number
23-05-15-02
ECLASS2 number
23-05-15-02
Medias description
Stud type track rollers KRV..-PP, with axial guidance, full complement needle roller set, plastic axial plain washers on both sides
Suffix description
PPLip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
AAlteration In Internal Construction. Identical To Old Notation

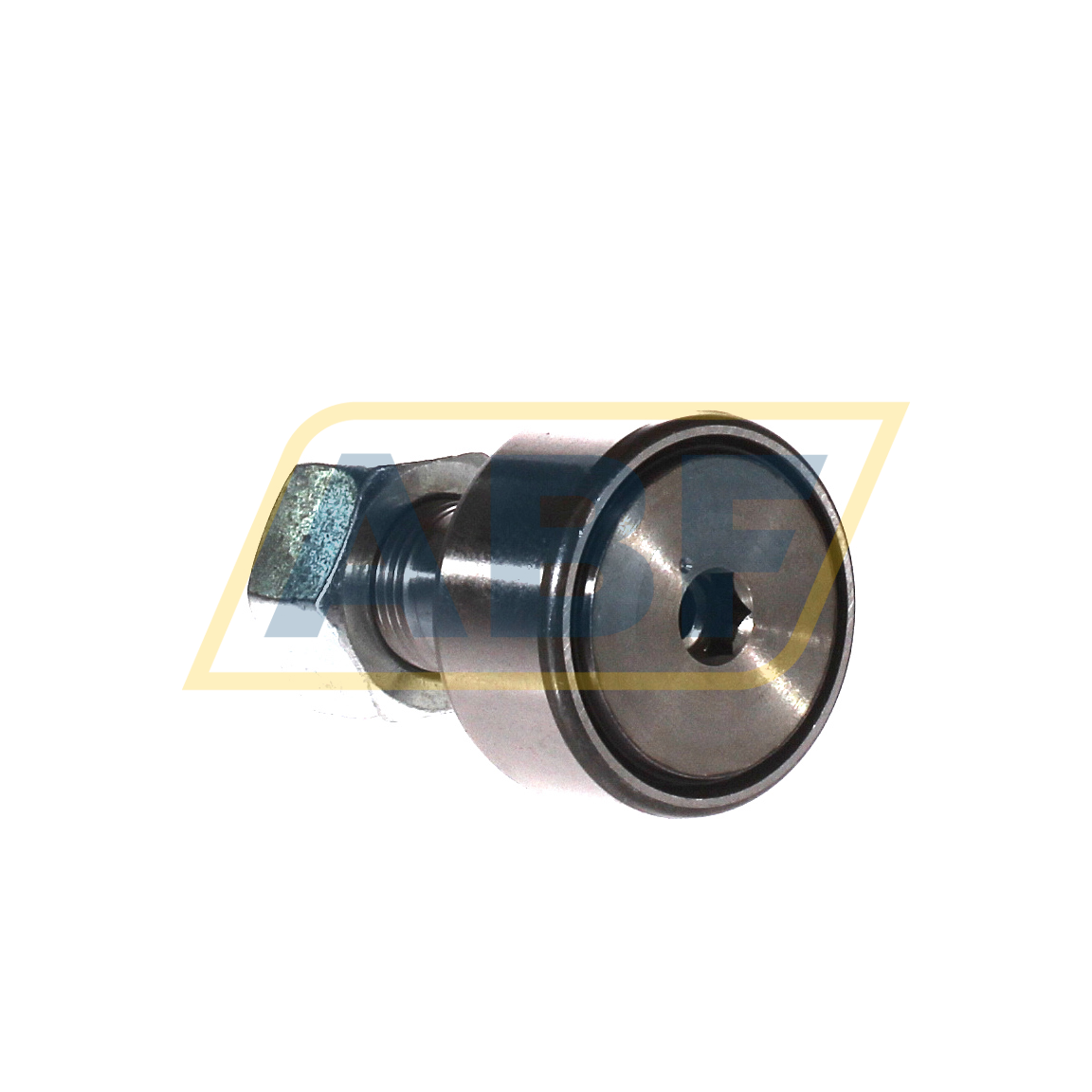

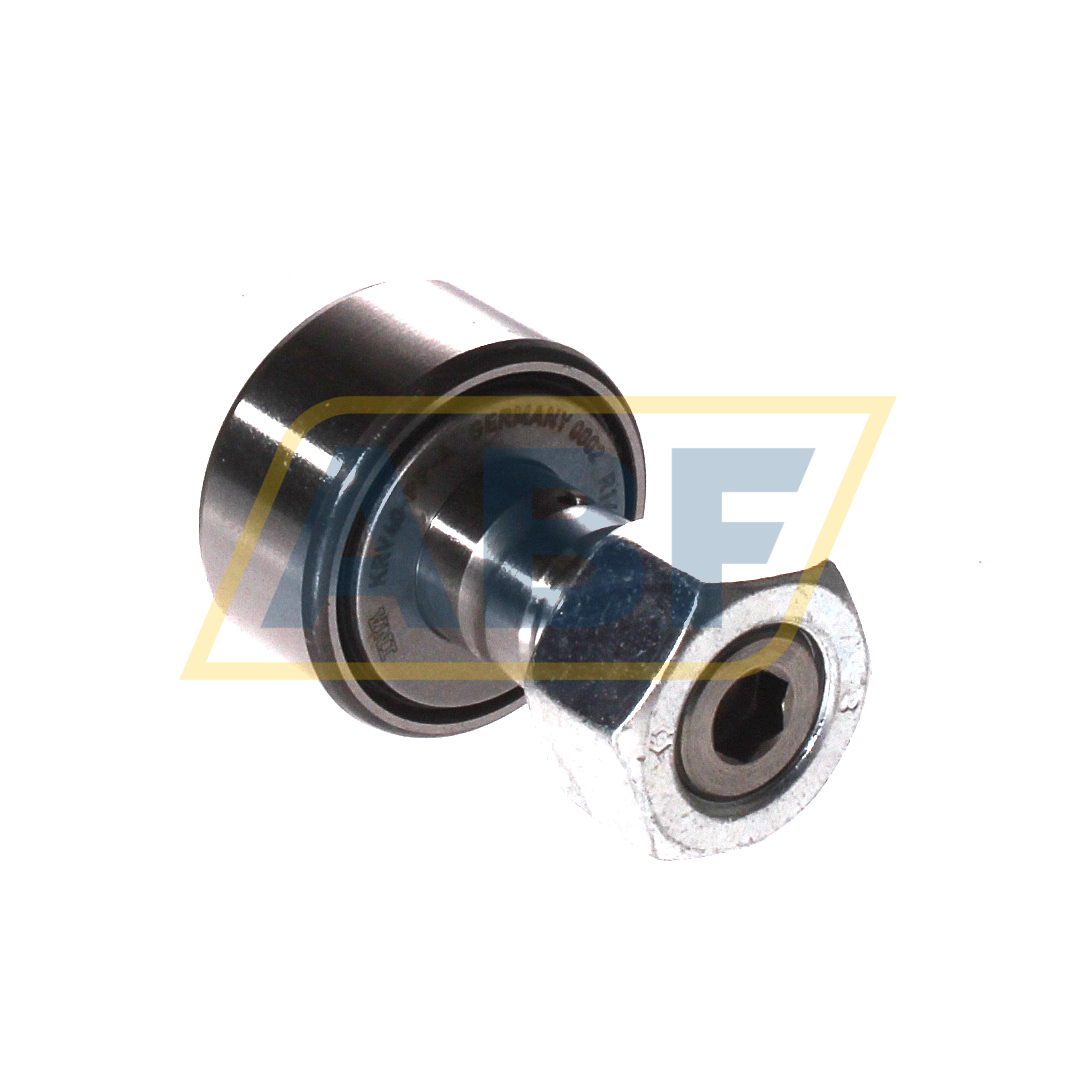

The KRV40-PP-A-NMT INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The KRV40-PP-A-NMT INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this cam follower radially highly loadable. Full complement cam followers are also more shock-resistant than cam followers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.
