Specifications
Availability51 pcs
BrandINA
Item NumberKR19-X-PP-A INA
Manufacturer Part Number0057426760000
EAN4012802428247
CategoryCam Follower
Weight and Dimensions
Inner (d) MM
8
Outer (D) MM
19
Width (B) MM
11
Inner (d) Inch
0.315
Outer (D) Inch
0.748
Width (B) Inch
0.4331
Weight (kg)
0.0285
Product Properties
Seal
2L - LS-seal at Both Sides
Excenterring
Other Mounting Method
Running Surface
Cylindrical
Data from Schaeffler (medias)
Fit diameter of roller stud / stud (d 1) mm
8
Width of the roller stud (B) mm
32
Basic dynamic load rating, radial (C r w)
3550
Basic static load rating, radial (C 0r)
4100
Speed on permanent grease lubrication (n D G)
11000
ECLASS number
23-05-15-02
ECLASS2 number
23-05-15-02
Medias description
Stud type track rollers KR..-PP, with axial guidance, plastic axial plain washers on both sides
Suffix description
XCylindrical Running Surface
PPLip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃

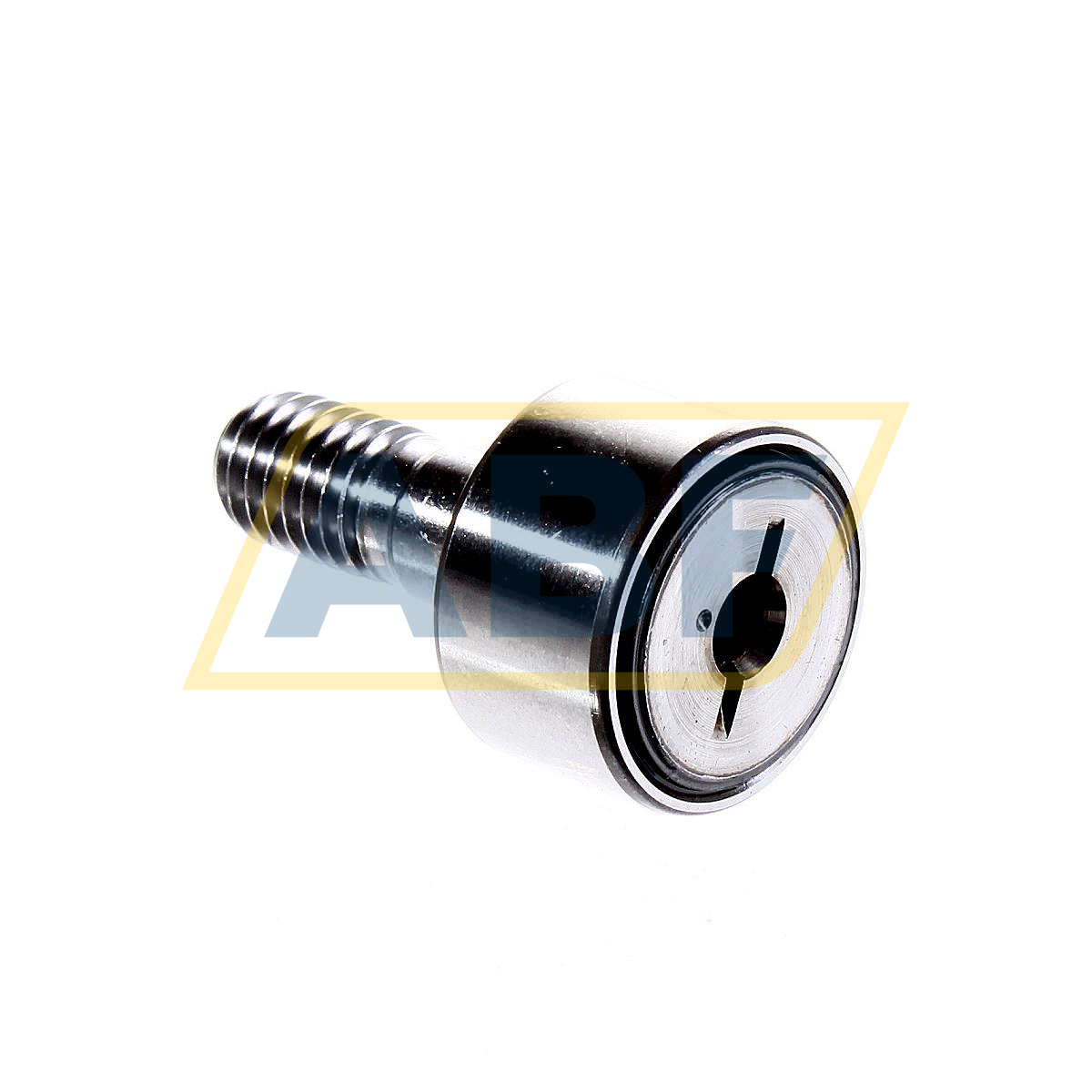

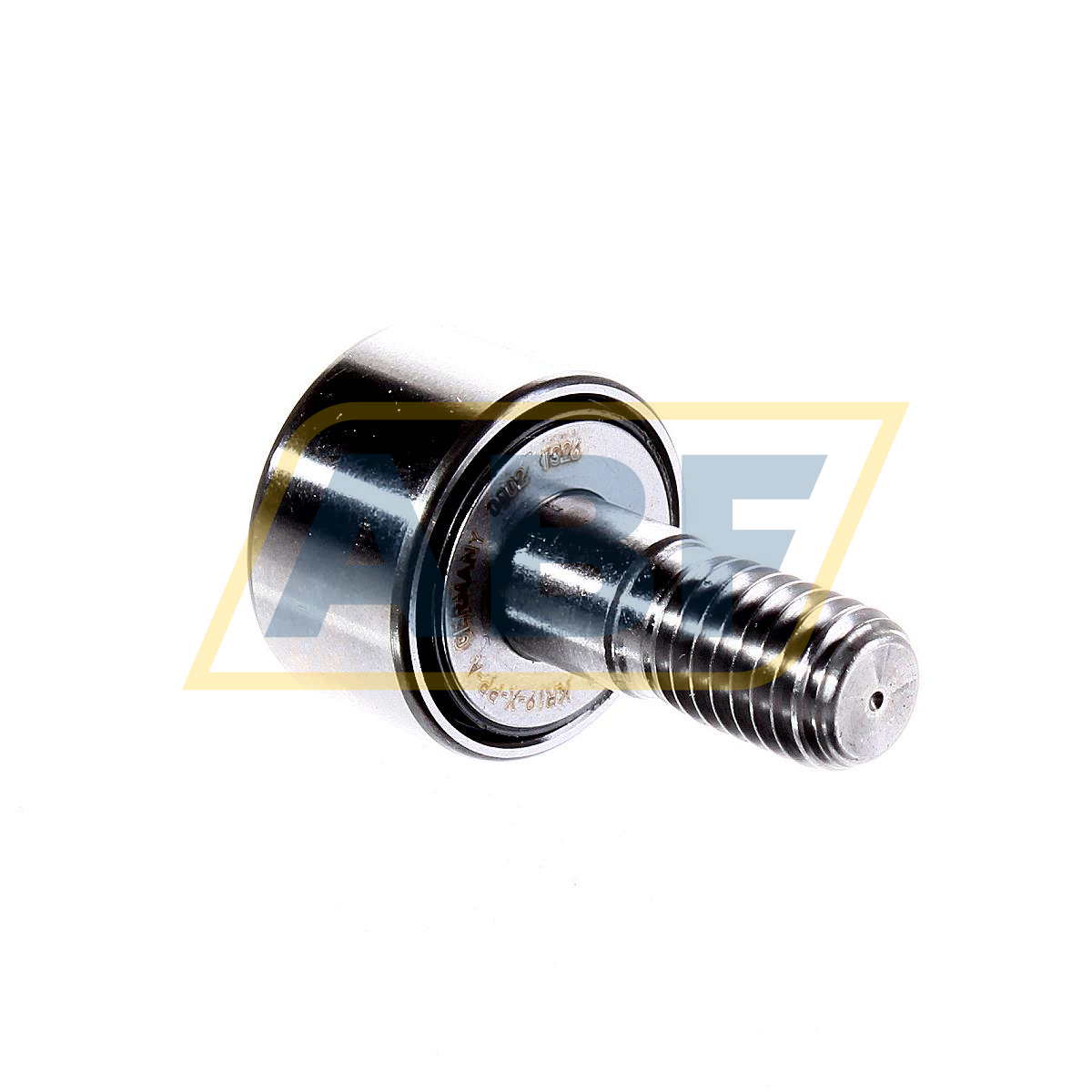

The KR19-X-PP-A INA is a cam follower with needle rollers. These rolling elements combine high load capacity with a compact design. Cam followers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Instead of an inner ring, they feature a solid, threaded stud, enabling easy mounting. Axial loads due to alignment errors or misalignment can be absorbed in both directions. They are not mounted in a housing bore, but a flat (counter) track provides support.
The KR19-X-PP-A INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement cam followers, allowing for higher rotational speeds and less heat generation. Common applications of cam followers include conveyor systems, linear guidance systems, and cam mechanisms.
