Also known as
KN2558PP
LBCD25A-2LS
LMES25UU
R0670-225-40
SPM25WW
TK25UU
EAN4047643207409

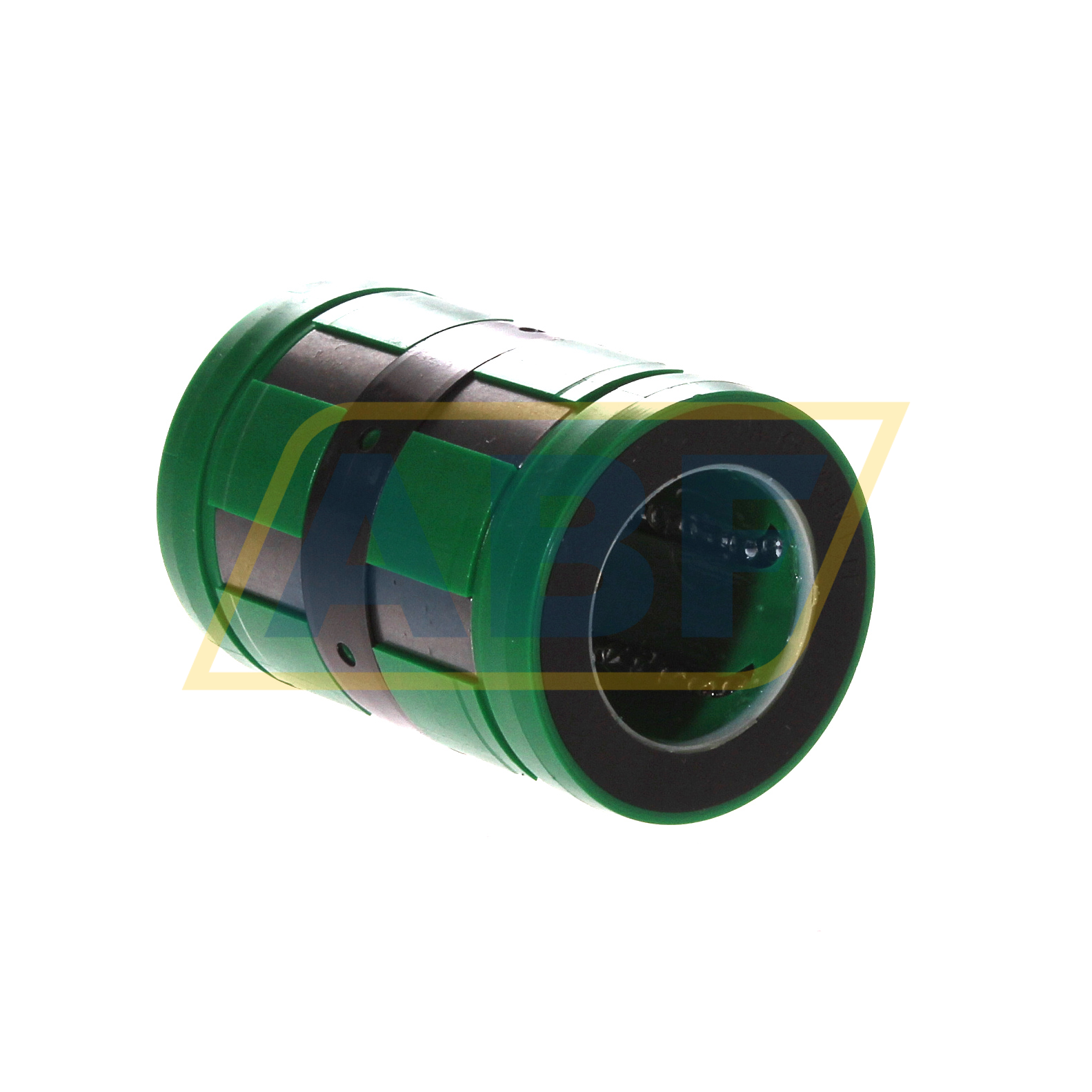

CategoryLinear Ball Bearing
Weight and Dimensions
Inner (d) MM
25
Outer (D) MM
40
Width (B) MM
58
Inner (d) Inch
0.9843
Outer (D) Inch
1.5748
Width (B) Inch
2.2835
Weight (kg)
0.083
Product Properties
Seal
2L - LS-seal at Both Sides
Data from Schaeffler (medias)
Length (L) mm
58
Load capacity dyn. (C min)
3100
Load capacity stat. (C 0 min)
2220
Load capacity stat. (C 0 max)
2850
ECLASS number
23-30-03-01
ECLASS2 number
23-30-03-01
Medias description
Linear ball bearings KN..-B-PP, Lightweight range, closed design, sealed on all sides, with relubrication facility, adjustable angle
Suffix description
BGuideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B
