Home › Needle Roller and Cage Assembly › HK3026 INA

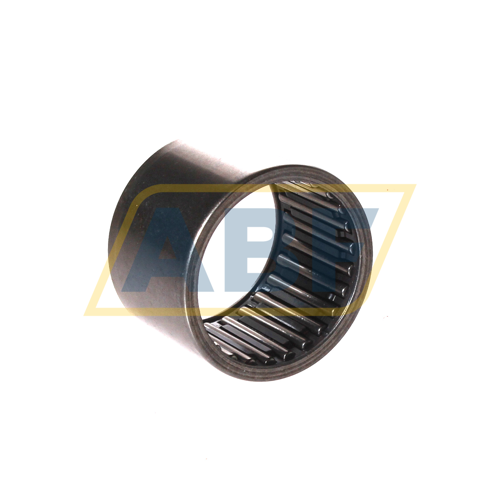

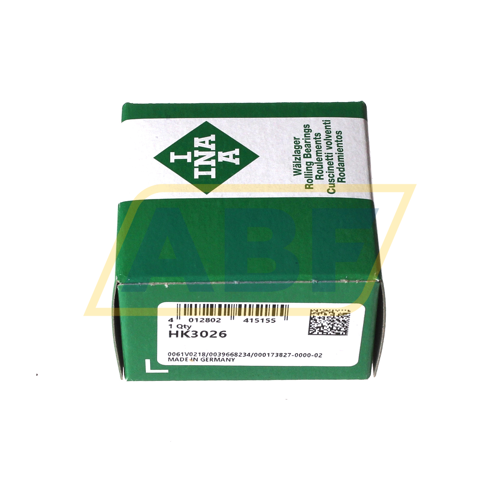

HK3026 INA

Drawn cup needle roller bearings with open ends HK, to DIN 618-1/ISO 3245

152 pcs in stock

This product is available from stock
Shipment until 18:00 CET on business days
Payment by invoice possible
Track your order with track & trace
Official Schaeffler distributor

Equivalents 3 equivalents with 31 pcs in stock

HK3026 SKF

1 pc

1 pc in basket

1 pc on quote list

Or change the QTY
HK3026F NTN

9 pcs

1 pc in basket

1 pc on quote list

Or change the QTY
HK3026 FBJ

21 pcs

1 pc in basket

1 pc on quote list

Or change the QTY

Specifications

Availability 152 pcs
Brand INA
Item Number HK3026 INA
Manufacturer Part Number 0001738270000
EAN 4012802415155
Category Needle Roller and Cage Assembly

Weight and Dimensions

Inner (d) MM 30
Outer (D) MM 37
Width (B) MM 26
Inner (d) Inch 1.1811
Outer (D) Inch 1.4567
Width (B) Inch 1.0236
Weight (kg) 0.053

Product Properties

Seal No Seal

Data from Schaeffler (medias)

Under roller diameter (F w) mm 30
Width (C) mm 26
Radial Static Load Rating C0r (N) 54000
Radial Dynamic Load Rating Cr (N) 28000
Basic static load rating, radial (C 0r) "54000.0000"
Limiting speed (n G) 8600
Limiting speed for grease lubrication (n G Grease) 5200
Reference speed (n ϑr) 6200
ECLASS number 23-05-09-05
ECLASS2 number 23-05-09-05
Medias description Drawn cup needle roller bearing open end HK, single row, with cage
