Specifications
Availability233 pcs
BrandINA

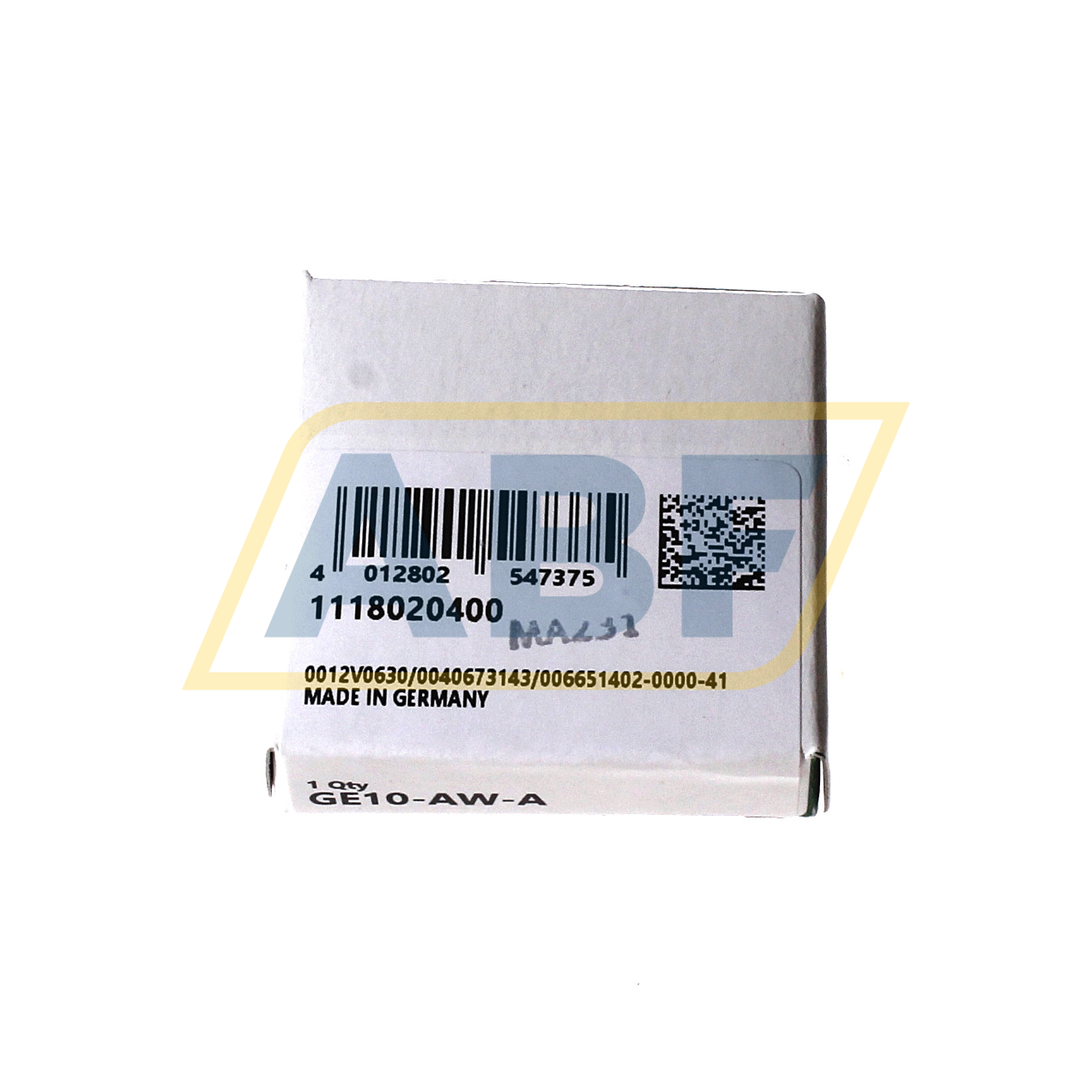

Item NumberGE10-AW-A INA
Manufacturer Part Number0066514020000
Also known as
GX10F
EAN4012802547375
CategorySpherical Plain Bearing
Weight and Dimensions
Inner (d) MM
10
Outer (D) MM
30
Width (B) MM
9,5
Inner (d) Inch
0.3937
Outer (D) Inch
1.1811
Width (B) Inch
0.374
Weight (kg)
0.044
Product Properties
Seal
No Seal
Contact Material
Steel on PTFE
Data from Schaeffler (medias)
Outside diameter bearing (D) mm
30
Height (T) mm
9,5
Width inner ring (B) mm
7,9
Axial Static Load Rating C0a (N)
122000
Axial Dynamic Load Rating Ca (N)
73200
ECLASS number
23-05-01-06
ECLASS2 number
23-05-01-06
Medias description
Axial spherical plain bearing, maintenance-free, DIN ISO 12240-3, shaft location washer curved surface with hard chromium coating, open design
Suffix description
AWSliding Contact Surface Hard Chromium/Elgoglide® (Elgoglide®=PTFE (Polyetrafluoroethylene))
AThe Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
The GE10-AW-A INA is an axial spherical plain bearing. Axial spherical plain bearings are two-piece plain bearings. They have no rolling elements, but consist of a shaft washer and a housing washer. The shaft washer has a convex surface. The housing washer has a concave inner surface. This construction gives spherical plain bearings their high load carrying capacity and capacity to accommodate misalignment.
The GE10-AW-A INA has a steel-on-PTFE sliding contact which makes it maintenance-free. PTFE is a special plastic. During the run-in period of these plain bearings, particles of PTFE are deposited on the opposite running surface. They fill in the small irregularities of the inner ring surface, creating a smooth surface. As a result, the components fit each other perfectly.
