Also known as
10X22213EAW33EE
BS2-2213-2CS
BS2-2213-2CS/VT143
BS2-2213-2RS
WS22213-E1-2RSR
WS22213-E1-XL-2RSR
EAN7316576193088
CategorySpherical Roller Bearing
Weight and Dimensions
Inner (d) MM
65
Outer (D) MM
120
Width (B) MM
38
Inner (d) Inch
2.5591
Outer (D) Inch
4.7244
Width (B) Inch
1.4961
Weight (kg)
1.6
Product Properties
Bore
C - Cylindrical Bore
Lubrication Enhancement
W33 - Lubrication Groove and 3 Holes
Seal
2RS - Rubber Seal on Two Sides
Cage Type
S - Steel or Standard Cage
Radial Internal Play
Cn Normal Internal Play
Precision
Standard Precision
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution
Non Vibrating Screen Execution
Suffix description
2RSSheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
VT143Extreme Pressure Grease. Grease Fill 25 to 35% With SKF LGEP2 Grease
Product description

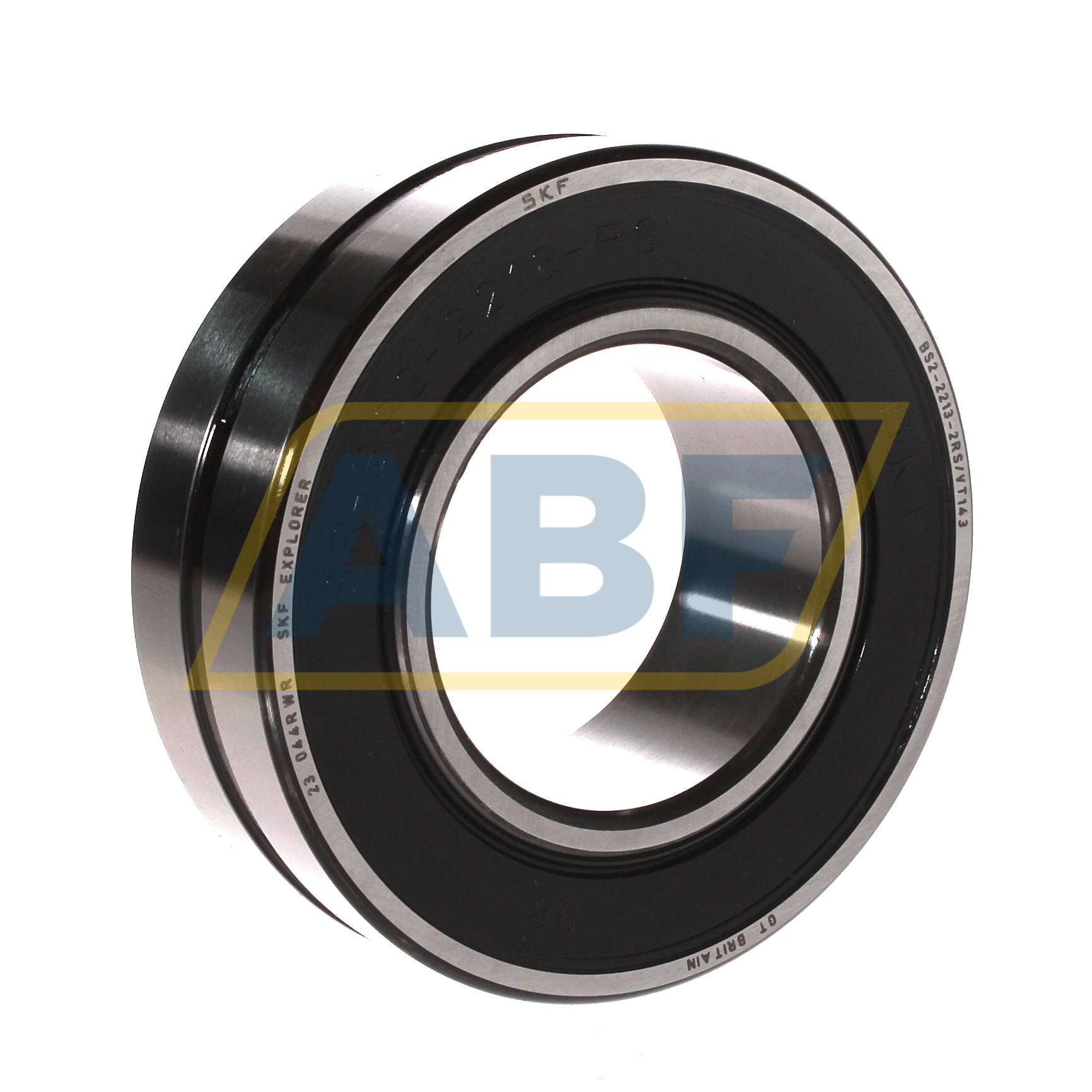

The BS2-2213-2RS/VT143 SKF is a spherical roller bearing with seals on both sides. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.
