Specifications

• Availability 22 pcs
• Brand FAG
• Item Number 7603025-2RS-TVP FAG
• Manufacturer Part Number 0386553650000
• EAN 4026677849472
• Category Angular Contact Thrust Ball Bearings, Single Direction

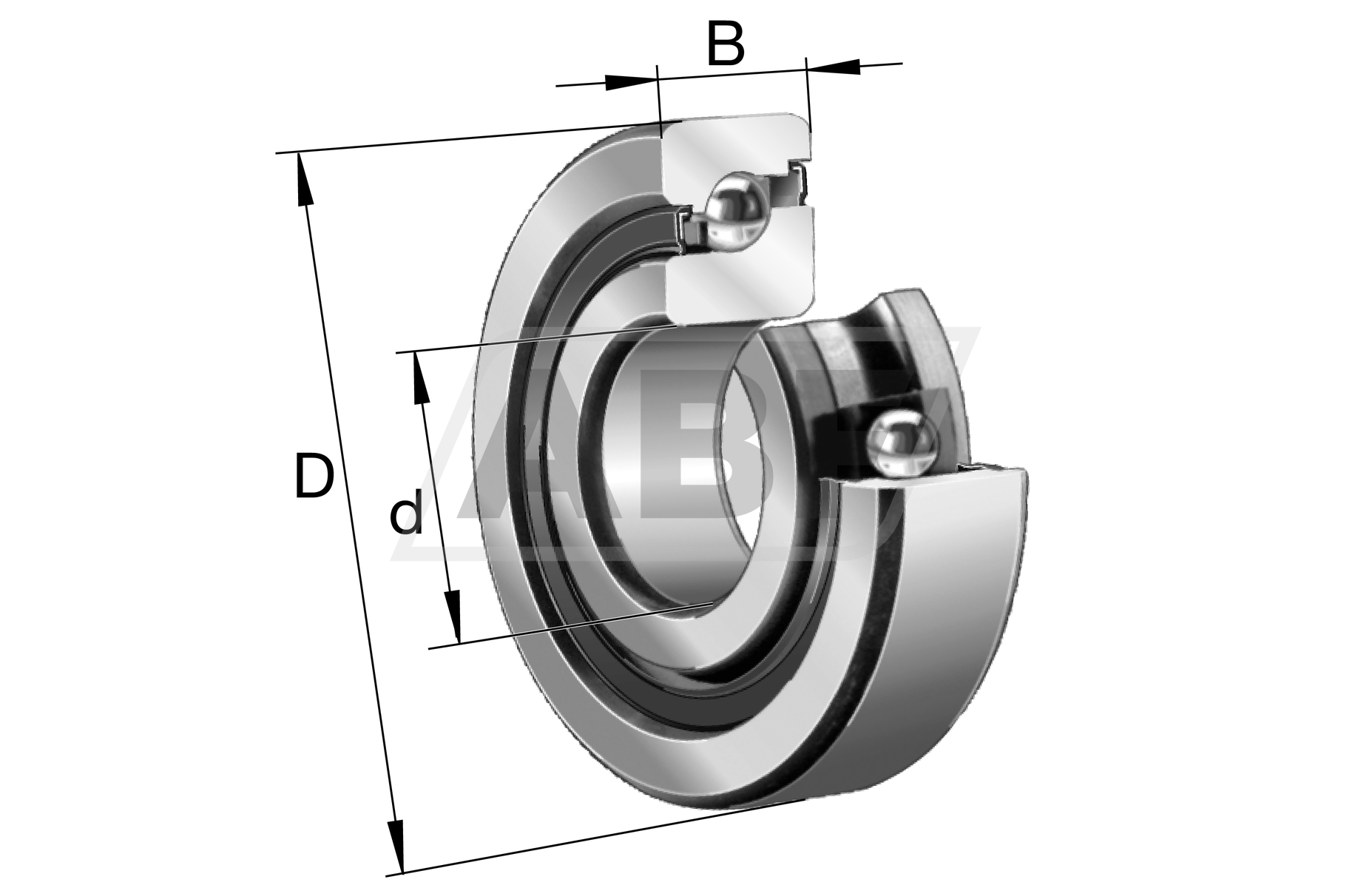

Weight and Dimensions

• Inner (d) MM 25
• Outer (D) MM 62
• Width (B) MM 17
• Inner (d) Inch 0.9843
• Outer (D) Inch 2.4409
• Width (B) Inch 0.6693
• Weight (kg) 0.273

Product Properties

• Cage Type P - Plastic Molded Cage
• Precision Standard Precision

Data from Schaeffler (medias)

• Width (b) mm 17
• Axial Static Load Rating C0a (N) 68000
• Axial Dynamic Load Rating Ca (N) 29500
• Limiting speed for grease lubrication (n G Grease) 5100
• Thermally safe operating speed (n ϑ) 3800
• ECLASS number 23-05-10-02
• ECLASS2 number 23-05-10-02
• Medias description Axial angular contact ball bearings 7603..-2RS, single direction, with contact angle a = 60°, restricted tolerances, lip seals on both sides
