Specifications
Availability23 pcs
BrandSKF
Item Number7314BECBM SKF
EAN7316577065810
CategoryAngular Contact Ball Bearing Single Row
Weight and Dimensions
Inner (d) MM
70
Outer (D) MM
150
Width (B) MM
35
Inner (d) Inch
2.7559
Outer (D) Inch
5.9055
Width (B) Inch
1.378
Weight (kg)
2.9
Product Properties
Seal
No Seal
Cage Type
M - Brass Cage
Precision
Standard Precision
Contact Angle
40 degrees
Pairing
No pairing
Axial Internal Clearance / Preload
CB - Normal Axial Clearance
Lubrication
Standard Lubrication
Suffix description
BESingle Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
CBBearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting
MMachined Window-Type Brass Cage, Ball Centered, Different Designs Are Identified By A Figure, e.g. M1
Product description

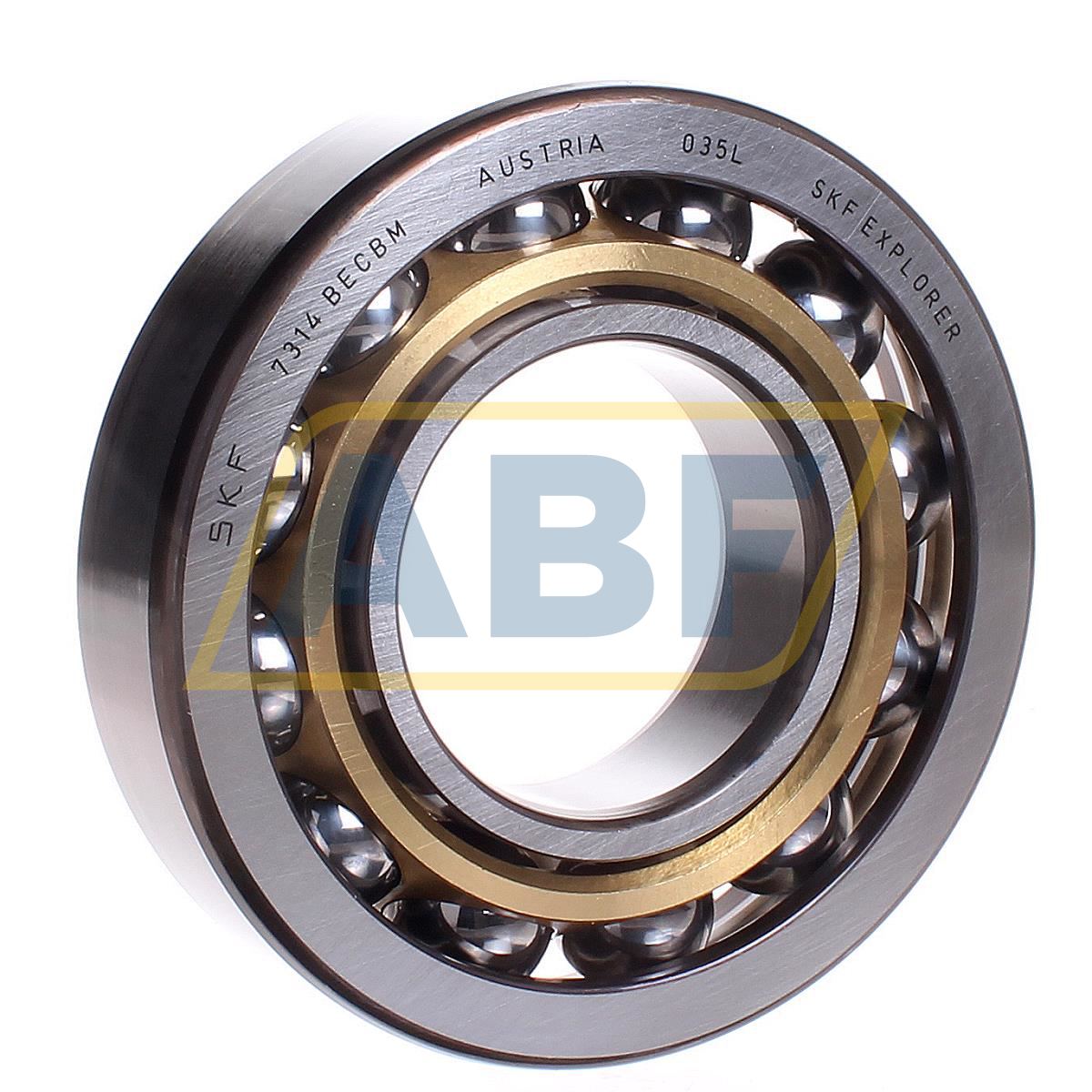

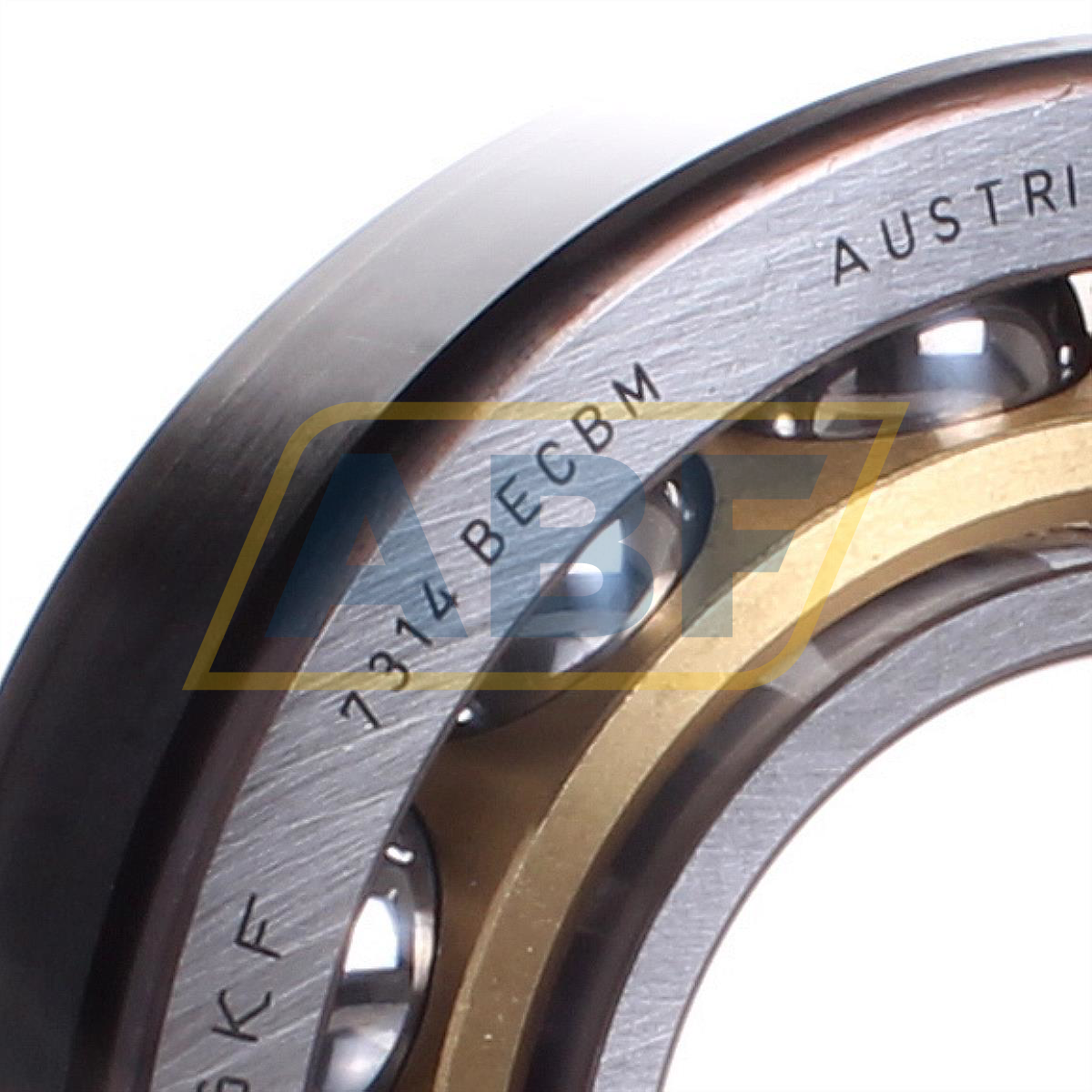

The 7314BECBM SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.
The 7314BECBM SKF is suitable for universal matching. Bearings for universal matching can be assembled directly beside each other various arrangements. No shims or other spacers are required to obtain the predetermined clearance or preload and/or even load distribution. Paired mounting is used if the load carrying capacity of a single bearing is insufficient, or if there are combined or axial loads in both directions. When using a CB bearing set in X or O arrangement, the axial clearance in unassembled condition is Normal (standard).
