Loading equivalents
Specifications
Availability21 pcs
BrandSKF
Item Number7312BECBJ SKF
EAN7316570329247
CategoryAngular Contact Ball Bearing Single Row
Weight and Dimensions
Inner (d) MM
60
Outer (D) MM
130
Width (B) MM
31
Inner (d) Inch
2.3622
Outer (D) Inch
5.1181
Width (B) Inch
1.2205
Weight (kg)
1.708
Product Properties
Seal
No Seal
Cage Type
S - Steel or Standard Cage
Precision
Standard Precision
Contact Angle
40 degrees
Pairing
No pairing
Axial Internal Clearance / Preload
CB - Normal Axial Clearance
Lubrication
Standard Lubrication
Suffix description
BESingle Row Angular Contact Ball Bearing With A 40° Contact Angle And Optimized Internal Design
CBBearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Normal Axial Internal Clearance Before Mounting
JPressed Window-Type Steel Cage, Ball Centered
Product description

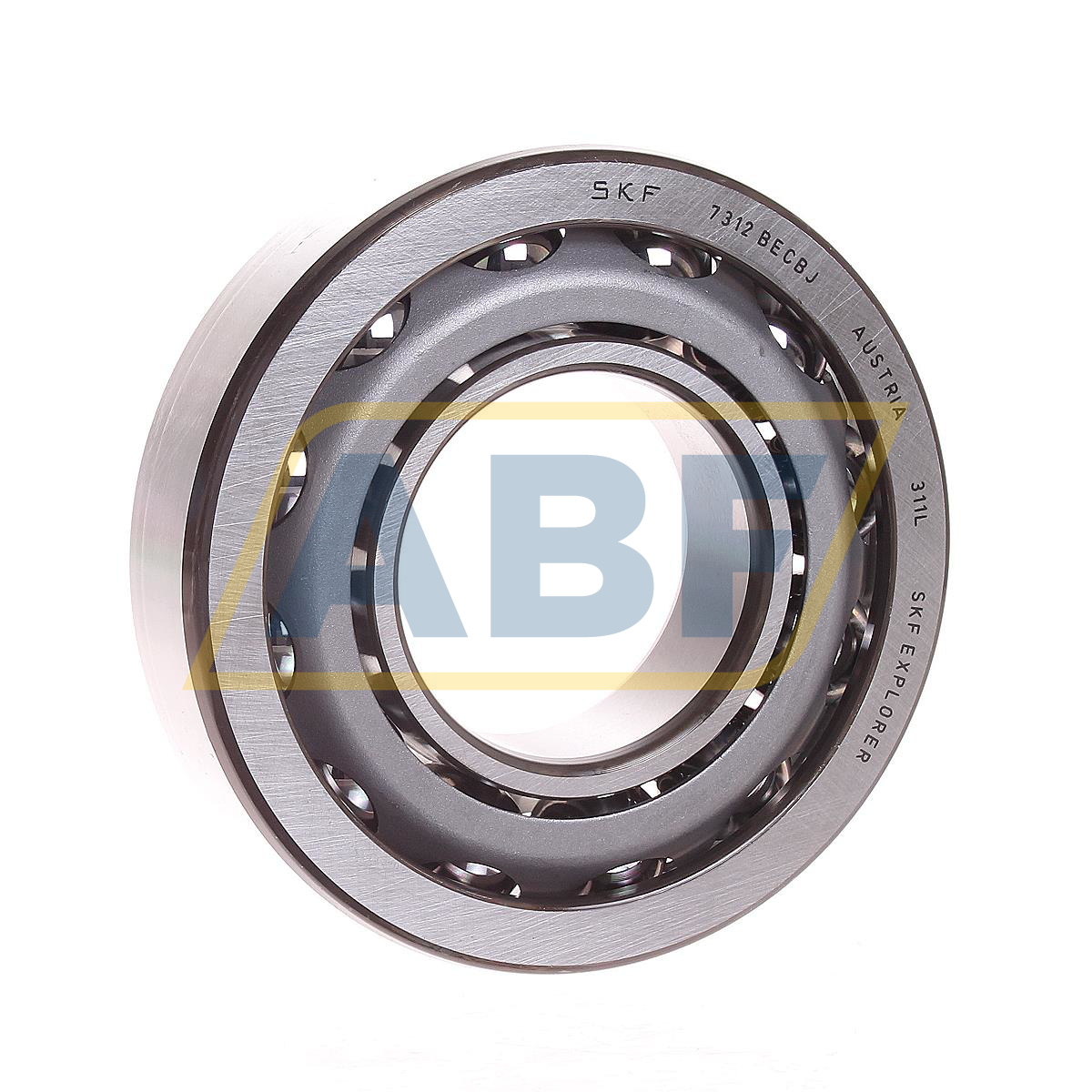

The 7312BECBJ SKF is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.
The 7312BECBJ SKF is suitable for universal matching. Bearings for universal matching can be assembled directly beside each other various arrangements. No shims or other spacers are required to obtain the predetermined clearance or preload and/or even load distribution. Paired mounting is used if the load carrying capacity of a single bearing is insufficient, or if there are combined or axial loads in both directions. When using a CB bearing set in X or O arrangement, the axial clearance in unassembled condition is Normal (standard).
