Specifications
Availability22 pcs
BrandFAG

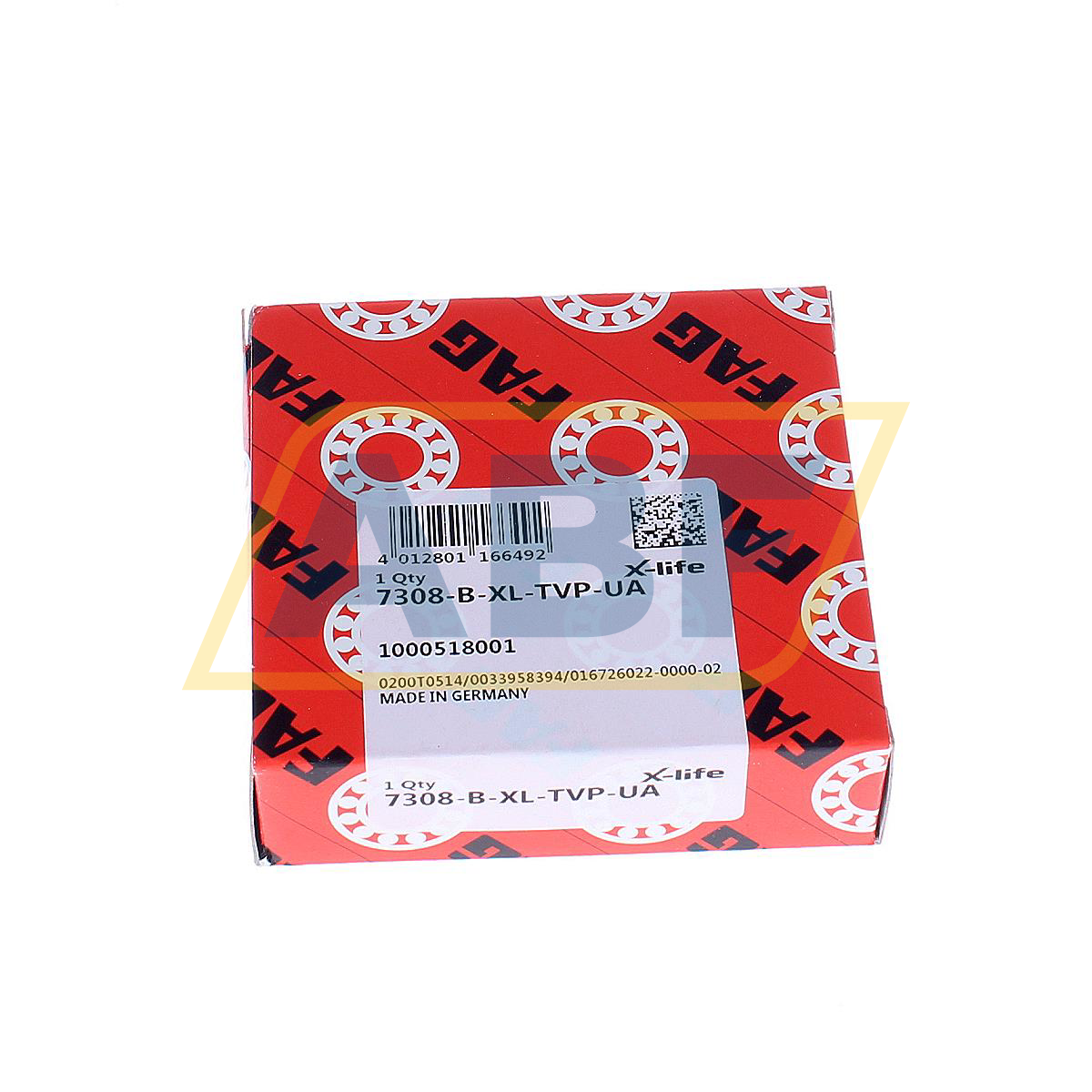

Item Number7308-B-XL-TVP-UA FAG
Manufacturer Part Number0167260220000
Also known as
7308-B-TVP-UA
EAN4012801166492
CategoryAngular Contact Ball Bearing Single Row
Weight and Dimensions
Inner (d) MM
40
Outer (D) MM
90
Width (B) MM
23
Inner (d) Inch
1.5748
Outer (D) Inch
3.5433
Width (B) Inch
0.9055
Weight (kg)
0.626
Product Properties
Seal
No Seal
Cage Type
P - Plastic Molded Cage
Precision
Standard Precision
Contact Angle
40 degrees
Pairing
G - Universal Pairing
Axial Internal Clearance / Preload
UA - Universal design for fitting in pairs, bearing pair has slight axial internal clearance in O and X arrangements

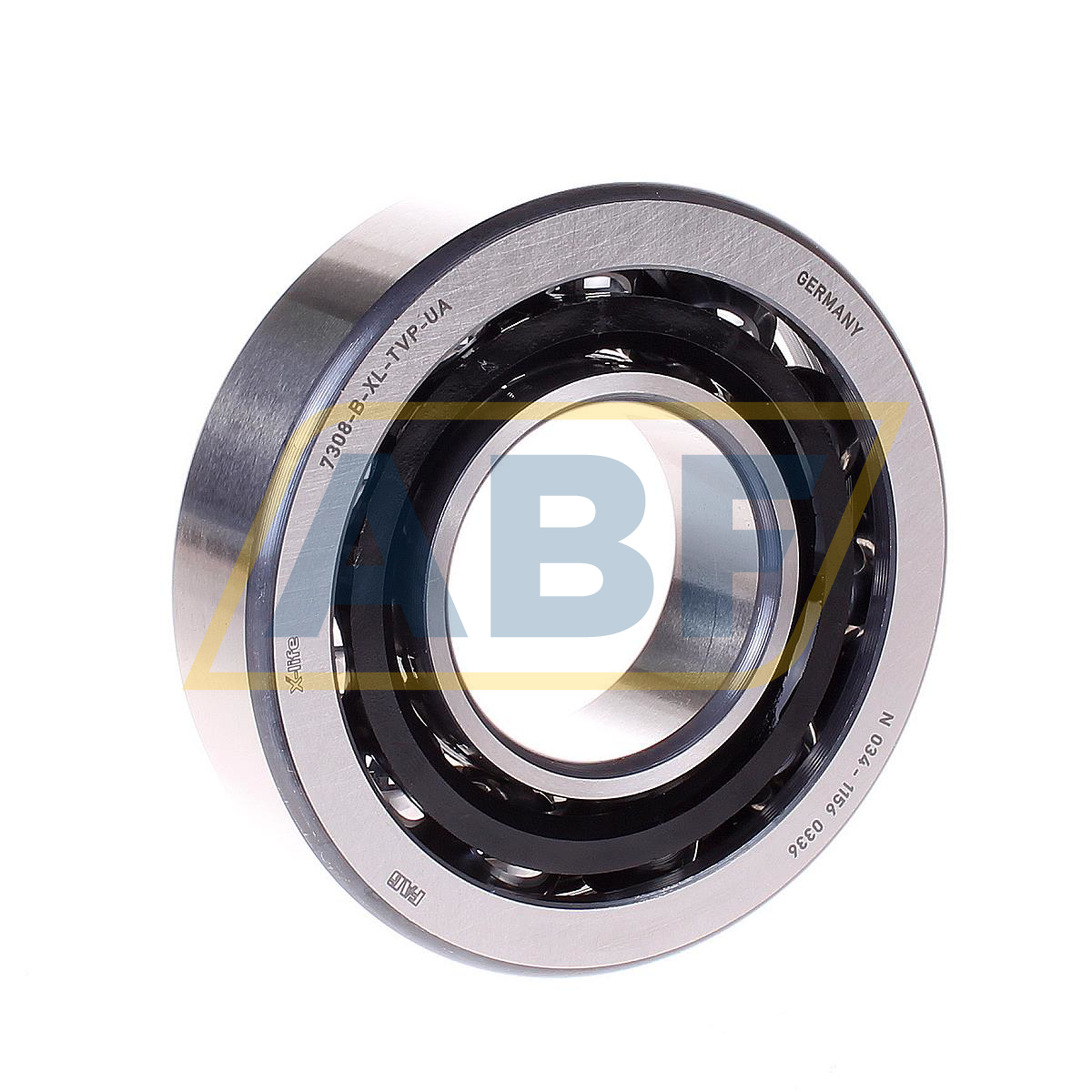

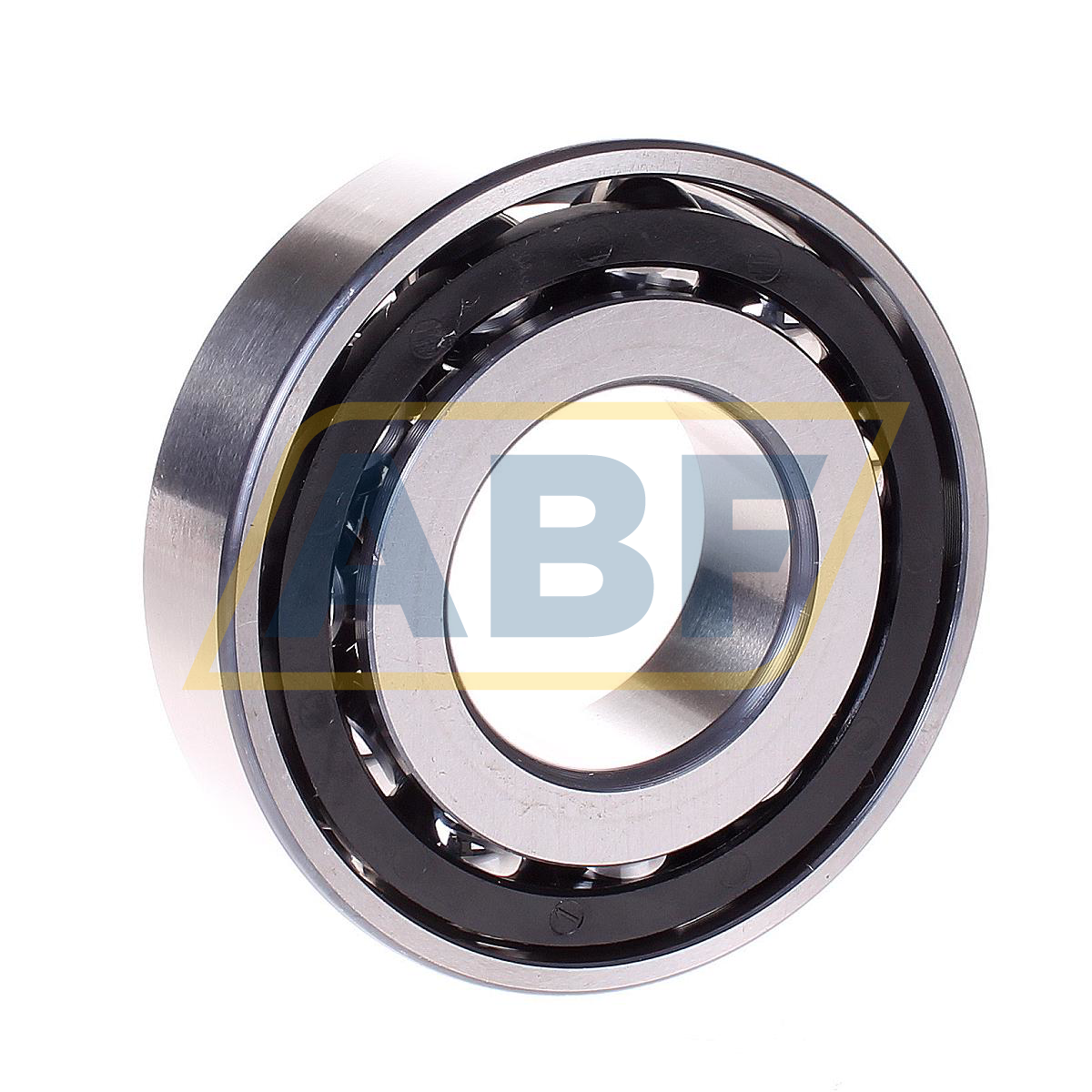

The 7308-B-XL-TVP-UA FAG is a single row angular contact ball bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact ball bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.
The 7308-B-XL-TVP-UA FAG is an X-life bearing. X-life bearings with their special internal construction provide greater performance than normal angular contact ball bearings. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and higher speeds are possible. Finally, X-life bearings have a longer maintenance interval than normal angular contact ball bearings.
The 7308-B-XL-TVP-UA FAG is a universal angular contact ball bearing. Universal angular contact ball bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. A pair of UA bearings in an X or O arrangement has a small axial clearance.
