Specifications

• Availability 42 pcs
• Brand FAG

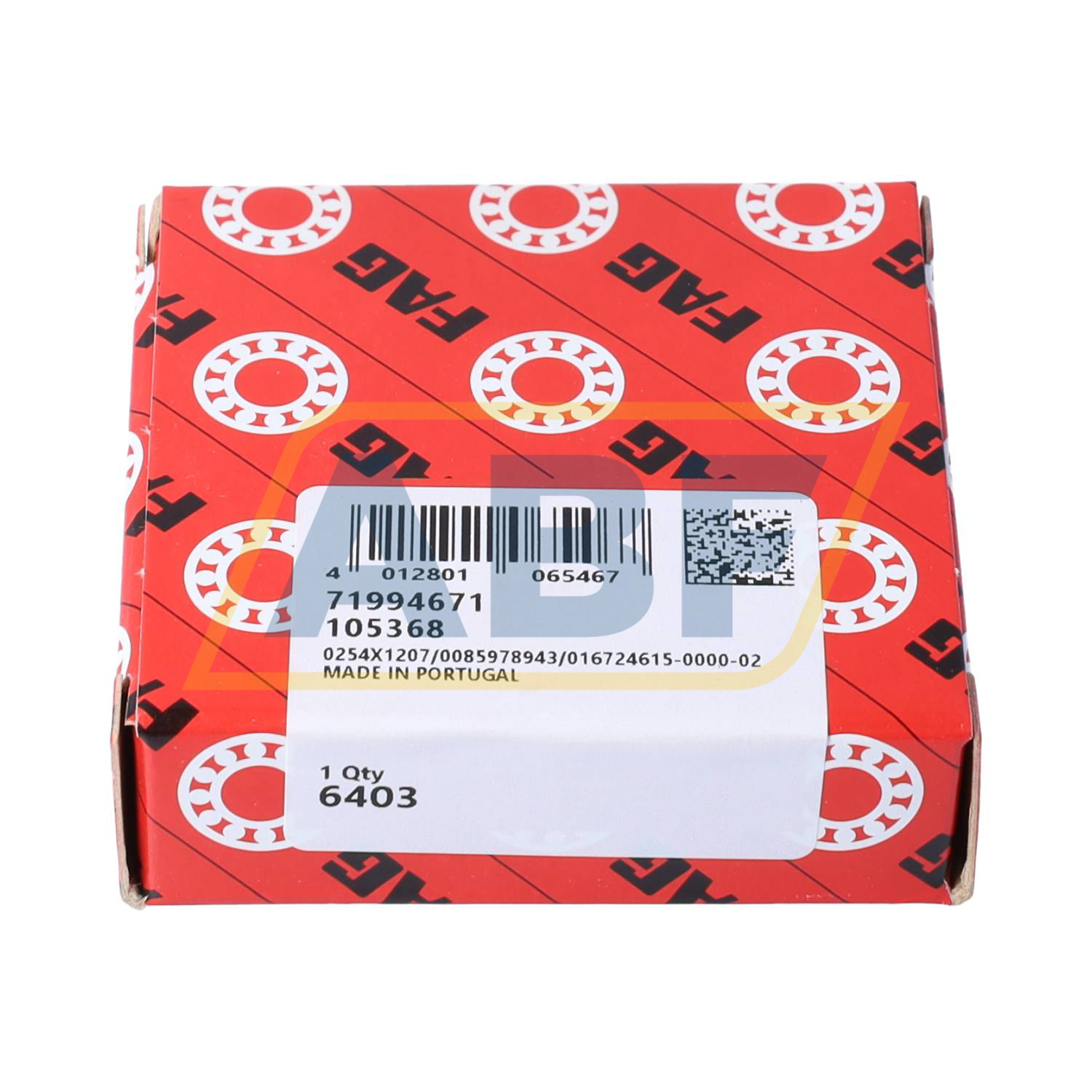

• Item Number 6403 FAG
• Manufacturer Part Number 0167246150000
• EAN 4012801065467
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 17
• Outer (D) MM 62
• Width (B) MM 17
• Inner (d) Inch 0.6693
• Outer (D) Inch 2.4409
• Width (B) Inch 0.6693
• Weight (kg) 0.27

Product Properties

• Bore C - Cylindrical Bore
• Seal No Seal
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 17
• Radial Static Load Rating C0r (N) 11500
• Radial Dynamic Load Rating Cr (N) 23800
• Basic static load rating, radial (C 0r) "11500.0000"
• Limiting speed (n G) 16200
• Reference speed (n ϑr) 11600
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearings 64, main dimensions to DIN 625-1
