Specifications

• Availability 5 pcs
• Brand FAG

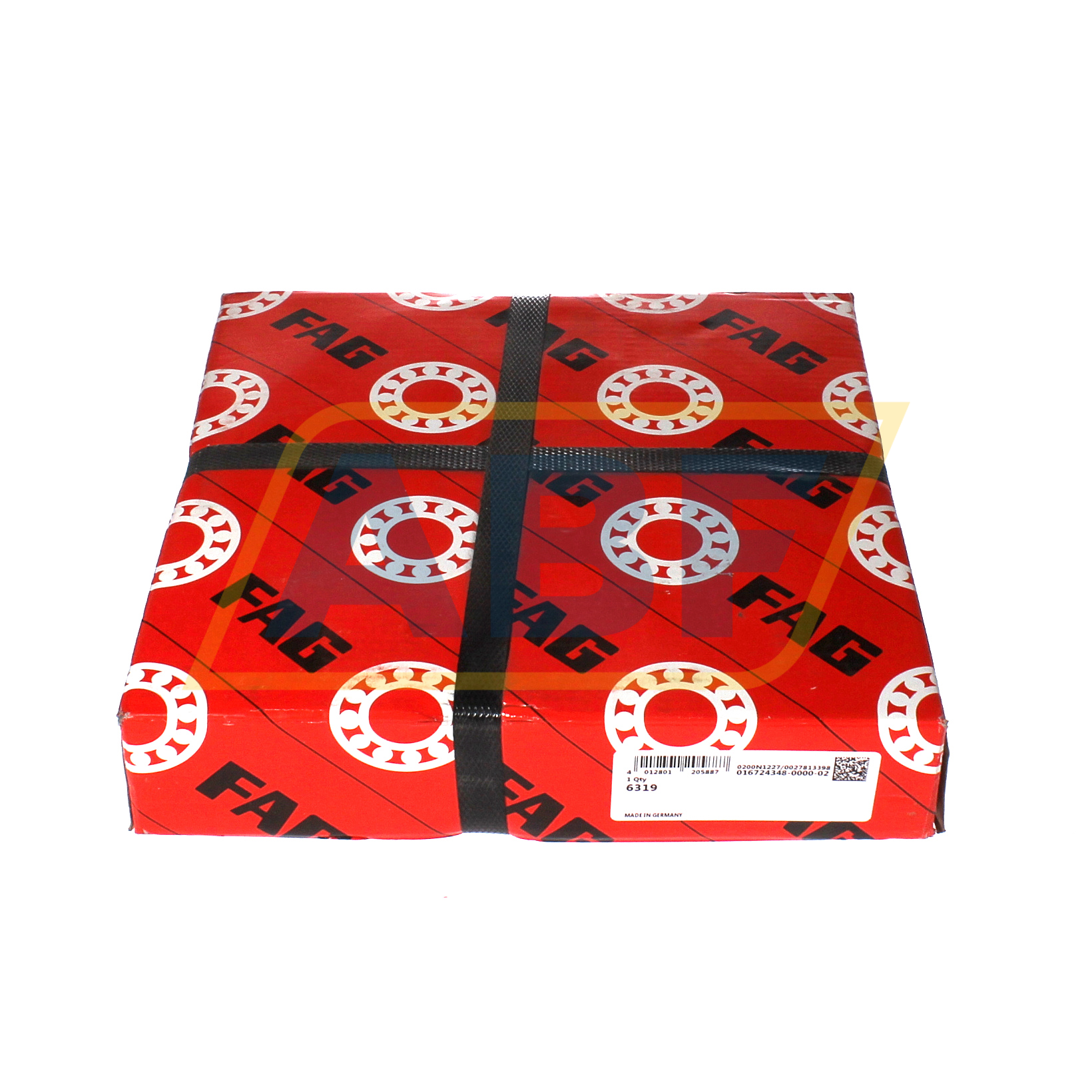

• Item Number 6319 FAG
• Manufacturer Part Number 0167243480000
• EAN 4012801205887
• Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

• Inner (d) MM 95
• Outer (D) MM 200
• Width (B) MM 45
• Inner (d) Inch 3.7402
• Outer (D) Inch 7.874
• Width (B) Inch 1.7717
• Weight (kg) 6.09

Product Properties

• Bore C - Cylindrical Bore
• Seal No Seal
• Cage Type S - Steel or Standard Cage
• External Modification No External Modification
• Radial Internal Play Cn Normal Internal Play
• Precision Standard Precision
• Lubrication Standard Lubrication
• Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
• Special Treatment No Special Treatment

Data from Schaeffler (medias)

• Width (b) mm 45
• Radial Static Load Rating C0r (N) 113000
• Radial Dynamic Load Rating Cr (N) 154000
• Basic static load rating, radial (C 0r) "113000.0000"
• Limiting speed (n G) 4600
• Reference speed (n ϑr) 4950
• ECLASS number 23-05-08-01
• ECLASS2 number 23-05-08-01
• Medias description Deep groove ball bearings 63, main dimensions to DIN 625-1
