6309/C3 SKF

Open Higher (internal) clearance 45x100x25mm

4 pcs in stock

  • This product is available from stock
  • Shipment until 18:00 CET on business days
  • Payment by invoice possible
  • Track your order with track & trace
Loading equivalents

Specifications

Weight and Dimensions

Product Properties

Suffix description

Product description

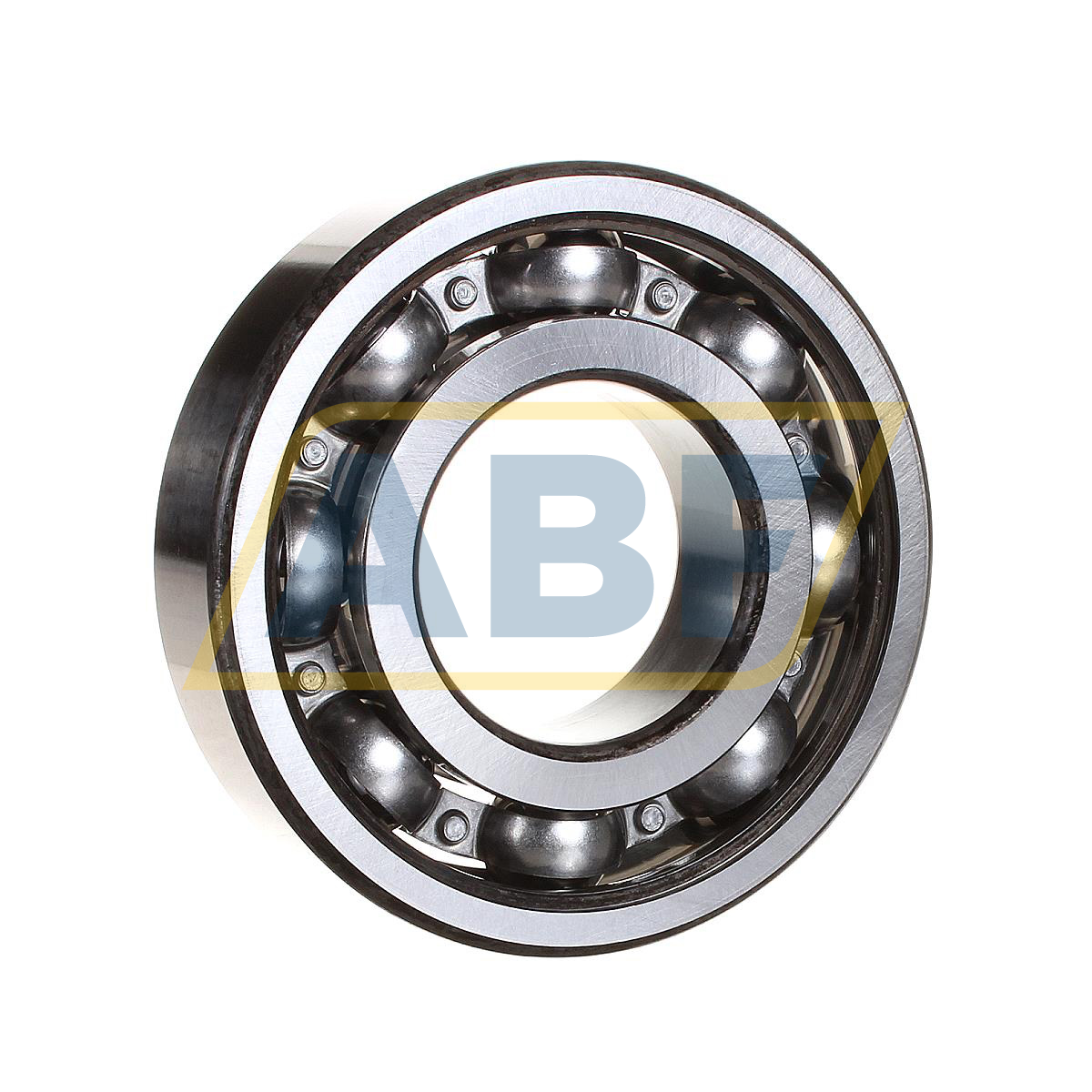

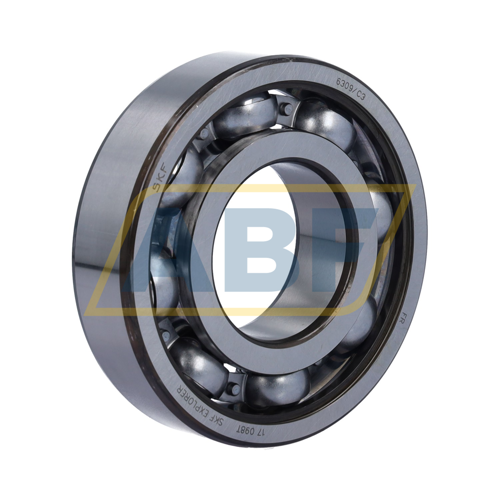

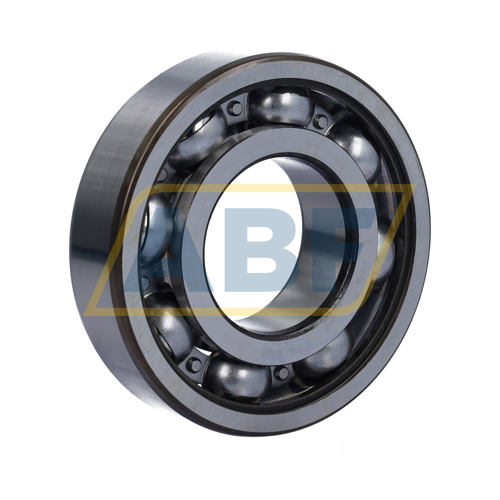

The 6309/C3 SKF is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6309/C3 SKF is suitable for high speeds and can operate with low noise.

The dimensions of the 6309/C3 SKF are: Bore (or inner diameter) 45mm, Outer diameter 100mm and Width (or thickness) 25mm.

6300 serie
The 6309/C3 SKF is part of the popular 6300 serie which contain extra light ball bearings and are perfect for limited space applications.The 6300 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Internal play
The C3 in the product name means that this bearing has a higher (internal) clearance than normal. The C3 clearance is most frequently used for this type of bearings. The extra internal clearance allows expansion due to high speeds or temperatures.

About SKF
SKF is the most renowned producer of bearings worldwide. SKF stands for outstanding quality and has been a forerunner in the production of bearings and related items for years. By buying a SKF bearing you are sure to buy top quality.
