Loading equivalents
Specifications
Availability22 pcs
BrandSKF

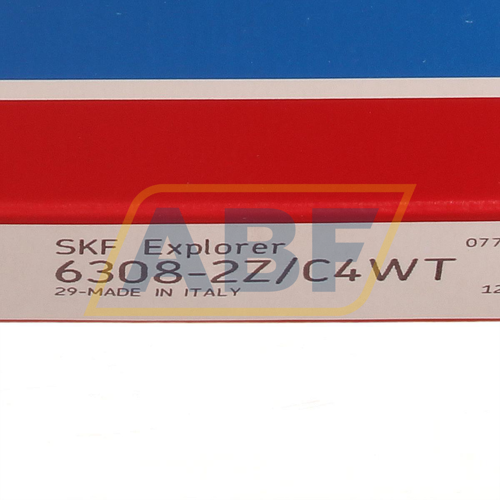

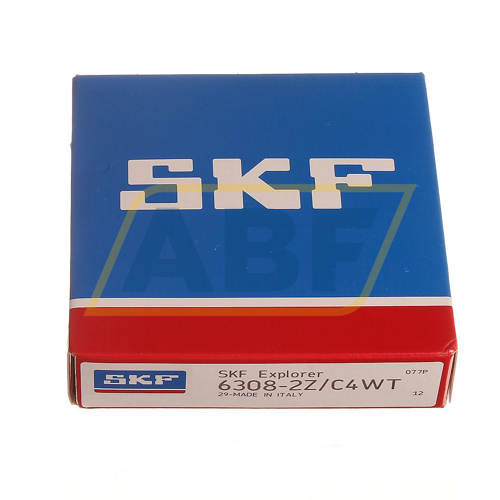

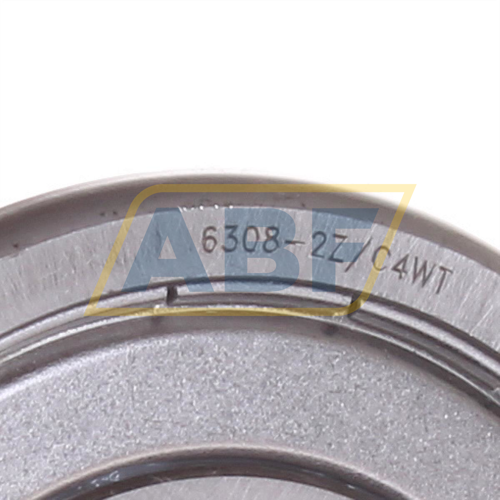

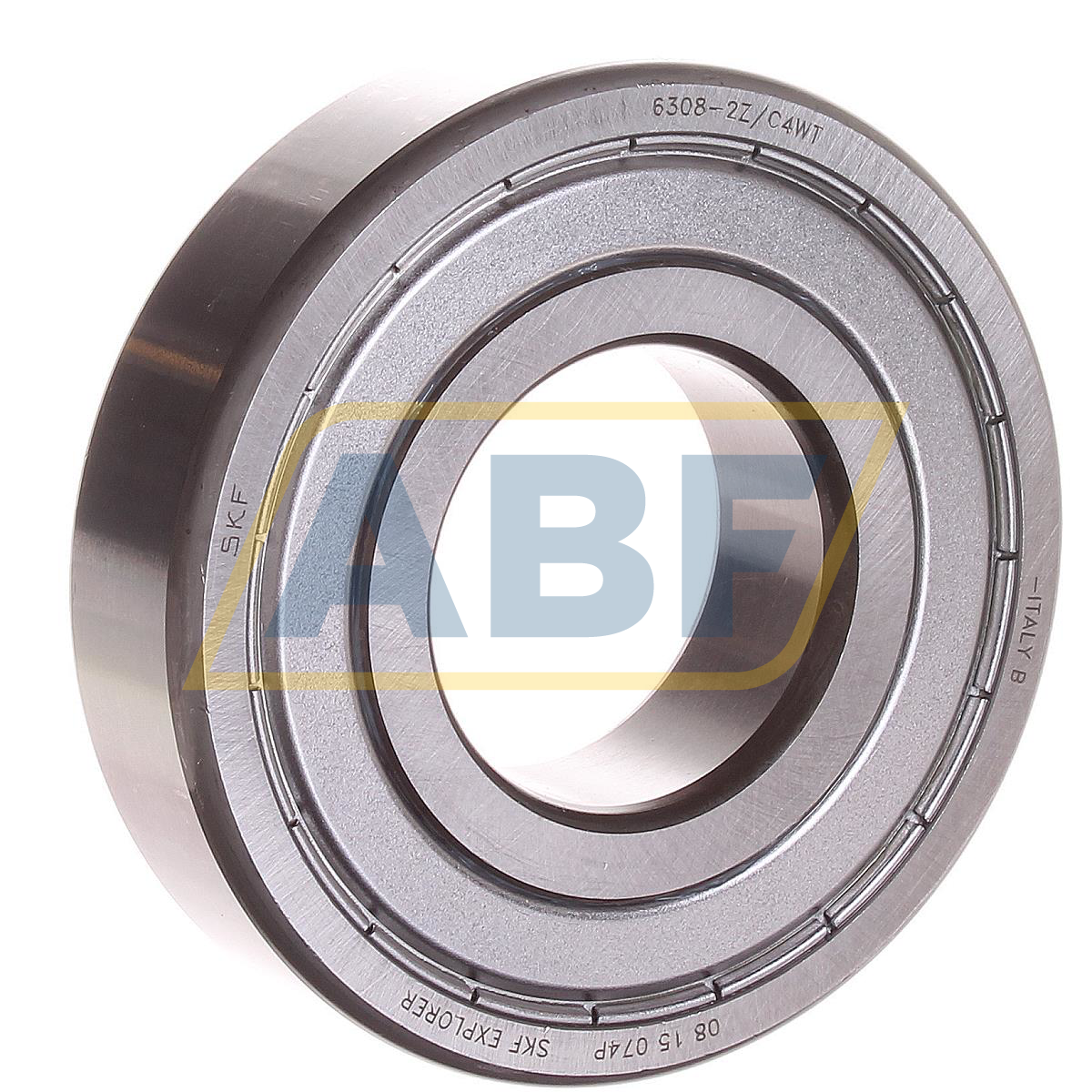

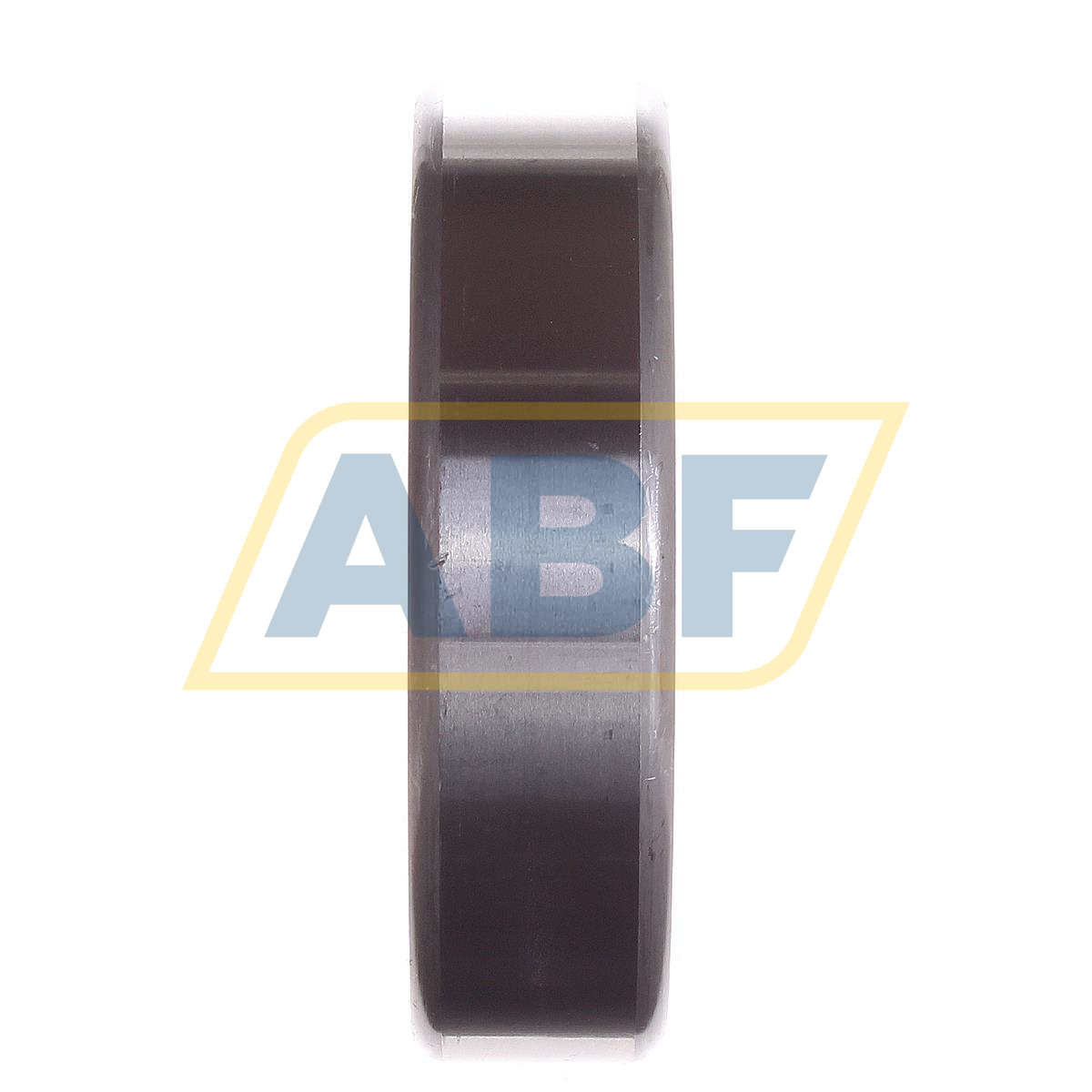

Item Number6308-2Z/C4WT SKF
Also known as
6308-2Z/C4
6308-2Z-C4
6308ZZ C4
EAN7316571628134
CategoryDeep Groove Ball Bearings Single Row
Weight and Dimensions
Inner (d) MM
40
Outer (D) MM
90
Width (B) MM
23
Inner (d) Inch
1.5748
Outer (D) Inch
3.5433
Width (B) Inch
0.9055
Weight (kg)
0.643
Product Properties
Bore
C - Cylindrical Bore
Seal
ZZ/2Z - Steel Seal on Two Sides
Cage Type
S - Steel or Standard Cage
External Modification
No External Modification
Radial Internal Play
C4 Internal Play (Higher than C3)
Precision
Standard Precision
Lubrication
High Temperature Grease
Heat Stabilization
No Heat Stabilization - Temperatures up to 120 °C
Special Treatment
No Special Treatment
Suffix description
2ZShield Of Pressed Sheet Steel On Both Sides Of The Bearing
C4Bearing Internal Clearance Greater Than C3
WTGrease Fill For Low As Well As High Temperature e.g. Range -40 ~ 160°C. WT Or A Two-Figure Number Following WT Identifies The Actual Grease. An Additional Letter Or Letter/ Figure Combination As Mentioned Under “HT” Identifies Filling Degrees Other Than Standard
